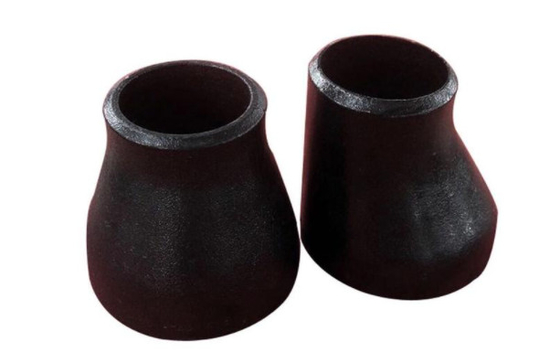

Reducer Concentric, Diam:10"x4" ,Sch: S-10S/S-10S ASME B16.9 ASTM A403-SMLS Gr. WP316L(UNS S31603)..
|
Reducer Concentric, Diam:10"x4" ,Sch: S-10S/S-10S ASME B16.9 ASTM A403-SMLS Gr. WP316L(UNS S31603).
| |
|
ISO 9001 cerfiticate for special steel fittings |
| 1 |
Product: |
Forged socket welding/weld SW NPT threaded/screwed pipe fittings, |
| 90deg / 45deg elbow, tee ,cross, cap,reducer, |
full / half / reducing coupling, swage , union, (hex square round head) plug,
hex head / flush bushing, reducing/reducer inserts, boss, bull plug |
| Weldolet sockolet threadolet elbolet, flangolet latrolet, sweepolet,nipolet, coupolet, |
| 2 |
size: |
1/8''~4'' |
| 3 |
Class: |
3000LBS 6000LBS 9000LBS |
| 3 |
Standard: |
1. ASME B16.11 Forged Fittings,Socket Welding and Threaded elbow tee cross cap
coupling half-coupling square/hex/round head plug, hex head/flush bushing |
| 2. MSS SP-83 Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| 3. MSS SP-79 Socket Welding Reducer Inserts |
| 4. MSS SP-95 Swage(d) Nippl es and Bull Plugs |
| 5. MSS SP-97 forged weldolet sockolet threadolet |
| 4 |
Material: |
Stainless / duplex stainless ; |
| nickel alloy monel inconel incoloy hastelloy nimonic |
| 5 |
Stainless: |
304 304L 316 316L 317 317L 321 321H 316ti 347 347H 310S 309S 310 309 |
ASME SA-182 ASTM A182 F304, F304L, F316, F316L, F309H, F310, F310H,
ASTM A182 F317, F317L,F321, F321H, F347, F347H, F310MOLN, F316ti |
| 6 |
Duplex stainless: |
astm a182 F51 F53 F44 F55 F60 F61 F62 F56 F58 F904L F310MoLn F20; |
| Duplex 2205/UNS S31803/1.4462; duiplex 2507/UNS S32750/1.4410; |
| UNS S32760/1.4501; 904L/UNS N08904/1.4539 |
| 254SMO/UNS S31254/1.4547; 725LN/310Moln/UNS S31050/1.4466 |
| UNS S32205; alloy 255/UNS S32550; alloy 6xn/AL-6XN/AL6XN/UNS N08367/1.4529; |
| 316Lmod/1.4435; |
| 7 |
Lead time: |
10~30 days according to qty |
| 8 |
Packing : |
Plywood cases or wooden box |
| 9 |
Usage: |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| 10 |
Exported countries: |
United States, Germany, Saudi Arabia, South Korea,etc. |
| 11 |
Test: |
In house and the 3rd party to test (SGS/TUV/BV etc) |
| 12 |
Advantages: |
Excellent quality and in-time delivery |
| 14 |
Other products: |
1. ASME B16.9 Butt welding/weld BW pipe fittings 90deg/45deg elbow equal/reducing
tee
concentric/eccentric reducer
equal/reducing cross cap lap joint stub ends 180deg return bend lateral tee
|
|
2. ASME B16.5 WN welding neck SO slip on welding Blind SW socket welding
threaded lapped flange
|
| 3. MSS SP-97 weldolet sockolet threadolet |
|
4. ASME B16.48 spectacle blind / blank flange, figure-8 blank, Paddle blank and
paddle spacer
|
|
brief introduction
The big and small heads whose center is in a straight line are called concentric big and small heads. The commonly used forming process is reduced diameter pressing, expanded diameter pressing or reduced diameter plus expanded diameter pressing. Stamping can also be used for reducing pipes of some specifications.
distribution characteristics
(1) The bending moment caused by the area pressure difference between the large and small ends of concentric reducer under the action of internal pressure causes the relative opening of the large end and the relative contraction of the small end;
(2) Under the action of internal pressure, the circumferential stress on the inner surface of the large end on the eccentric side and the outer surface of the middle part on the eccentric side of the eccentric reducer is the largest.
Corrosion resistance
316L is widely used in the chemical industry because of its excellent corrosion resistance. 316L is also a derivative steel of 18-8 austenitic stainless steel, with 2 ~ 3% Mo added. On the basis of 316L, many steel grades are also derived. For example, 316Ti is derived after adding a small amount of Ti, 316N is derived after adding a small amount of N, and 317L is derived by increasing the content of Ni and mo.
Most of the existing 316L on the market are produced according to American standards. In consideration of cost, steel mills generally limit the Ni content of products to the lower limit as far as possible. The American standard stipulates that the Ni content of 316L is 10 ~ 14%, and the Japanese standard stipulates that the Ni content of 316L is 12 ~ 15%. According to the minimum standard, there is a difference of 2% in Ni content between American Standard and Japanese standard, which is reflected in the price. Therefore, when purchasing 316L products, customers still need to see whether the products refer to ASTM or JIS standards.
The Mo content of 316L makes the steel have excellent corrosion resistance and can be ely applied to the environment containing halogen ions such as Cl -. Since 316L is mainly used for its chemical properties, steel mills have slightly lower requirements for surface inspection of 316L (compared with 304), and customers with higher surface requirements should strengthen surface inspection.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
