Product Details:
|
| Material: | Alloy 200 | Connection: | Socket Welding |
|---|---|---|---|
| Technics: | Forged,welded | Head Code: | Round |
| Application: | Connect Pipes,gas,Oil,Water,Industry | Standard: | DIN,ANSI,BS,ASTM,BSP |
| Size: | Customized Size,1-6',1/8"~2",1/2"~48",1/8 |

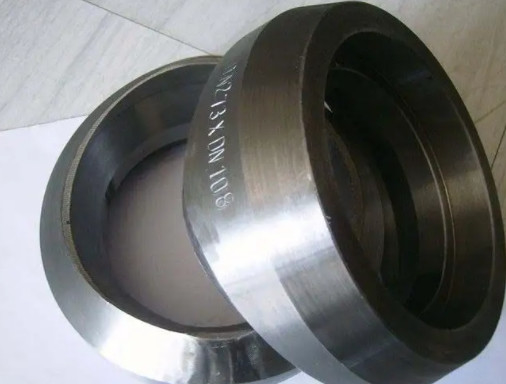

Socket Welding OLET ASTM/UNS Alloy 200 Forged Pipe Fittings 12"x4" Class 3000
|
Product Name: Socket Welding OLET ASTM/UNS Alloy 200 Forged Pipe Fittings 12"x4" Class 3000 |
| 1 | Product: | Forged socket welding/weld SW NPT threaded/screwed pipe fittings, |
| 90deg / 45deg elbow, tee ,cross, cap,reducer, | ||
|
full / half / reducing coupling, swage , union, (hex square round head) plug, |
||
| Weldolet sockolet threadolet elbolet, flangolet latrolet, sweepolet,nipolet, coupolet, | ||
| 2 | size: | 1/8''~4'' |
| 3 | Class: | 3000LBS 6000LBS 9000LBS |
| 3 | Standard: |
1. ASME B16.11 Forged Fittings,Socket Welding and Threaded elbow tee cross cap |
| 2. MSS SP-83 Class 3000 Steel Pipe Unions, Socket-Welding and Threaded | ||
| 3. MSS SP-79 Socket Welding Reducer Inserts | ||
| 4. MSS SP-95 Swage(d) Nippl es and Bull Plugs | ||
| 5. MSS SP-97 forged weldolet sockolet threadolet | ||
| 4 | Material: | nickel alloy monel inconel incoloy hastelloy nimonic |
| 5 | Nickel alloy: | ASTM B564 , ASME SB564, |
| nickel 200 201 UNS N02200 N02201 | ||
| alloy 20 31 20cb3 6xn 901 UNS N08020 N08031 N08367 | ||
| monel alloy 400 k500 k-500 UNS N04400 N055000 | ||
|
inconel alloy 600 625 718 601 x750 x-750 UNS N06600 N06601 N06625 |
||
| incoloy alloy 800 800h 800ht 825 925 25-6mo UNS N08800 N08810 N08811 N08825 | ||
|
hastelloy alloy B B-2 B-3 C-4 C-22 C-276 X C-2000 UNS N10665 N10675 N10276 |
||
| 6 | Lead time: | 15-30 working days according to qty |
| 7 | Packing : | Plywood cases or wooden box |
| 8 | Usage: | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| 9 | Exported countries: | United States, Germany, Saudi Arabia, South Korea,etc. |
| 10 | Test: | In house and the 3rd party to test (SGS/TUV/BV etc) |
| 11 | Advantages: | Excellent quality and in-time delivery |
| 12 | Other products: |
1. ASME B16.9 Butt welding/weld BW pipe fittings 90deg/45deg elbow equal/reducing |
|
2. ASME B16.5 WN welding neck SO slip on welding Blind SW socket welding |
||
| 3. MSS SP-97 weldolet sockolet threadolet | ||
|
4. ASME B16.48 spectacle blind / blank flange, figure-8 blank, Paddle blank and |
Introduction:
The utility model relates to a socket welding elbow branch pipe seat, which is characterized in that the socket welding elbow branch pipe seat comprises an elbow (1), a branch pipe (4) and a branch pipe seat (3). The root inner hole of the branch pipe seat (3) is a conical hole, the end socket is a straight hole, a hole is opened at the outer arc of the elbow (1), and the root inner hole of the branch pipe seat (3) is aligned and welded with the opening of the elbow (1); The branch pipe (4) is inserted into the socket of the branch pipe seat (3) for socket welding connection
