Product Details:
|
| Material: | Nickel 201 | Connection: | Butt Welding |
|---|---|---|---|
| Technics: | Forged,welded | Head Code: | Round |
| Application: | Connect Pipes,gas,Oil,Water,Industry | Standard: | DIN,ANSI,BS,ASTM,BSP |

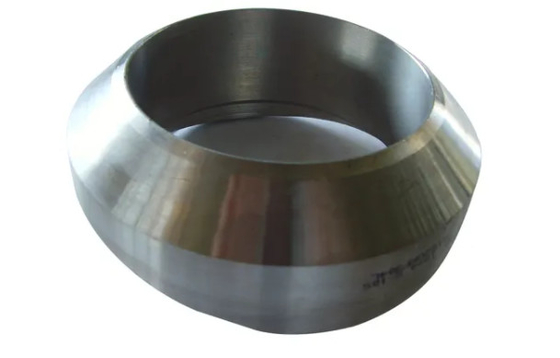

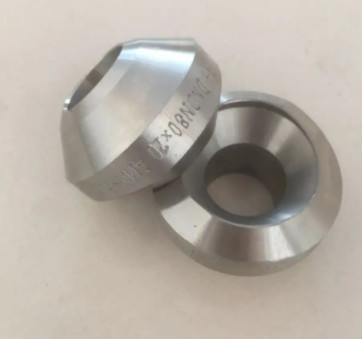

Butt Weldolet Nickel 201 ASTM/UNS N02201 Forged Pipe Fittings 12"x4"
|
Product Name:Butt Weldolet Nickel 201 ASTM/UNS N02201 Forged Pipe Fittings 12"x4" |
| 1 | Product: | Forged socket welding/weld SW NPT threaded/screwed pipe fittings, |
| 90deg / 45deg elbow, tee ,cross, cap,reducer, | ||
|
full / half / reducing coupling, swage , union, (hex square round head) plug, |
||
| Weldolet sockolet threadolet elbolet, flangolet latrolet, sweepolet,nipolet, coupolet, | ||
| 2 | size: | 1/8''~4'' |
| 3 | Class: | 3000LBS 6000LBS 9000LBS |
| 3 | Standard: |
1. ASME B16.11 Forged Fittings,Socket Welding and Threaded elbow tee cross cap |
| 2. MSS SP-83 Class 3000 Steel Pipe Unions, Socket-Welding and Threaded | ||
| 3. MSS SP-79 Socket Welding Reducer Inserts | ||
| 4. MSS SP-95 Swage(d) Nippl es and Bull Plugs | ||
| 5. MSS SP-97 forged weldolet sockolet threadolet | ||
| 4 | Material: | nickel alloy monel inconel incoloy hastelloy nimonic |
| 5 | Nickel alloy: | ASTM B564 , ASME SB564, |
| nickel 200 201 UNS N02200 N02201 | ||
| alloy 20 31 20cb3 6xn 901 UNS N08020 N08031 N08367 | ||
| monel alloy 400 k500 k-500 UNS N04400 N055000 | ||
|
inconel alloy 600 625 718 601 x750 x-750 UNS N06600 N06601 N06625 |
||
| incoloy alloy 800 800h 800ht 825 925 25-6mo UNS N08800 N08810 N08811 N08825 | ||
|
hastelloy alloy B B-2 B-3 C-4 C-22 C-276 X C-2000 UNS N10665 N10675 N10276 |
||
| 6 | Lead time: | 15-30 working days according to qty |
| 7 | Packing : | Plywood cases or wooden box |
| 8 | Usage: | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| 9 | Exported countries: | United States, Germany, Saudi Arabia, South Korea,etc. |
| 10 | Test: | In house and the 3rd party to test (SGS/TUV/BV etc) |
| 11 | Advantages: | Excellent quality and in-time delivery |
| 12 | Other products: |
1. ASME B16.9 Butt welding/weld BW pipe fittings 90deg/45deg elbow equal/reducing |
|
2. ASME B16.5 WN welding neck SO slip on welding Blind SW socket welding |
||
| 3. MSS SP-97 weldolet sockolet threadolet | ||
|
4. ASME B16.48 spectacle blind / blank flange, figure-8 blank, Paddle blank and |
The utility model relates to a butt welding 45 ° branch pipe seat, which is used for butt welding connection of pipe branches from main pipe openings in industrial metal pipes. The utility model comprises a main pipe (1), a branch pipe (4) and a 45 ° branch pipe seat (3). The root inner hole of the 45 ° branch pipe seat (3) is a conical hole, which is opened on the outer circular surface of the main pipe (1), and the root inner hole of the 45 ° branch pipe seat is aligned and welded with the opening of the main pipe (1); The end of the branch pipe of the 45 ° branch pipe seat (3) is butt welded with the branch pipe (4). By adopting the utility model, the 45 ° branch pipe seat for butt welding does not need to be processed and manufactured on site, and there is no need to make or purchase additional reinforcing rings, which is conducive to the safe operation of the pipeline.
About us:
Why choose us!
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3. We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing safely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.
Tel: 13524668060
