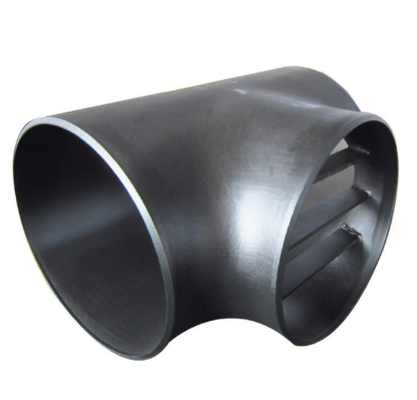

Alloy Steel Pipe ASTM A860 WPHY52 Barred Tee ASTM B16.9 4'' X 4'' SCH80

ASTM B16.9 A403 WP316L 6'' X 4'' Sch40 Stainless Steel Pipe Barred Tee

Barred Tee Grades:

·Stainless Steel: ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
·Carbon Steel: ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
·Alloy Steel: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

Barred Tee drawings are available , or we could manufacturer according to your specific drawings .

Tee vs Barred Tee

• Tee is a type of fittings that allows fluid to flow on it's main pipe and branch out. The branch can be designed equally
• the same size as the main pipe (known as Equal Tee), or smaller size than the main pipe (known as Reducing Tee).

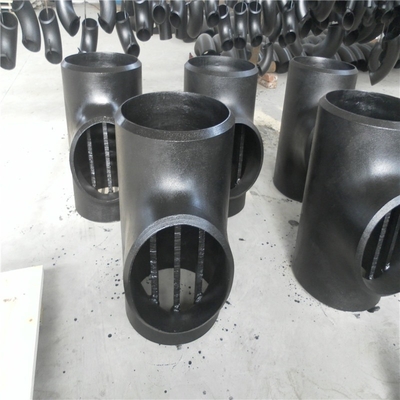

• Barred Tee is a special type of Tee that base from a normal tee (can be either equal tee or reducing tee) that at later stage, will be added with bar plates inside the branch outlet (From inside it looks like a steel cage) to restrict the pig from flowing from the header pipe into the branch pipes.

Design Codes and Standards for Tee and Barred Tee

1. The international standard dimension of tee will be covered under ASME B16.9 or MSS-SP 75 (for DN16 and above). To know more about Tee Connections.
2. There is no international standard dimension for the barred tee. It is custom made using the ASME B16.9/ MSS-SP 75 tee as a base. However, many develop there barred tee based on Shell DEP 31.40.10.13-Gen or ISO 15590-2 standard.
3. This design can be a guideline to assess Vendor’s design.

Design Considerations for Barred Tee

• The barred tee will be used when there is a requirement for pigging. Thus, many of it's applications can be found in the pipeline or in the subsea field.
• The bar plates that welded internally at the branch are to avoid the pig from changing direction or getting stuck at the branch outlet.
• The design of the bar plates must be in sufficient quantity, thickness and adequately spaced to ensure the smoothness for the pig to run through the main pipe, and at the same time not affecting the flow that was meant to flow through the branch. Normal practice is to ensure that the opening in the branch pipeline after guided bars is not more than 40% of the main pipeline area.
• The size of the bars in the branch connection has to be small enough not to restrict the flow but large enough to sustain the pressure of the flow.
• To ensure the smoothness, the bar plates have to be a grind to suit the branch curvature. Any sharp edges, spatters and burs are required to be removed. This smoothness of the pigging process is important to protect the sensor of the pig from damage.
• Refer to Shell DEP 31.40.10.13-Gen Figure 4 above; the quantity of the bar plates start with two (2) pieces and increase as the ID of the branch increase.
• The bar plates ideally will be equally spaced.
• For larger tee (size 14 inches and above), there will be a bridge plate in the middle to support the bar stiffness when getting hit by the pig.
• The material of the bar plates commonly used the same as the tee material for weldability.
• Standard practice is to avoid welding of guide bars directly on the high-stress concentrated areas of the extrusion neck. Bar ends must be machined to fit the branch.
• Weld Repairs on Parent metal is prohibited.

Difference Between Tee and Barred Tee

So from the above discussion, we can summarize the following differences:

Details are listed below:
