Alloy 600 ASTM/UNSP N06600 Barred Tee OD 6 " WT 3mm




 hollow tube or shel

Barred Tee

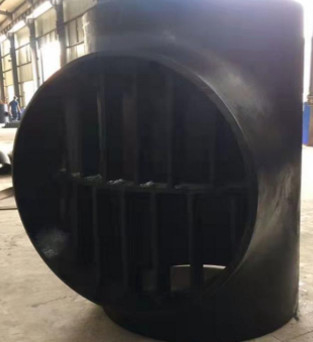

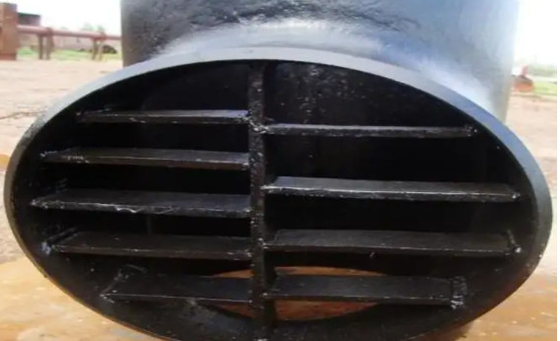

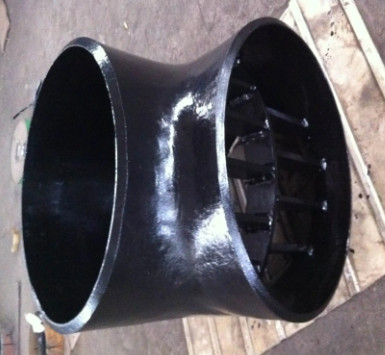

A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection.

Barred tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch ely


Barred tees are pipe fittings with two outlets, one at 90 ° to the connection to the main line that has tiny holes. Barred tees can either be extruded or fabricated and are used to connect two pieces of pipe or fittings. Barred tee is used in pipelines that are pigged.

Common types of pipe tee

A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes.

• Equre tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
• Reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
• Barred tee is used in pipelines that are pigged.
• Lateral tee has a 45 degree branch from a pipeline.
• Pipe cross is a fitting that used in the place where four pipes meet with the same diameter include:
  • Reducing cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
  • Equal cross in the place where four pipes meet with the same diameter.
• Forged Tee Fittings are pipe fittings that be formed mainly by forging


   Inconel 600


  Application field editing and broadcasting

1. Thermowells in corrosive atmosphere

2. Vinyl chloride monomer production: resistance to chlorine, hydrogen chloride, oxidation and carbonization corrosion

3. Oxidation and conversion of uranium to hexafluoride: resistance to hydrogen fluoride corrosion

4. The production and use of corrosive alkali metals, especially the environment in which sulfides are used

5. Preparation of titanium dioxide by chlorine gas

6. Production of organic or inorganic chlorides and fluorides: resistance to chlorine and fluorine corrosion

7. Nuclear reactor

8. Curved neck bottles and parts in heat treatment furnace, especially in carbonization and nitriding atmosphere

9. Alloy 600 is recommended to be used in the application of catalytic regenerator in petrochemical production above 700 ℃ to obtain a long service life
