Product Details:
|
| Certification: | API,CE,BSI,ISO9001-2000,ISO-9001 | Application: | Structure Pipe,Oil Pipe,Gas Pipe,Bridge,Drill Pipe |
|---|---|---|---|
| Usage: | Oil Gas Sewage Transport,Construction Structure | Special Pipe: | Thick Wall Pipe,precision Seamless Steel Tube |
| Size: | Customized Size,1-6',1/8"~2",1/2"~48",1/8 | Packing: | Wooden Case,Pallet/plywood Case |
| Material: | Alloy | Name: | Pipe Fitting |
Alloy 600 ASTM/UNSP N06600 Barred Tee OD 13 " WT 4mm
| Fence Tee PIPE FITTINGS DETAILS | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight ) | |
| 2.Tee(Reducing) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 15 to 30working days after receiving the deposit. | ||
hollow tube or shel

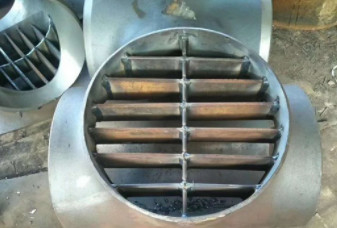

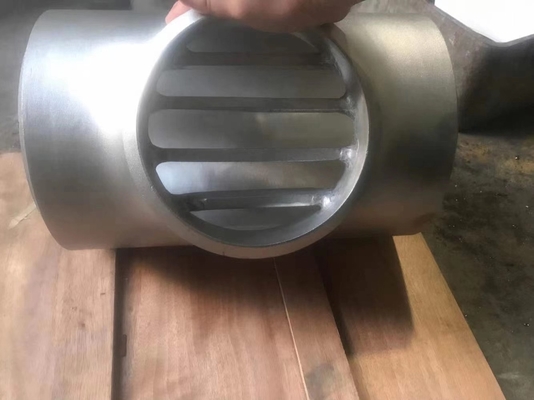

A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection.
Barred tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch safely
Difference between tee and barred tee
| Parameter | Tee | Barred Tee |
| Definition | Standard Pipe Fitting | A special type of piping component |
| Manufacturing | Generally by Extrusion or forging | Mostly Fabricated |
| Use | Used in both piping and pipeline engineering | used in pipeline engineering near the pig launcher/receiver |
| Design Code / Standard | ASME B 16.9/MSS SP 75 | Shell DEP 31.40.10.13-Gen or ISO 15590-2 |
| Production Quantity | Large scale in bulk | Select small quantities (custom made) |
| Cost | Cheaper | Costlier than normal Te |
Application field editing and broadcasting
1. Thermowells in corrosive atmosphere
2. Vinyl chloride monomer production: resistance to chlorine, hydrogen chloride, oxidation and carbonization corrosion
3. Oxidation and conversion of uranium to hexafluoride: resistance to hydrogen fluoride corrosion
4. The production and use of corrosive alkali metals, especially the environment in which sulfides are used
5. Preparation of titanium dioxide by chlorine gas
6. Production of organic or inorganic chlorides and fluorides: resistance to chlorine and fluorine corrosion
7. Nuclear reactor
8. Curved neck bottles and parts in heat treatment furnace, especially in carbonization and nitriding atmosphere
9. Alloy 600 is recommended to be used in the application of catalytic regenerator in petrochemical production above 700 ℃ to obtain a long service life
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
