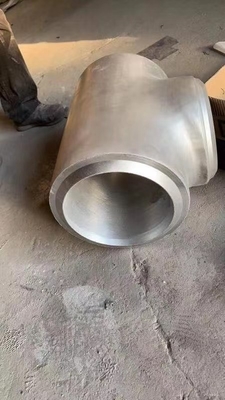

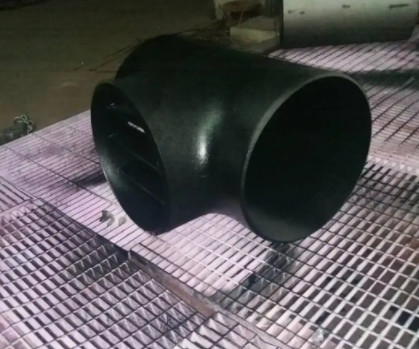

Monel 400 ASTM/UNSP N04400 Fence Tee OD 8 " WT 4mm
| Fence Tee PIPE FITTINGS DETAILS |
| MATERIAL |
Carbon Steel : |
| |
ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, |
| |
DIN St37, St45.8, St52.4,St.35.8,St.35.8. |
| |
Stainless Steel: |
| |
1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti |
| |
00Cr17Ni14Mo2 304 304L 316 316L |
| |
Alloy Steel: |
| |
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, |
| |
A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 |
| STANDARD |
ASTM / JIS / DIN / BS / GB/GOST |
| MODEL |
1.Tee(Straight ) |
| |
2.Tee(Reducing) |
| TYPE |
Seam Or Seamless |
| SURFACE |
Black Paint, Anti Rust Oil, Hot-Dipped Galvanize |
| WALL THICKNESS |
SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, |
| |
SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM |
| SIZE |
1/2"-48"(Dn15-Dn1200) |
| CONNECTION |
Welding |
| SHAPE |
Equal, Reducing |
| CERTIFICATE |
ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| APPLICATION |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| RELATED PRODUCTS |
1. Carbon steel nipples and sockets |
2. Flanges |
| |
3. Malleable iron pipe fittings |
4. Pipes |
| |
5. High-pressure fittings |
6. Valves |
| |
7. P.T.F.E .thread seal tape |
8. Brass fittings |
| |
9. Ductile iron pipe fittings |
10. Copper fittings |
| |
11. Sanitary fittings, etc,. |
12. Grooved fittings |
| Customers’ drawings or designs are available. |
| PACKAGE |
1> 1/2" - 2" in cartons. |
| |
2>Above 2" in wooden cases. |
| |
Big size is workable by pallets. |
| DELIVERY DETAILS |
According to the quantities and specifications of each order. |
| |
Normal delivery time is from 15 to 30working days after receiving the deposit. |
hollow tube or shel
About:
The utility model relates to a three-way joint used for a combined fence, which solves the technical deficiency caused by the three-way joint being connected with a connecting piece through an internal thread or adopting a mutual plug-in structure. The adopted technical scheme is that the three-way joint comprises a joint body, and the two elbow ends of the joint body are respectively provided with plug sleeves for connection, The side of the connector body is provided with a vertical plug-in sleeve for connection, and the outer contour of the plug-in sleeve and the vertical plug-in sleeve are uniformly provided with equal height protrusions respectively. The utility model has the advantages of simple structure, accurate positioning, beautiful appearance after the tee joint is connected with the connector, and is especially suitable for decorative guardrails and indoor stair guardrails with high requirements..
The welding procedure of MONEL400 is similar to the alloy used for austenitic stainless steel. Neither preheating nor post welding heat treatment. The joint design is similar to that of austenitic stainless steel, but there are two exceptions: first, whether it is necessary to adapt to the slow characteristics of molten weld metal, the joint design needs to be open enough to allow full welding filler line to fill the joint; The second is the high thermal conductivity and purity of the material, which makes the weld penetration lower than that of austenitic stainless steel
heat treatment
The annealing cycle carried out by MONEL400 is usually operated for a short time in the temperature range of 760 to 980 ° C. its purpose is to soften the material after the forming operation while maintaining a relatively fine grain size.
Annealing should be carried out in an atmosphere as free of sulfide as possible, because sulfur will make the material brittle at high temperature and prolong the exposure time within the annealing temperature range.
Low temperature stress relief can be performed on cold deformed materials by heating to about 300 ° C1 for 3 hours
A large part of MONEL400 is put into use without final heat treatment. The purpose is to increase the strength of the structure.
Packaging & Shipping
| Packaging: |
In wooded cases , pallets or according to clients' requirements |
| Shipping: |
Tianjin port, Shanghai port and the other main ports in China |
