Product Details:
|
| Material: | N04400 | Certification: | API,CE,BSI,ISO9001-2000,ISO-9001 |
|---|---|---|---|
| Application: | Structure Pipe,Oil Pipe,Gas Pipe,Bridge,Drill Pipe | Usage: | Oil Gas Sewage Transport,Construction Structure |
| Special Pipe: | Thick Wall Pipe,precision Seamless Steel Tube | Size: | Customized Size,1-6',1/8"~2",1/2"~48",1/8 |
| Connection: | Welding | Packing: | Wooden Case,Pallet/plywood Case |

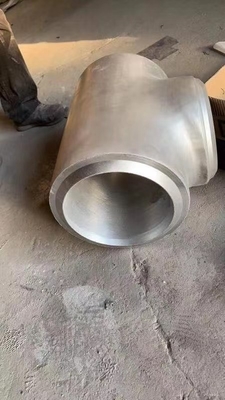

Monel 400 ASTM/UNSP N04400 Fence Tee OD 6 " WT 3mm
| Fence Tee PIPE FITTINGS DETAILS | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight ) | |
| 2.Tee(Reducing) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 15 to 30working days after receiving the deposit. | ||
hollow tube or shel
About:

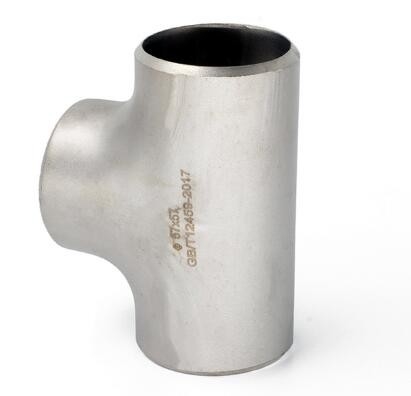

Tee is also called pipe fitting tee or tee fitting, tee joint, etc. It is mainly used to change the direction of the fluid and is used at the branch pipe of the main pipeline. It can be classified by pipe diameter. It is generally made of carbon steel, alloy steel, stainless steel and other materials. Carbon steel tee is also a kind of pipe fittings, generally there are two kinds. Equal diameter tee with the same diameter at both ends and different diameter between branch pipe and other two is called reducing tee. Tees are pipe fittings and pipe connectors. It is also called pipe fitting tee or tee fitting. Stainless steel equal diameter tee and tee joint are used at the branch pipe of the main pipeline.
Tee has three openings, namely one inlet and two outlets; Or a chemical pipe fitting with two inlets and one outlet, which has T-shape and Y-shape, equal diameter pipe orifice and reducing pipe orifice, and is used for the collection of three identical or different pipelines
Welding and processing technology of MONEL400
Formability
MONEL400 alloy has good cold forming characteristics and is usually related to chromium nickel stainless steel. The work hardening rate of MONEL400 alloy is lower than that of 301 or 304 stainless steel. It can be used for multiple stretch forming, and relatively large deformation occurs between annealing.
Weldability
MONEL400 alloy can be welded through a variety of processes, including tungsten gas shielded arc and metal gas shielded arc. Monel body or enicu-7 welding wire and electrode can be used; Or manual arc welding and submerged arc welding; It can be welded with carbon steel and low alloy steel. When welding Monel 400 alloy, the fluidity of liquid metal is poor, and it is easy to dissolve O2, H2, N2 and other gases, resulting in pores. Therefore, in all these processes, the joint area must be thoroughly cleaned to avoid embrittlement from the source of lubricant and paint tape, and the material must be free from oxidation for optimal welding
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
