Product Details:
|
| Material: | AISI/SATM 316L | Thickness: | Customized |
|---|---|---|---|
| Certification: | API,CE,BSI,ISO9001-2000,ISO-9001 | Standard: | API,ASTM,DIN,GB,BS |
| Application: | Structure Pipe,Oil Pipe,Gas Pipe,Bridge,Drill Pipe | Length: | 5-12M Or As Your Requirement |

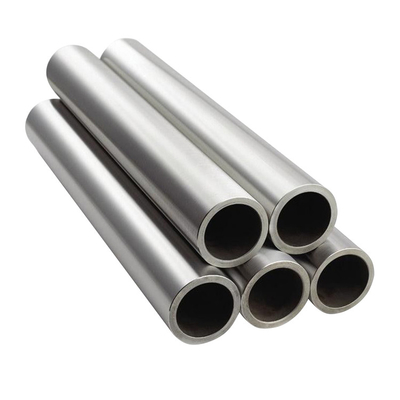

Stainless Steel AISI/SATM 316L Seamless Pipes Outer Diameter 16 mm Wall Thickness 4mm
| Production Name | Stainless Steel AISI/SATM 316L Seamless Pipes Outer Diameter 16 mm Wall Thickness 4mm |
| Standard | ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| Size | 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness | Sch5~Sch160XXS |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Delivery time | 15-30 working days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
| The third party inspection: | BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
hollow tube or shel
Key Properties of 316L
Composition of 316L:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Table 2. Mechanical properties of 316L stainless steel.
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50 mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40 | 95 | 217 |
