Product Details:
|
| Product Type: | Stainless Steel Flange | Standard: | ASME B16.5 |
|---|---|---|---|
| Material Grade: | ASTM A182 | Size: | 1/2’’-60’’ |
| Material: | Stainless Steel | ||
| High Light: | ASTM A182 Alloy Steel Pipe Fittings,Stainless Steel WNRF Flanges,150lb WNRF Flanges |
||

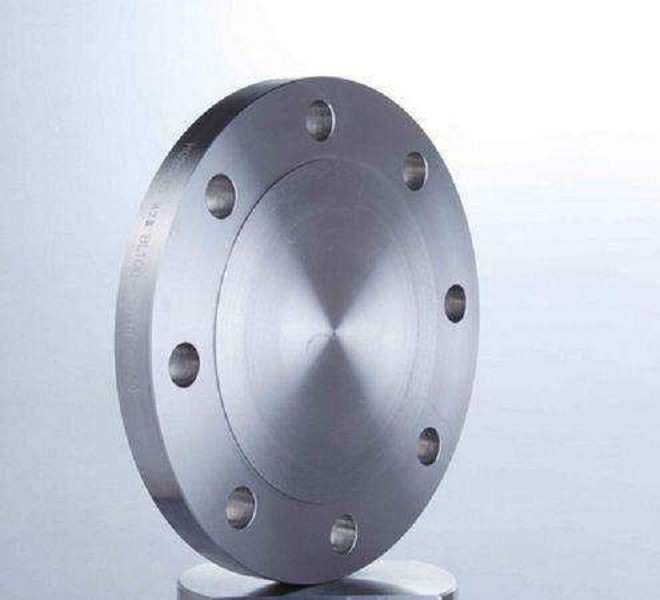

Steel Flanges STM A 182 Stainless Steel WNRF Flanges ASTM A 182
Flange, also known as Flange Flange plate or Flange.Flange is the shaft and shaft connected parts, used for the connection between the pipe end;Also useful in equipment inlet and outlet flange, used for the connection between two equipment, such as reducer flange.Flange connection or flange joint refers to a detachable connection made of flange, gasket and bolt which are connected to each other as a group of assembled sealing structures.
Pipeline flanges refer to the flanges for piping in pipeline devices and the import and export flanges of equipment when used in equipment.There are holes in the flange and bolts hold the two flanges together.Gasket seals between flanges.
Because the flange has good comprehensive performance, it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire, electric power, aerospace, shipbuilding and other basic engineering.
| flangeType | Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
