ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength

ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength
ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength

Large Image :  ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/TUV
Model Number: Reducer
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: ply-wooden case
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 PC/Month

ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength

Description
Material: Alloy Steel Pipe Fittings Shape: Round
Connection: Forged Type: Reducer
Application: Connect Pipes, Gas, Oil, Water, Industry Surface Treatment: Hot Galvanized, Oil, Polish180.320.420, Sand Blasting, Sand Blast
Color: Or As Required, Oil, Can Be Customed, Black Or Not, Black
High Light:

ANSI B16.9 Steel Pipe Fittings

,

SCH10 Weld Steel Pipe Fittings

,

Monel 400 Weld Steel Pipe Fittings

Monel Alloy 400 UNS N04400 Alloy Steel Pipe Fittings 2*11/2'' CONC. REDUCER ANSI B SCH10



Alloy 400 can easily be welded by gas-tungsten arc, gas metal arc or shielded metal arc processes using appropriate filler metals. There is no need for post weld heat treatment, however, thorough cleaning after welding is critical for optimum corrosion resistance, otherwise there is the risk of contamination and embrittlement.

Finished fabrications can be produced to a wide range of mechanical properties when proper control of the amount of hot or cold working and the selection of appropriate thermal treatments is done.

Like most other nickel alloys, Monel 400 is typically tough to machine and will work harden. However, excellent results can e obtained if you make the correct choices for tooling and machining.



Typical room temperature Tensile Properties of Annealed Material



Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation (%) Hardness (HRB)
Rod & Bar Annealed 75-90 25-50 60-35 60-80
Rod & Bar Cold-Drawn Stress Relieved 84-120 55-100 40-22 85-20 HRC
Plate Annealed 70-85 28-50 50-35 60-76
Sheet Annealed 70-85 30-45 45-35 65-80
Tube & Pipe Seamless Annealed 70-85 25-45 50-35 75 max *

* The ranges shown are composites for various product sizes and therefore are not suitable for specification purposes. Hardness values are suitable for specification purposes provided tensile properties are not also specified.



Chemical Composition, %

C Mn S Si Ni Cu Fe
.30 max 2.00 max .024 max .50 max 63.0 min 28.0-34.0 2.50 max

Corrosion Resistant Monel 400

Alloy 400 is virtually immune to chloride ion stress corrosion cracking in typical environments. Generally, its corrosion resistance is very good in reducing environments, but poor in oxidizing conditions. It is not useful in oxidizing acids, such as nitric acid and nitrous. Nevertheless, it is resistant to most alkalis, salts, waters, food products, organic substances and atmospheric conditions at normal and elevated temperatures.

This nickel alloy is attacked in sulfur-bearing gases above approximately 700° F and molten sulfur attacks the alloy at temperatures over approximately 500° F.

Monel 400 offers about the same corrosion resistance as nickel but with higher maximum working pressures and temperatures and at a lower cost due to its superior ability to be machined.

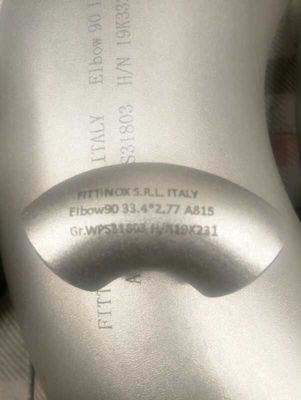

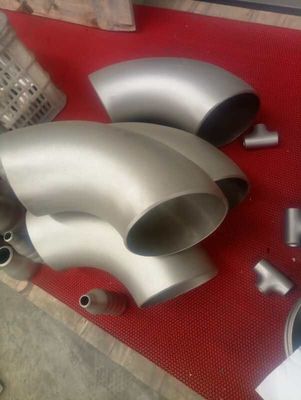

Nickel Alloy 90° Elbow Outlet:



ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Momel 400), UNS 8020 (Alloy 20 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)



Copper Alloy Steel 90° Elbow Outlet:



  • ASTM / ASME SB 111 UNS NO.C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500
  • ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Product Details:

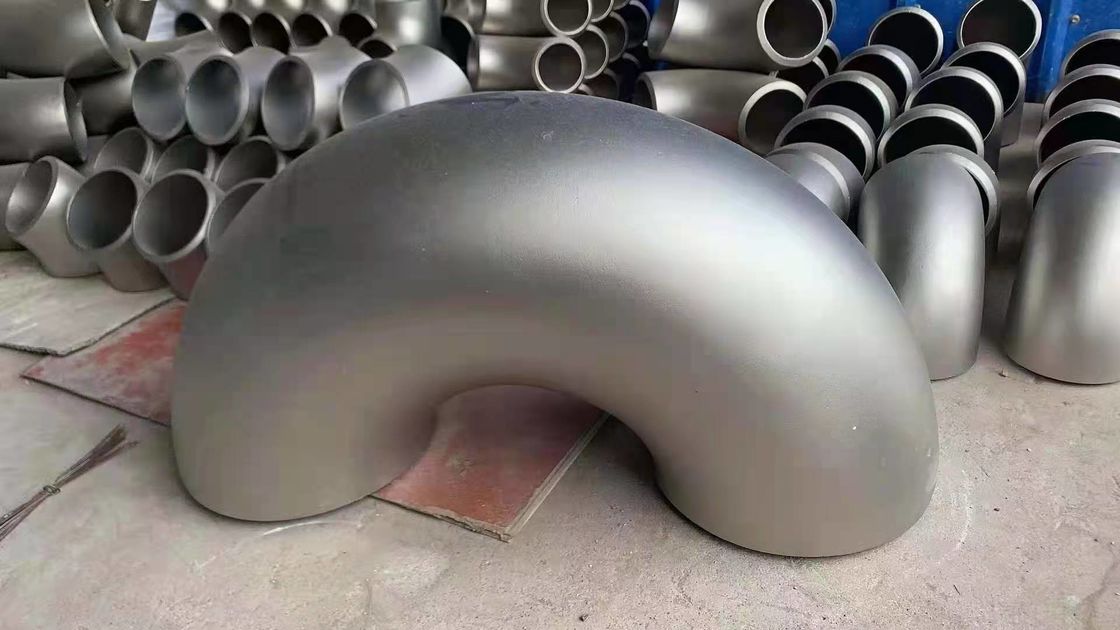

  • Types: Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
  • 90° Elbow Outlet Size: 1/2” NB TO 24” NB.
  • N6 pure nickel strip (UNS NO2200)

    Nickel 200 (UNS N02200/ w.r.2.4060 and 2.4066)

    Nickel 200 this alloy has the following characteristics:

    It is commercial pure nickel (99.6%).It has good mechanical properties and excellent resistance in many corrosive environments.Other useful features of the alloy include its magnetic properties, magnetostrictive properties, high thermal and electrical conductivity, low gas content and low evaporation pressure.Corrosion resistance makes it particularly useful in applications where purity is required for products such as food, synthetic fibres and caustic soda.It is also widely used in structural applications where corrosion resistance is the main consideration.Other USES include chemical transfer barrels, electrical and electronic components, aerospace and missile components.

    ANSI B16.9 SCH10 Weld Steel Pipe Fitting Monel 400 Good Mechanical Strength 0
