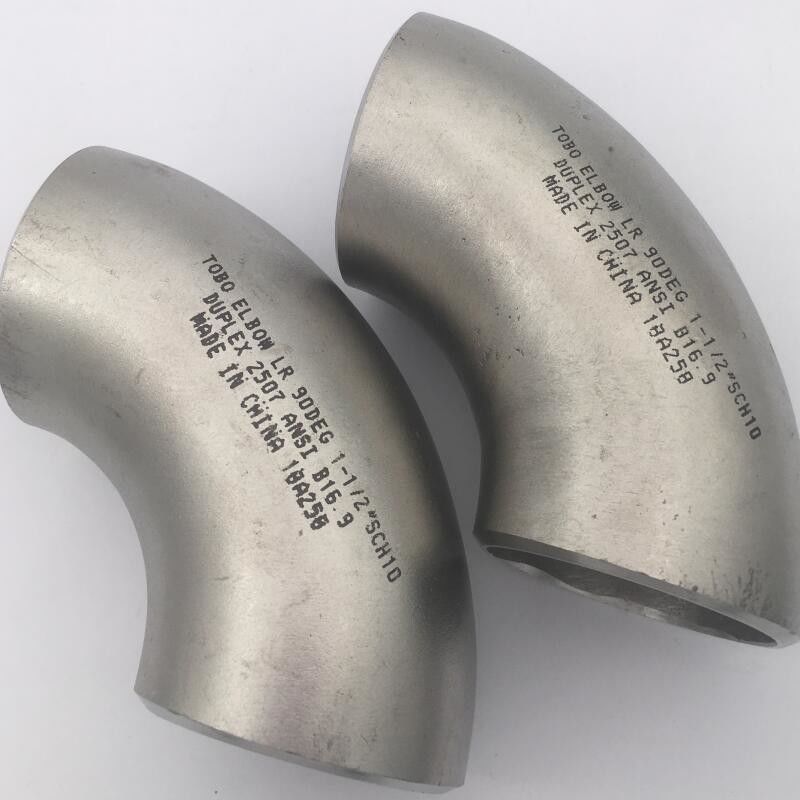

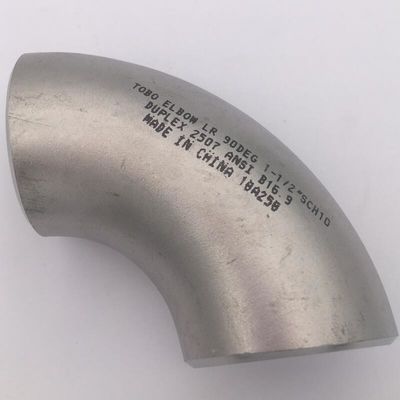

90d Elbow Butt Weling Fitting Super Stainless Steel F317ls32750

90D ELBOW BUTT WELING FITTING SUPER STAINLESS STEEL F317LS32750

1) Types: Elbow 900 , LR/SR, elbow ,Tee ,reducer,stub end

2) Types: ELBOW , Tee ,reducer,stub end
3) Wall thickness: Schedule 5 through XXS

4) Materials: Stainless steel super duplex UNS32750 ,UNS S32760

5) Standards: ANSI, DIN, JIS, ASME, ASTM, MSS and EN

6) Size: 1/2" ~ 48" (DN15mm ~ 1, 200mm)

Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings

Features: 2507 is a super duplex stainless steel with higher alloy content, thus making it superior to 2205 in corrosion resistance and strength. It has excellent resistance to uniform, pitting, crevice corrosion and chloride stress corrosion cracking. In dilute sulfuric acid contaminated with chloride ions, 2507 has better corrosion resistance than 904L, which is specially designed to resist pure sulfuric acid. Because 2507’s low carbon content greatly lowers the risk of carbide precipitation at the grain boundaries during heat treatment, it is highly resistant to carbide-related intergranular corrosion. 2507 is not suitable for applications which require long exposure to temperatures above 300℃ because of the increased risk of a reduction in toughness. Its yield strength is about twice that of conventional austenitic stainless steels.

Applications: Chemical processing industry piping, vessels and heat exchangers; desalination plant seawater piping; oil and gas industry equipment; power plant flue gas desulfurization systems, scrubber systems and absorber towers; and chemical tankers.
