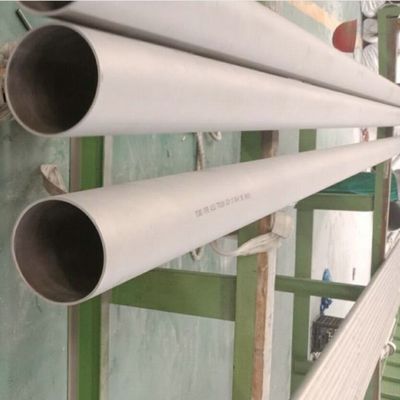

ASTM A790 Duplex Steel Gas Exploration Industrial Seamless Pipe

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1

Advanced capabilities for U-bent tubes:

1. Reliable bending machines
2. Precision bending dies
3. Eddy current test before bending
4. Bending up to 105’(32m) developed length
5. Electric resistance stress relief annealing after bending
6. Hydrostatic test after bending
7. OD and WT reduction Testing
8. Full bending radius and tube legs tolerance check
9. Stack-rack boxing

2) U Bend Tube Minimum tube wall thickness in the bend part (T min)T(min) ≥ (SW × (2×R + D))/( 2× (R+D)
where: SW is smallest wall thickness
D Nominal outside diameter
R radius

3) U Bend Tube Radius tolerance
1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm

4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis

U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm

U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request

Package:Standard export carton packing.

Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.

1. Are you trading company or manufacturer ?

We are manufacturer with over years experiences.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
