ASTM A105 Weldolet Forged Steel Fittings Class 3000

Name: ASTM A105 Weldolet Forged Steel Fittings Class 3000
Brand: TOBO STEEL GROUP CHINA
SKU: MSS SP 97 ANSI B16.11 ASME B16.9
Price: 249.10 USD
Availability: InStock

All Products

Nickel Alloy Pipe
(836)

Super Duplex Stainless Steel Pipe
(538)

Austenitic Stainless Steel Pipe
(140)

Coated Steel Pipe
(100)

Seamless Steel Pipe
(457)

Low Temperature Steel Pipe
(66)

Titanium Alloy Pipe
(144)

Aluminum Alloy Pipe
(101)

Copper Nickel Pipe
(315)

U Fin Tube
(73)

High Pressure Boiler Tube
(70)

Hot Dip Galvanized Tube
(55)

Alloy Steel Round Bar
(120)

Cold Rolled Steel Plate
(119)

Alloy Steel Flanges
(1011)

Alloy Steel Pipe Fittings
(2106)

Cast Acrylic Sheet
(157)

Best Products

Alloy C276 Pipe Fittings Nickel Alloy 90 Deg Long Radius Elbow ASME B 16.9

SCH10S Thickness Alloy Pipe Fittings Concentric Reducer Alloy 20

Connection Alloy Steel Pipe Fittings Seamless 90° Elbow C-276 3" SCH40 LR

Certification

Customer Reviews

In the latest vendor rating, TOBO won the excellent rating, it is good, will continue to cooperate.

—— Brazil---Aimee

ASTM A213 T9 Alloy steel pipe ,Stable quality , good price, excellent serive, TOBO GROUP is our trustworthy partner

—— Thailand ---Dave Mulroy

I'm Online Chat Now

ASTM A105 Weldolet Forged Steel Fittings Class 3000

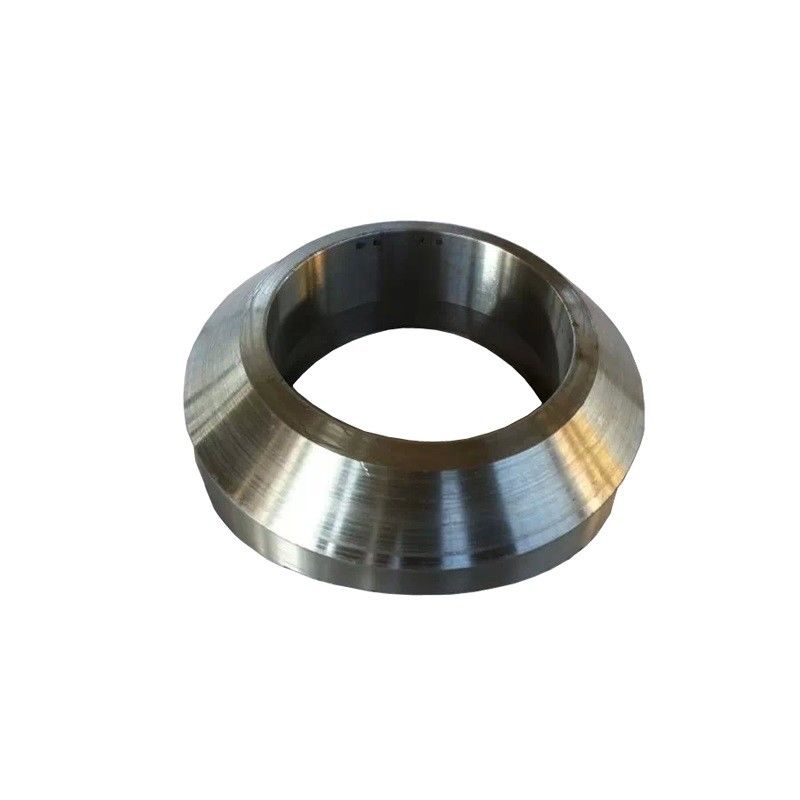

Large Image : ASTM A105 Weldolet Forged Steel Fittings Class 3000

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	MSS SP 97 ANSI B16.11 ASME B16.9

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negociation
Packaging Details:	Wooden case
Delivery Time:	15~20 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 pc per month

Contact Now

ASTM A105 Weldolet Forged Steel Fittings Class 3000

Description

Product Name:	Weldolet	Diameter:	1/8"-4"
Material:	Carcarbon Steel Stainless Steel Alloy Steel Special Alloy	Standard:	ASME B16.9
Type:	Threaded, Socket Weld	Pressure:	2000lbs 3000lbs 6000lbs
Highlight:	ASTM A105 Forged Steel Fittings , Weldolet Forged Steel Fittings , Class 3000 Forged Steel Fittings

ASTM A105 Mss Sp 97 Forged Steel Fittings 3000# Standard Weight Steel Weldolet

Run Pipe Size: 1/4"-36"

Branch Pipe Size: 1/8"-24"

Type: Weldolet, Threadolet, Socketolet

Pressure Rating: Class 3000 (Sch80), 6000 (Sch160), 9000(Sch.XXS)

Material: Carbon Steel, Stainless Steel, Alloy Steel

Standard: MSS SP-97

Forged Pipe Fittings
Type	Forged Threaded Pipe Fittings(NPT/BSPT/BSP), Forged Socket Welded Pipe Fittings
Specification	Elbow, Cross, Street Elbow, Tee, Coupling, Half Coupling, Reducing Coupling
Specification	Outlet, Cap, Bushing, Union, Hex Nipple, Hex Plug, Square Plug, Round Plug, Boss
Size	1/8"---4"
Pressure Rating	Threaded Fitting: 2000LB/3000LB/6000LB(Sch40, Sch80, Sch160)
Pressure Rating	Socket Welding: 3000LB/ 6000LB/9000LB(Sch80, Sch160, XXS )
Material	Carbon Steel: ASTM A105N, A350 LF2, A350 LF3
	Stainless Steel: ASTM A182 F304, F304L,F316, F316L, F321, F347, F310, F43, F44, F51 A276 S31803, S32750, A705 631, 632, A961, A484
	Alloy Steel: ASTM A694 F42, F46, F52, F56, F60, F65, F70 A182 F12, F11, F22, F5, F9, F91, F1, etc.
Standard	ASME/ANSI B16.11, B 1.20.1, MSS SP-79/83/95/97, JIS, B2316, GB/T 14626 etc.
Surface	Varnished, Galvanized, as per customer’s requirements.
Connection	Threaded(NPT/BSPT/BSP), Socket welded
Shape	Equal, Reducing
Applications	Petroleum, Gas, Power, Chemistry, Metallurgy, Shipbuilding, Urban Construction etc.
