1"-24" ASTM A105N STD MSS SP 97 threadolet sockolet weldolet

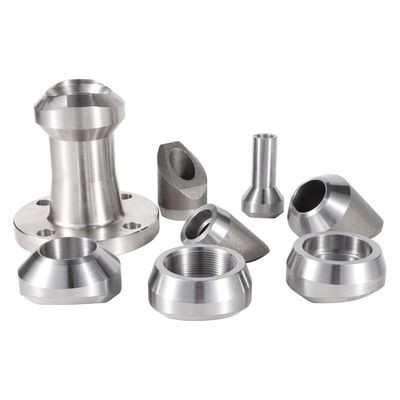

Large Image : 1"-24" ASTM A105N STD MSS SP 97 threadolet sockolet weldolet

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	316L

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negociation
Packaging Details:	Wooden case
Delivery Time:	15~20 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 pc per month

Contact Now

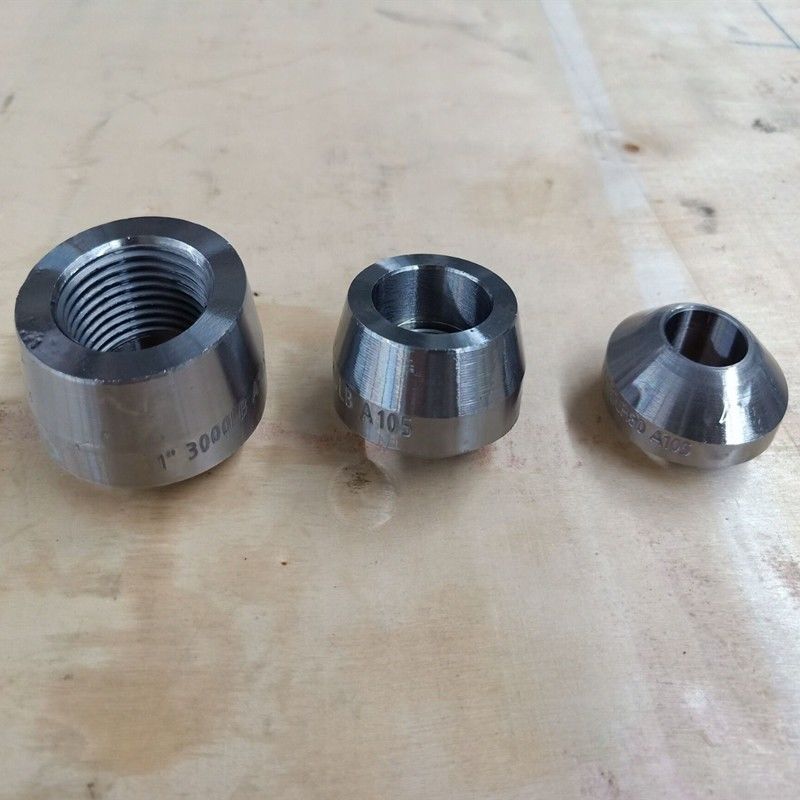

1"-24" ASTM A105N STD MSS SP 97 threadolet sockolet weldolet

Description

Product Name:	Weldolet	Diameter:	1"-24"
Material:	A105, A350LF2 , 304,304L	Standard:	ASME B16.9
Type:	Threaded, Socket Weld	Pressure:	2000#,3000#,6000#,9000#
Highlight:	Galvanized Alloy Steel Pipe Fittings , ANSI B16.5 Alloy Steel Pipe Fittings , Sanitary Alloy Steel Pipe Fittings

1"-24" ASTM A105N STD MSS SP 97 threadolet sockolet weldolet

Products information

Quick Details

Customized support:: OEM

Place of Origin:: China

Brand Name:: TOBO

Model Number:: 1"-24"

Technics:: Forged

Connection:: Welding

Shape:: Equal

Head Code:: ROUND

Pressure:: 2000#,3000#,6000#,9000#

Standard:: MSS SP 97

Name:: forged pipe fittings

Surface treatment:: polished, anti-rust oil

type:: threaded, socket weld

Material:: A105, A350LF2 , 304,304l,316,316, 321,347h,310s, s31803,2205, etc.

Process:: forged

MOQ:: 1 Piece

OEM:: Availble

Thread:: BSPP BSPT NPT

Specification

Type	weldolet, threadolet, sockolet, pipet, flangeolet,lateral pipet,elbo pipet, nipple pipet , bosset, etc.
Size	1/8"-4" , except weldolet, whose size can be up to 24"
Material	Carbon steel , stainless steel, Alloy steel, etc.
Standard	MSS SP 97

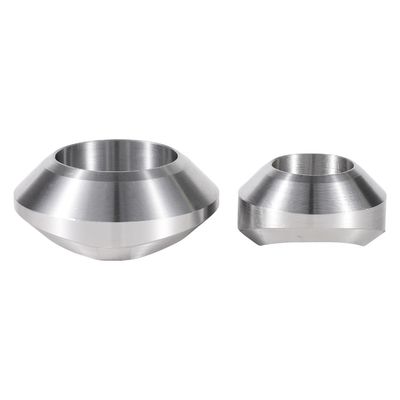

WELDOLET

Dimensions are in millimeters.
Outlet(DN)	Outlet(NPS)	A (Face of fitting to Crotch)
		Standard		Extra Strong		Schedule 160
		Reducing	Full	Reducing	Full	Reducing	Full
6	1/8	15.7	--	15.7	--	--	--
8	1/4	15.7	--	15.7	--	--	--
10	3/8	19.1	--	19.1	--	--	--
15	1/2	19.1	19.1	19.1	19.1	28.4	28.4
20	3/4	22.4	22.4	22.4	22.4	31.8	31.8
25	1	26.9	26.9	26.9	26.9	38.1	38.1
32	1 1/4	31.8	31.8	31.8	31.8	44.4	44.4
40	1 1/2	33.3	33.3	33.3	33.3	50.8	50.8
50	2	38.1	38.1	38.1	38.1	55.4	55.4
65	2 1/2	41.1	41.1	41.1	41.1	62.0	62.0
80	3	44.4	44.4	44.4	44.4	73.2	73.2
90	3 1/2	47.8	50.8	47.8	50.8	--	--
100	4	50.8	50.8	50.8	50.8	84.1	84.1
125	5	57.2	57.2	57.2	57.2	93.7	93.7
150	6	60.4	60.4	77.7	77.7	104.6	104.6
200	8	69.8	69.8	98.6	98.6
250	10	77.7	77.7	93.7	88.9
300	12	85.9	85.9	103.1	100.1
350	14	88.9	88.9	100.1	104.6
400	16	93.7	93.7	106.2	112.8
450	18	96.8	103.1	111.2	119.1
500	20	101.6	117.3	119.1	127.0
600	24	115.8	136.6	139.7	139.7
Tolerances: 6 -20 ±0.8 mm 25- 100 ±1.6 mm 125- 300 ±3.2 mm 350 - 600 ±4.8 mm

Detailed Product Description

Standard:	ASME B16.9	Material Grrade:	UNSS31803
Size:	1-48 Inch	Type:	Seamless Or Weld

1-48 Inch ASME B16.9 Butt Weld Ends Stainless Steel Butt Weld Pipe Fittings

Specifications

1. Stainless steel Stub end
2. sch5s-schxxs
3. ISO9001,ISO9000
4. Market:America,Africa,Middle East,Southeast of Asia

1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material

2. 100% Dimension & Visual Examination

3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test

4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)

5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)

6. Straightness Test (optional)

7. Roughness Test (optional)

8 .Intergranular Corrosion Test(optional)

9. Impact Test (optional)

10. Grain Size Determinations (optional)

NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION
