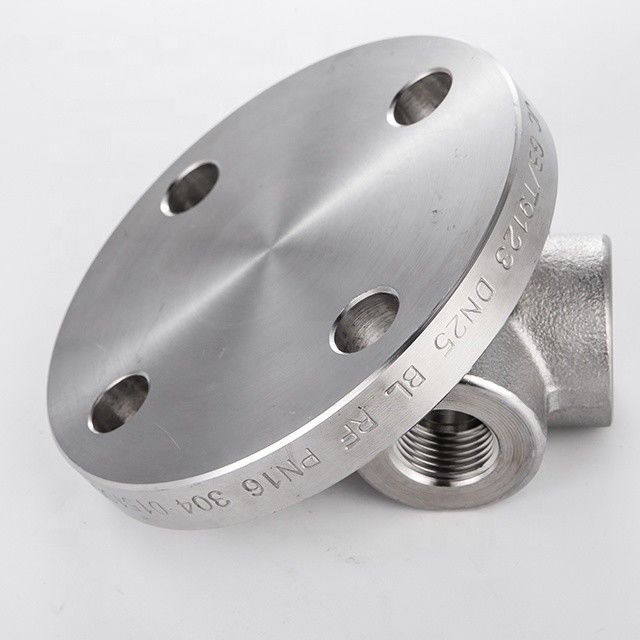

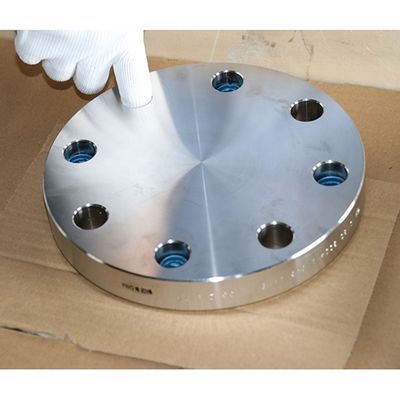

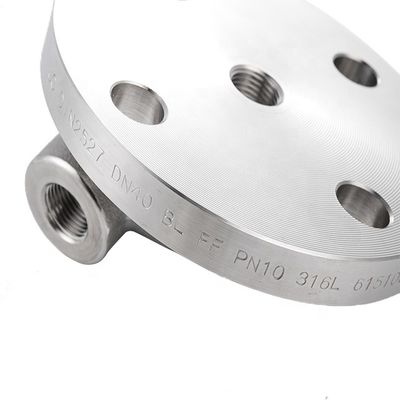

TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel

TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel
TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel

Large Image :  TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: TE-O12
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Regular shipping packaging or depends on customer's requirement
Delivery Time: 7-15 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 PC Per Month

TP304 Stainless Steel ANSI B16.5 BL Flange For Pressure Vessel

Description
Brand: TOBO Material: Stainless Steel
Pressure: 300LB Type: BL Flange
Standard: ASME B16.5 Size: 1/2"-48”
Delivery Detail: 7-15 Days Color: Silver Or As Required
Packing: Wooden Case Or As Customer's Request Certificate: CE/ISO/SGS
Application: Boiler And Pressure Vessel, Petroleum, Chemicals, Oil And Gas
High Light:

ANSI B16.5 BL Flange

,

TP304 BL Flange

,

Pressure Vessel BL Flange

1/2" - 48" 300# TP304 Stainless Steel ANSI B 16.5 BL Flange

Product Description

Material
Carbon Steel
ASTM A105, LF2, CL1 / CL2 ,16MN,20#
Stainless Steel
ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti
Alloy Steel
ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc.
Standard
ANSI B16.5
Class 150 Flanges-Class 2500 Flanges
DIN
6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
JIS
5K Flanges-30K Flanges
EN1092-1
6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type
1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket
Welding Flange 8. Thread Flange /Screwed Flange 9. Lap Joint Flange
Connection Type
Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue,
Groove, etc
Size
1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment
Normalizing, Annealing, Quenching Tempering
Applications
Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting
projects etc.

Blind Flange has no bore, and is used to close ends of piping systems. A blind flange also permits easy access to a line ones it has been sealed. The blind flange is sometimes machined to accept a pipe of the nominal Size to which reduction is being made. The reduction can be either threaded or welded.



Factory stainless steel blind flange asni b16.5 price

Factory stainless steel blind flange asni b16.5 price

CNC Machined  F347  SORF Flange FREE SAMPLE for Industry
