A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5

Large Image : A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	TE-O12

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Regular shipping packaging or depends on customer's requirement
Delivery Time:	7-15 Working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 PC Per Month

Contact Now

A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5

Description

Material:	Stainless Steel	Brand:	TOBO
Pressure:	CL300	Type:	BL Flange
Standard:	ASME B16.5	Size:	14”
Delivery Detail:	7-15 Days	Packing:	Wooden Case Or As Customer's Request
Color:	Silver Or As Required	Certificate:	CE/ISO/SGS
Application:	Boiler And Pressure Vessel, Petroleum, Chemicals, Oil And Gas
Highlight:	F316L Stainless Steel BLRF Flange , A182 Stainless Steel BLRF Flange , ASME B16.5 BLRF Flange

A182 F316L Stainless Steel BLRF Flange 300# 14'' BLRF Flange

Product Description

Material	Carbon Steel	ASTM A105, LF2, CL1 / CL2 ,16MN,20#
	Stainless Steel	ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti
	Alloy Steel	ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc.
Standard	ANSI B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange /Screwed Flange 9. Lap Joint Flange
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.

Blind Flange has no bore, and is used to close ends of piping systems. A blind flange also permits easy access to a line ones it has been sealed. The blind flange is sometimes machined to accept a pipe of the nominal Size to which reduction is being made. The reduction can be either threaded or welded.

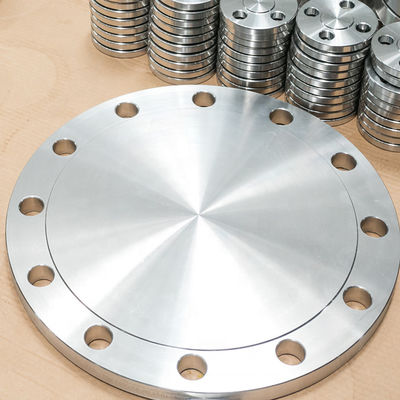

A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5 0

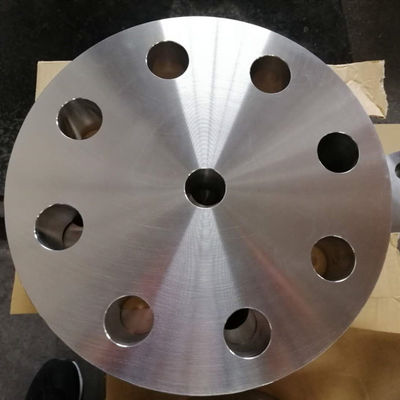

A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5 1

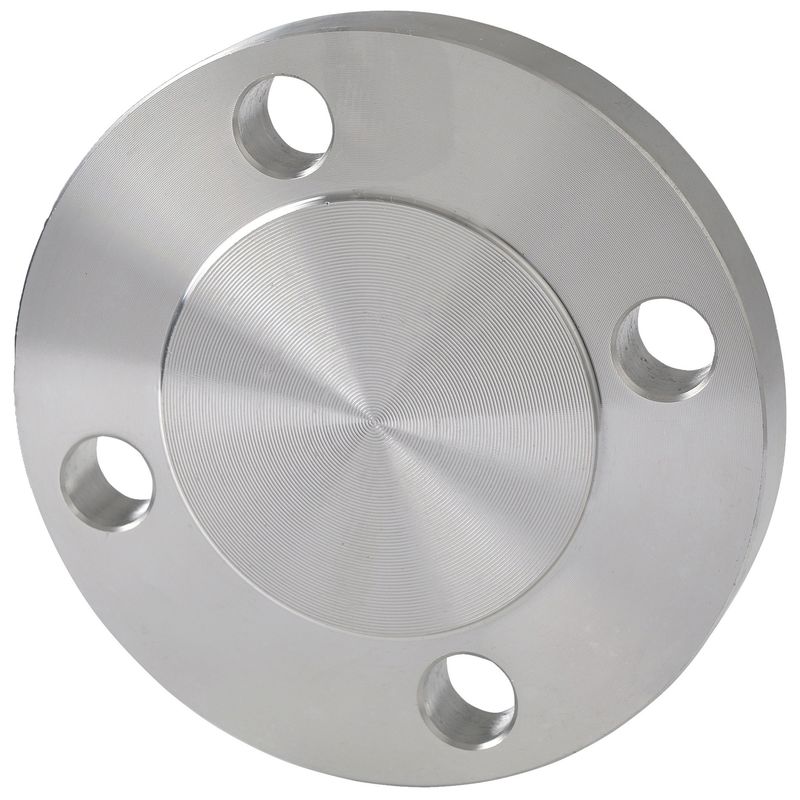

A182 F316L Stainless Steel BLRF Flange 300# 14" ASME B16.5 2
