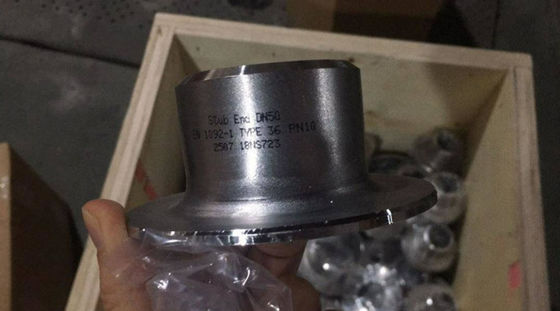

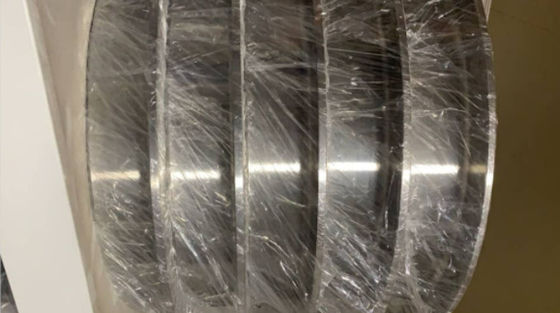

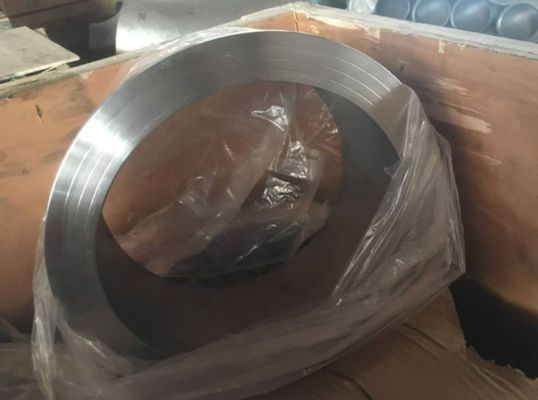

EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End

EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End
EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End

Large Image :  EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End

Product Details:
Place of Origin: China
Brand Name: Metal
Certification: 3.1
Model Number: F1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: As customer's request
Delivery Time: 7
Payment Terms: T/T
Supply Ability: 10000

EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End

Description
Material: Duplex Stainless Steel Name: Orifice Flange
Grade: S32250/2205/S31803 Class: PN10
Size: DN50 Application: Oil/Gas/Water System
High Light:

Stainless Steel Pipe Stub End

,

Dn50 Pipe Stub End

,

Super Duplex Pipe Stub End



EN 1092-1 TYP 35 PN10 DN1400 WELDING NECK RING SS316L SUPER DUPLEX STAINLESS STEEL PIPE STUB END





Chemical Composition and Mechanical Property for 316L

Steel

Grade

Chemical Composition Mechanical Performance

C

(Max)

Si

(Max)

Mn

(Max)

P

(Max)

S

(Max)

Ni Cr

N

(Max)

Mo

Tensile

Strength

Yield

Strength

(Min) (Min)
Mpa Mpa
316L 0.03 0.75 2 0.045 0.03 10.0–14.0 16.0–18.0 0.1 2.00–3.00 485 170





PN10 Welding ring EN 1092-1 Type 35



EN 1092-1 Typ 35 Welding neck ring 1.4404 316L Super Duplex Stainless Steel Pipe Stub End 0

DN A d1 H4 F S Sp kg
200 219,10 268 62 11 6 2,6 3,90
250 273,00 320 68 12 8 3,2 5,80
300 323,90 370 68 12 8 3,2 6,80
350 355,60 430 68 13 8 3,2 9,50
400 406,40 482 72 14 8 3,2 11,60
450 457,00 532 72 15 8 3,6 15,00
500 508,00 585 75 16 8 4 15,90
600 610,00 685 80 18 10 5 23,00
700 711,00 800 80 20 10 6,3 30,90
800 813,00 905 90 20 12 6,3 41,50
900 914,00 1005 95 22 12 8 50,00
1000 1.016,00 1110 95 24 12 8 58,90
1200 1.219,00 1330 115 26 16 10 93,20
