Product Details:
|
| Material: | Stainless Steel | Type: | Seamless |
|---|---|---|---|
| Application: | Industry,construction,oil And Gas,Oil Gas Sewage Transport | Welding Line Type: | Seamless |
| Steel Grade: | 304 | ||

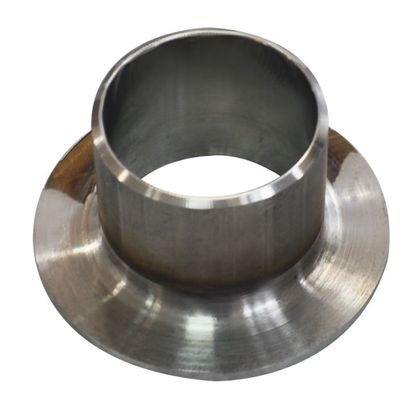

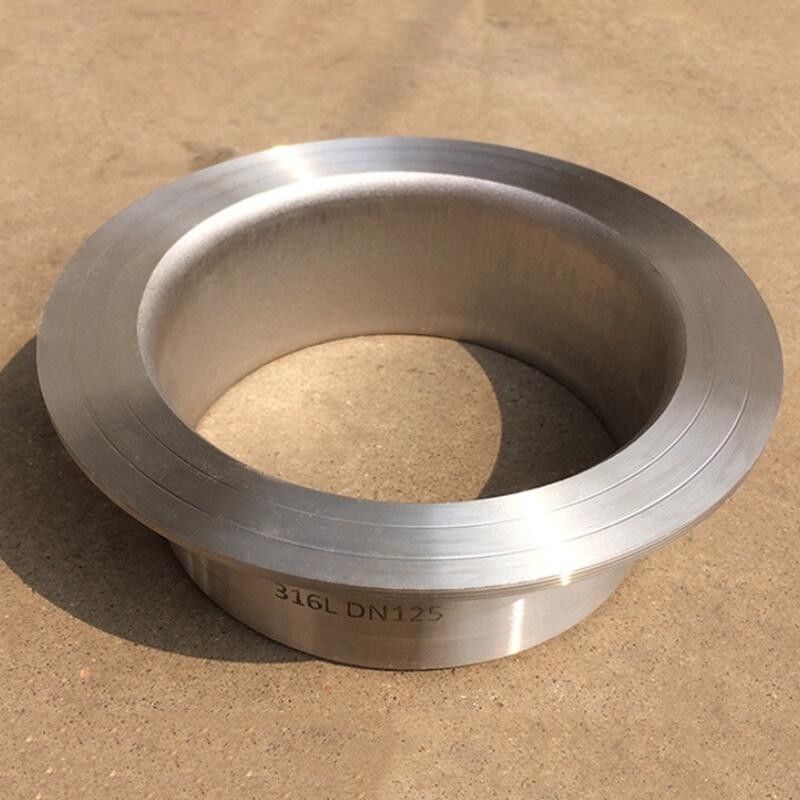

| High Light: | A304 Lap Joint Stub End,MSS Lap Joint Stub End,PN6 Lap Joint Stub End |
||
Flanging Stub End to the forming method of forming straight wall or flange with certain Angle along the edge of closed or unclosed curve on the plane part or surface part of billet with the action of mold. Flanging is a kind of stamping process. There are many kinds of flanging and the classification methods are not the same. It can be divided into elongation flanging and compression flanging according to deformation properties.
| Size | 1/2"- 24" seamless, 4"-48" seam welding |
| Wall thickness | 2MM----25MM SCH5,SCH10S, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH60, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, SGP, LG, |
| Certification | ISO9001: 2008, PED. |
| Standard | ANSIB16.9, ASME B16.28; DIN 2605, DIN 2615, DIN2616, DIN2617;GOST 17375; GOST 17378; JIS2311 |
| Application | Chemical industry, petroleum industry,construction industry, power industry, gas industry, shipbuilding ,domestic installation |
| Pressure | PN6,10,16,25,40, |
| Grade | ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321, 347, 347 H |
| Technics | Forged |
| Material | Carbon steel ,stainless steel ,alloy steel EN 10216-2 (P235GH,P265GH) EN10222-2(P245GH,P280GH) NF A49-213 (TU42C,TU48C) Low Alloy Steel : ASTM A-420(WPL6) ASTM A-234(WP11,WP22,WP5) ASTM A-860(A860-WPHY52) Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321, WP321H,WP347,WP347H) EN10216-5(X2CrNiN18-10(1.4311), X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),X2CrNiMo17-12-2(1.4404) |
Detailed Production Description
1)Size: Seamless: 1/2”-60" SCH10s-XXS
2)Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO
3)Material:
4)Surface treatment:
5)Nominal wall thickness: SCH5-SCH160, STD, XS, XXS
6)Packing: Wooden case or wooden pallet according to the size of fittings
7)Delivery time:7-10 days for a 20 ft container
8)Others:
| Material |
Carbon steel(ASTM A105,A350LF2,A350LF3,) |
| Standard | DIN,EN,ASTM,BS,JIS,GB,ASME(ASME16.9/16.20) |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
FAQ
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Yes, we could offer the sample for free charge but need pay the cost of freight.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before
