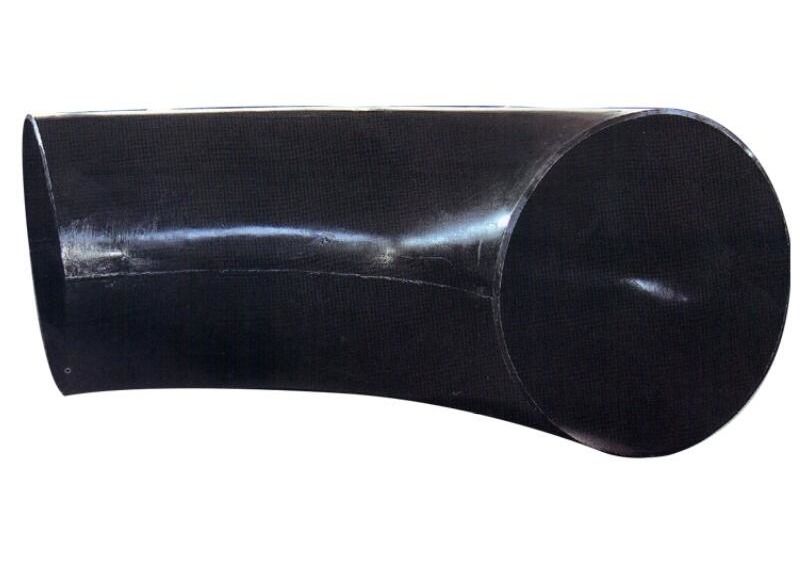

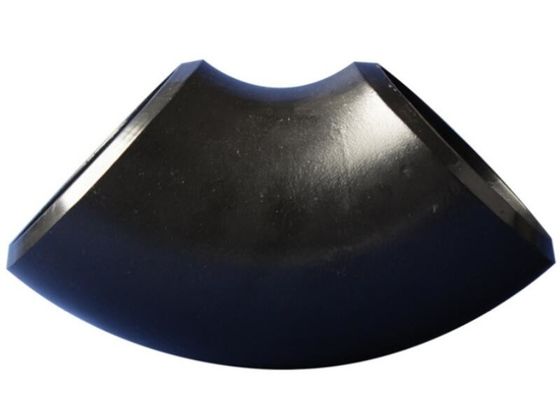

Product Details:
|
| Product Name: | SR Elbow | Material: | Carbon Steel |
|---|---|---|---|
| Standard: | ASME B 16.9 | Type: | 90 Degree |
| Technique: | Seamless | Section Shape: | Round |
| High Light: | WPB 90 Deg Elbow,ASTM A234 90 Deg Elbow,DN100 90 Deg Elbow |
||
| Product name | Butt welding pipe fitting 45 degree long/short radius elbow | |
| Size | 1/2"-2 4" ,DN15-DN600 24"-72",DN600-DN1800 | |
| Material | ASTM | Carbon steel: (ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel: (ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10 00Cr17Ni14Mo2, ect.) | ||
| Alloy Steel: A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6,A420WPL3 | ||
| DIN | Carbon steel: St37.0,St35.8,St45.8 | |
| Stainless steel: 1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel: 1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel: PG370,PT410 | |
| Stainless stee: SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel: PA22,PA23,PA24,PA25,PL380 | ||
| GB | 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,12CrMo, 12CrMoG, 12Cr1Mo | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| Application | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power | |
| Pressure | Sch5--Sch160,XXS | |
| Shape | Equal, round | |
| Technics | Forged | |
| Type | LR/SR 30,45,60,90,180 degree | |
| 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. | ||
Product name: AlloyC-276/UNS N10276
General international names: Alloy C-276,INCONEL Alloy C-276,HC-276,Hastelloy C-276,UNS N10276,W.-Nr. 2.4819,ATI C-276,Nicrofer 5716 hMoW-Alloy C-276,NAS NW276
| Product Name | 90° Seamless Elbow |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
| Nickel alloy steel | Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Corrosion resistance and main operating environment:
Haseley alloy c-276 is a tungsten-containing ni-cr-mo alloy with very low silica carbon content and is considered to be a universal corrosion resistant alloy. The alloy has the following characteristics: in the oxidation and reduction atmosphere state, the majority of the corrosion medium has excellent corrosion resistance. (2) excellent pitting corrosion resistance, crack corrosion and stress corrosion performance. The higher content of molybdenum and chromium makes the alloy resistant to chloride corrosion, while tungsten further improves the corrosion resistance. At the same time, c-276 alloy is one of the only materials that can resist the corrosion of wet chlorine, hypochlorite and chlorine dioxide solution. It is one of the few materials that can be used in hot concentrated sulfuric acid solution.
Welding materials and welding process: Ernicrrmo-4 welding wire and enicrrmo-4 welding rod are used as welding materials for c-276
Applications: Power plant desulfurization denitration environmental protection, petrochemical equipment, chemical, fluorine chemical industry, fine chemical, PTA, aviation manufacturing, offshore platform, seawater desalination, papermaking machinery, pharmaceutical equipment, heat exchange equipment, electrochemical, metallurgy, nuclear energy, alkali, shipbuilding, cement manufacturing, composite panels, acetic anhydride, acetic acid salt and plate heat exchanger, bellows expansion joint and other industries and products.
