Product Details:
|
| Product Name: | Equal Tee | Material: | UNS NO8020 |
|---|---|---|---|
| Standard: | ASME B 16.9 | Type: | Equal |
| Technic: | Seamless | Wall Thickness: | SCH40 |
| Outer Diameter: | 2 Inch | Application: | Connection |
| High Light: | Duplex Stainless Steel Equal Tee,UNS N08926 Duplex Equal Tee,SCH40 Stainless Steel Equal Tee |
||

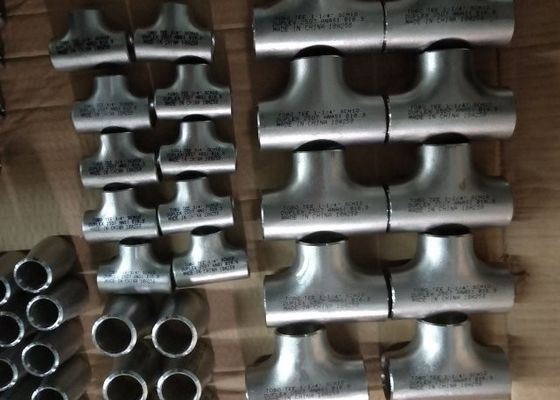

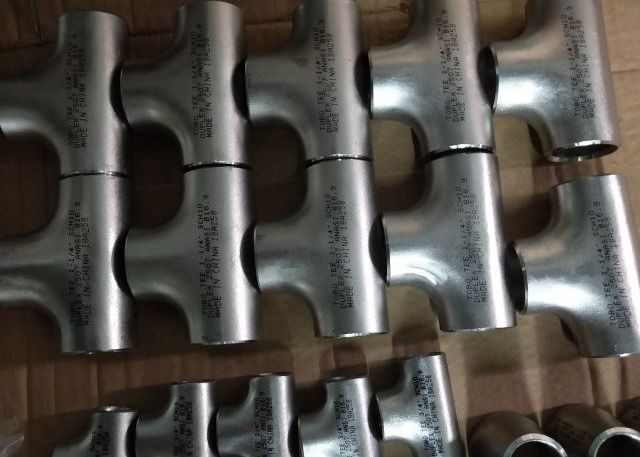

Super Duplex Stainless Steel Alloy 926 Equal Tee B366 WP1925N UNS N08926 1/2"-24" Butt Welding Pipe Tee Fittings
Specifications
1. Butt welding fittings
2. UNS NO8020
3. ISO9001,ISO9000
4. Market:America,Africa,Middle East,Southeast of Asia
UNS NO8020 Properties:
1. Many excellent properties, good resistance to oxidation and medium reducibility corrosion
2. Excellent resistance to stress corrosion and local corrosion
| Product Name | Equal / Reducing Tee, |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
| Nickel alloy steel | Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Technical Drawing & Size Specification
| Unit : inch Nominal |
Outside Dia. (OD) |
Wall Thickness (T) |
Tees Center To Ends C.M |
|||
| Sch.5S | Sch.10S | Sch.40S | Sch.80S | |||
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 | 1.00 |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 | 1.13 |
| 1 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 | 1.50 |
| 1-1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 | 1.88 |
| 1-1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 | 2.25 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 | 2.50 |
| 2-1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 | 3.00 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 | 3.38 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 | 4.13 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 | 4.88 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 | 5.63 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 | 7.00 |
| 10 | 10.750 | 0.134 | 0.165 | 0.375 | 0.500 | 8.50 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 | 0.500 | 10.00 |
| 14 | 14.000 | 0.156 | 0.250 | 0.375 | 0.500 | 11.00 |
| 16 | 16.000 | 0.165 | 0.250 | 0.375 | 0.500 | 12.00 |
| 18 | 18.000 | 0.165 | 0.250 | 0.375 | 0.500 | 13.50 |
| 20 | 20.000 | 0.188 | 0.250 | 0.375 | 0.500 | 15.00 |
| 24 | 24.000 | 0.218 | 0.250 | 0.375 | 0.500 | 17.00 |
Butt weld Tee Fitting
Butt weld Tee Fittings are widely used in industrial tubing to merge or divide fluids and do not require
special tubing preparation before applications. Available in different threading specifications and various grades
Butt weld Tee Fittings are engineered to close tolerances and precise dimensions.
Application
Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical),
chemical and pharmaceutical, pulp and paper, fertilizer, desalination, nuclear, electric power, boiler,heat exchange,
metallurgy, refinery,machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile, ect.
Our advangtage
1) Raw material use 100% material steel
2) Good service
3) Competive price
4) Fast delivery
5)High quality products
Other products
we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality,
competitive price and excellence service are your best choice.
Chemical Composition
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | No | No+Ta | Fe |
|
0.07 max |
1.0 max |
2.0 max |
0.045 max |
0.035 max |
19.0-21.0 | 32.0-38.0 | 2.0-3.0 | 3.0-4.0 |
1.0 max |
8c-1.0 | balance |
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
