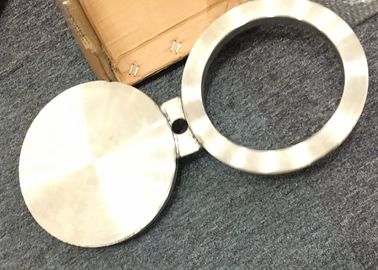

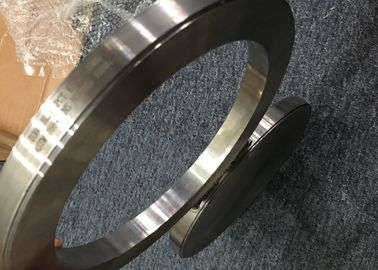

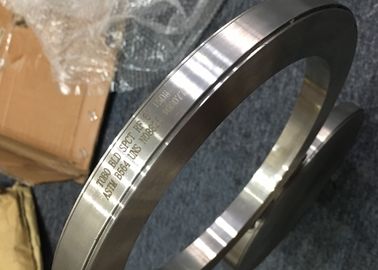

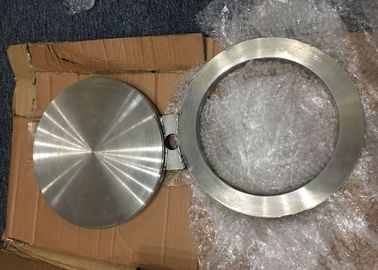

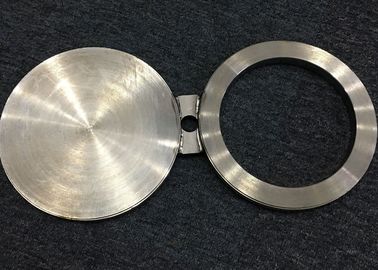

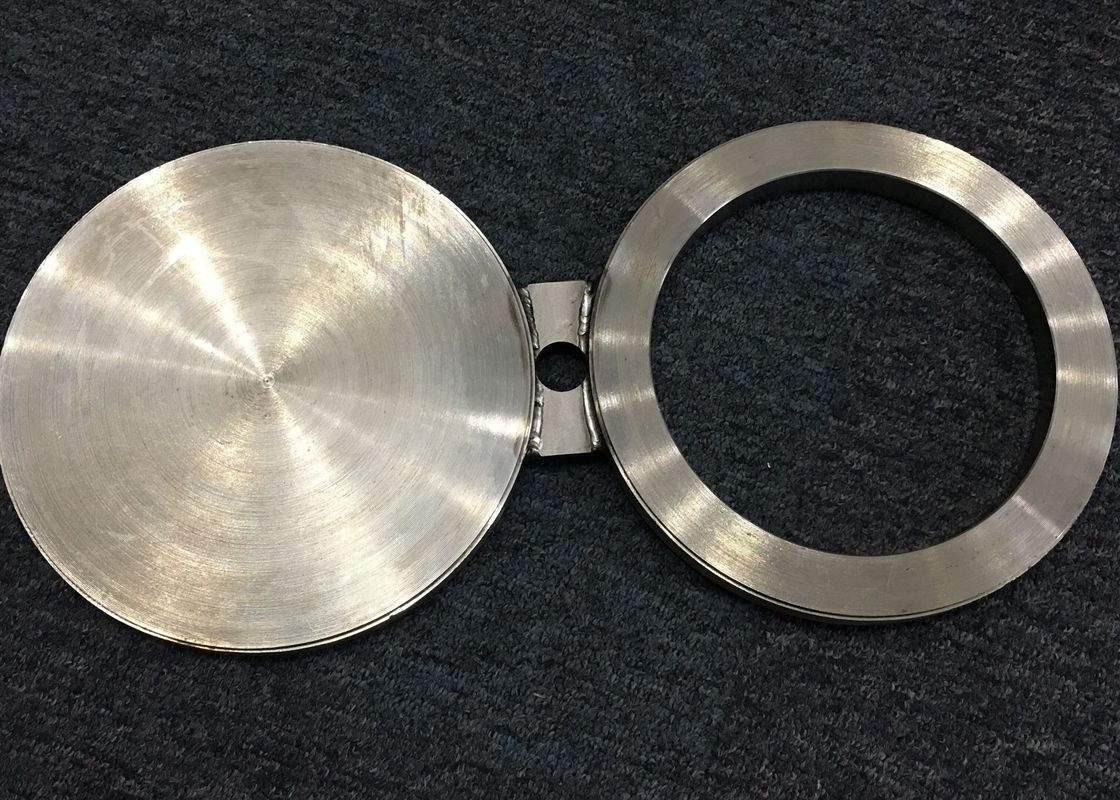

Spectable blind figure 8 blanks flange ASTM B564 UNS N08825 RF 6" 150LBS nickel alloy steel ANSI
| Production Name |
Nickel Alloy Steel Pipes |
| Standard |
ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| Size |
1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness |
Sch5~Sch160XXS |
| Manufacturing process |
Push, Press, Forge, Cast, etc. |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
NAS 254NM/NO8367; Monel 30C
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952
Nimonic 263/NO7263
Nimonic 90/UNS NO7090;
Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800
|
| Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Delivery time |
10-100 days depending on quantity |
| Payment terms |
T/T or Western Union or LC |
| Shipment |
FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks |
Other materials and drawings are available. |
| The third party inspection: |
BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
Nickel Alloy
Our nickel alloys are adopted for use in tough environments as oil platforms and desalination plants. By us you find nickel alloys with corrosion resistance, good weldability and formability.
With a nickel alloy from us you get a material adopted for use in tough environment. Within our product range you can find corrosion resistance alloys, welding alloys and nickel alloys for electrical resistance and electronic instruments. We also have high temperature alloys. By varying the combination of different chemical elements a wide range of useful properties can be achieved as high corrosion resistance, high rupture strength, toughness, metallurgical stability, good fabricability, creep strength and good fatigue life.
Some common applications for nickel alloys:
- Desalination plants
- Pressure vessels
- Oil platforms
- Heat exchangers
- Seawater handling
- Pulp bleaching
NICKEL ALLOY
| Trade Name |
ASTM Pipe |
Pipe Fittings |
UNS |
Forging & Flanges |
| Monel@ 400 |
B165 |
B366 WPNC |
N04400 |
B564 N04400 |
| Inconel@ 600 |
B167 |
B366 WPNCI |
N06600 |
B564 N06600 |
| Inconel@ 625 |
B444 |
B366 WPNCMC |
N06625 |
B564 N06625 |
| Incoloy@ 800 |
B163 |
B366 WPNIC |
N08800 |
B564 N08800 |
| Incoloy@ 800H |
B407 |
B366 WPNIC10 |
N08810 |
B564 N08810 |
| Incoloy@ 800HT |
B407 |
B366 WPNIC11 |
N08811 |
B564 N08811 |
| Incoloy@ 825 |
B423 |
B366 WPNICMC |
N08825 |
B564 N08825 |
| Hastelloy@ B2 |
B619/622 |
B366 WPHB-2 |
N10665 |
B564 N10665 |
| Hastelloy@ C276 |
B619/622 |
B366 WPHC276 |
N10276 |
B564 N10276 |
| Hastelloy@ C22 |
B619/622 |
B366 WPHC22 |
N06022 |
B564 N06022 |
| Carpenter 20Cb-3@ |
B729 |
B366 WP20Cb |
N08820 |
B462 N08820 |
| SANICRO 28@ |
B668 |
|
N08028 |
|
Chemical Composition
Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max
| C |
Si |
Mn |
P |
S |
Ni |
Gr |
Al |
Ti |
Cu |
|
≤0.10
|
≤1.0
|
≤1.50
|
≤0.030
|
≤0.015
|
30.0~35.0 |
19.00~23.00 |
0.15~0.60 |
0.15~0.60 |
≤0.75
|
| 0.012 |
0.30 |
0.27 |
0.015 |
0.0005 |
30.5 |
19.9 |
0.32 |
0.40 |
0.03 |
| Alloy |
Ni |
C |
Mn |
Fe |
S |
Si |
Cu |
Cr |
Al |
Ti |
Nb |
Mo |
| Nickel 200 |
99.5 |
0.08 |
0.2 |
0.2 |
0.005 |
0.2 |
0.1 |
-- |
-- |
-- |
-- |
-- |
| Nickel 200 |
99.5 |
0.01 |
0.2 |
0.2 |
0.005 |
0.2 |
0.1 |
-- |
-- |
-- |
-- |
-- |
| Monel 400 |
66.5 |
0.2 |
1 |
1.2 |
0.01 |
0.2 |
31.5 |
-- |
-- |
-- |
-- |
-- |
| Monel 401 |
42.5 |
0.05 |
1.6 |
0.4 |
0.008 |
0.1 |
|
-- |
-- |
-- |
-- |
-- |
| Monel K500 |
66.5 |
0.1 |
0.8 |
1 |
0.005 |
0.2 |
29.5 |
-- |
2.7 |
0.5 |
-- |
-- |
| Inconel 600 |
76 |
0.08 |
0.5 |
8 |
0.006 |
0.2 |
0.2 |
15.5 |
-- |
-- |
-- |
-- |
| Inconel 601 |
60.5 |
0.05 |
0.5 |
14.1 |
0.007 |
0.2 |
0.5 |
23 |
1.4 |
-- |
-- |
-- |
| Inconel 718 |
52.5 |
0.04 |
0.2 |
18.5 |
0.008 |
0.2 |
0.2 |
19 |
0.5 |
0.9 |
5.1 |
3 |
| Inconel X-715 |
73 |
0.04 |
0.5 |
7 |
0.005 |
0.2 |
0.2 |
15.5 |
0.7 |
2.5 |
1 |
-- |
| Incoloy 800 |
32.5 |
0.05 |
0.8 |
46 |
0.008 |
0.5 |
0.4 |
21 |
0.4 |
0.4 |
-- |
-- |
| Incoloy 803 |
32.0-
37.0 |
0.06-
0.10 |
≤1.5 |
|
≤0.015 |
≤1.0 |
≤0.75 |
25.0-
29.0 |
0.15-
0.60 |
0.15-
0.6 |
-- |
-- |
| Incoloy 825 |
42 |
0.03 |
0.5 |
30.4 |
0.02 |
0.2 |
2.2 |
21.5 |
0.1 |
0.9 |
-- |
3 |
STANDARDS:
ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns
ASME B16.25 - Buttwelding Ends
MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
5. Why Choosing Metal Industrial:
-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professionals on Communications
Packaging & Shipping
| Packaging: |
In wooded cases , pallets or according to clients' requirements |
| Shipping: |
Tianjin port, Shanghai port and the other main ports in China |
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
