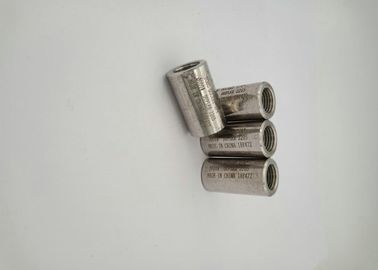

Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625

Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625
Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625 Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625

Large Image :  Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/TUV
Model Number: Coupling
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: ply-wooden case
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 PC/Month

Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625

Description
Material: Alloy Steel Pipe Inconel Alloy 625 Shape: Round
Connection: Forged Type: Coupling
Application: Connect Pipes, Gas, Oil, Water, Industry Surface Treatment: Hot Galvanized, Oil, Polish180.320.420, Sand Blasting, Sand Blast
Color: Or As Required, Oil, Can Be Customed, Black Or Not, Black
High Light:

carbon steel pipe fittings

,

alloy pipe fittings

,

butt weld pipe fittings

Alloy Steel Pipe Fittings 3 Inch 6000# Nickel Alloy Threaded Coupling ASME Inconel Alloy 625



With the team of diligent professionals, our firm is indulged in providing best range of Threaded Coupling Offered product has longer life working in rough weather conditions. Besides this, it is available in market in safe form and at minimal price.

Specifications:

Size Class Range Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet ANSI B 16.11 ASTM A 182


Nickel Alloy 90° Elbow Outlet:



ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Momel 400), UNS 8020 (Alloy 20 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)



Copper Alloy Steel 90° Elbow Outlet:



  • ASTM / ASME SB 111 UNS NO.C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500
  • ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Product Details:



  • Types: Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
  • 90° Elbow Outlet Size: 1/2” NB TO 24” NB.
  • N6 pure nickel strip (UNS NO2200)

    Nickel 200 (UNS N02200/ w.r.2.4060 and 2.4066)

    Nickel 200 this alloy has the following characteristics:

    It is commercial pure nickel (99.6%).It has good mechanical properties and excellent resistance in many corrosive environments.Other useful features of the alloy include its magnetic properties, magnetostrictive properties, high thermal and electrical conductivity, low gas content and low evaporation pressure.Corrosion resistance makes it particularly useful in applications where purity is required for products such as food, synthetic fibres and caustic soda.It is also widely used in structural applications where corrosion resistance is the main consideration.Other USES include chemical transfer barrels, electrical and electronic components, aerospace and missile components.

    Metallographic structure of nickel 200:

    Nickel 200 is a solid alloy with a face-centered cubic structure.

    High temperature performance:

    Nickel 200 is generally restricted to use at less than 600°F (315°C).The graphitization of nickel 200 products will occur at high temperature, which will seriously degrade the performance of the products.

    Available products and standards:

    Landong can supply N6 nickel strip, N6 nickel sheet, N6 nickel foil, N6 nickel wire, N6 nickel tube, N6 nickel plate, N6 nickel rod, etc.Welcome to inquir

    The corrosion resistance of N4/N6 pure nickel, especially alkali corrosion resistance, is relatively stable in both high temperature and molten alkali, so it is mainly used in alkali making industry.At room temperature, nickel is extremely stable in seawater and salt solutions and in organic media such as fatty acids, phenols, alcohols, etc.It is not resistant to inorganic acids and is unstable in acetic acid and formic acid.

    Pure nickel product specification (MM) :

    Nickel strip: 0.01mm-2.0mm 1.5mm-500mm

    Nickel rod: Φ 3 - Φ 300;Length: 10mm-6 m

    Nickel plate: 2.0-50mm;Width of 1200 mm;Length is 6000 mm

    Nickel wire: 0.01 Φ Φ 3 mm

    N6 nickel strip/nickel foil

    With high quality electrolytic nickel as raw material, the purity of ** up to 99.98%, after vacuum smelting and subsequent processing into different shapes of pure metal.Pure nickel has excellent corrosion resistance, good mechanical properties, mechanical additive and welding properties. Pure nickel with different purity is mainly used in chemical, electroplating and electronic fields.The corrosion resistance is good in other reductive media except alkaline media.Compared with ni-based alloys, pure nickel has higher conductivity, thermal conductivity and plasticity.Pure nickel can be processed into products of different shapes with a density of 8.9g/cm3.

    Physical properties of N6 pure nickel:

    Density: 8.9 g/cm3

    Melting point: 1500-1600 ° C

    Tensile strength: 380rmN/MM2

    Yield strength: 100RP02N/MM2

    Elongation: 40A5%

    Standard: GB/ t2072-2007 us standard: ASTM B 162

    Supply status: soft (M state) semi-hard (1/4H, 1/2h, 3/4h) hard (H state)

    Pure nickel product specification (MM) :

    Nickel strip: 0.01mm-2.0mm 1.5mm-500mm

    Nickel rod: Φ 3 - Φ 300;Length: 10mm-6 m

    Nickel plate: 2.0-50mm;Width of 1200 mm;Length is 6000 mm

    Nickel wire: 0.01 Φ Φ 3 mm

  • =Corrosion Resistance Alloy Pipe Fittings Threaded Coupling Inconel Alloy 625 0
