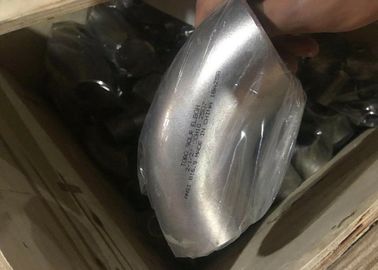

Alloy Steel Pipe Fittings 2 1/2'' ELBOW LR90 DEG SCH10S UNS N010675

Alloy Steel Pipe Fittings 2 1/2'' ELBOW LR90 DEG SCH10S UNS N010675

Hastelloy B-3 is a nickel-molybdenum alloy with excellent resistance to pitting, corrosion, and stress-corrosion cracking plus, thermal stability superior to that of alloy B-2. In addition, this nickel steel alloy has great resistance to knife-line and heat–affected zone attack. Alloy B-3 also withstands sulfuric, acetic, formic and phosphoric acids, and other non-oxidizing media. Furthermore, this nickel alloy has excellent resistance to hydrochloric acid at all concentrations and temperatures. Hastelloy B-3’s distinguishing feature is its ability to maintain excellent ductility during transient exposures to intermediate temperatures. Such exposures are routinely experienced during heat treatments associated with fabrication.

Limiting Factors of Hastelloy B-3

Alloy B-3 has poor corrosion resistance to oxidizing environments, therefore, it is not recommended for use in oxidizing media or in the presence of ferric or cupric salts because they may cause rapid premature corrosion failure. These salts may develop when hydrochloric acid comes in contact with iron and copper. Therefore, if this nickel steel alloy is used in conjunction with iron or copper piping in a system containing hydrochloric acid, the presence of these salts could cause the alloy to fail prematurely.

In what forms is Hastelloy B-3 Available at Mega Mex?

· Sheet
· Plate
· Bar
· Pipe (welded & seamless)
· Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
· Wire

What are the characteristics of Hastelloy B-3?

· Maintains excellent ductility during transient exposures to intermediate temperatures
· Excellent resistance to pitting, corrosion and stress-corrosion cracking
· Excellent resistance to knife-line and heat-affected zone attack
· Excellent resistance to acetic, formic and phosphoric acids and other non-oxidizing media
· Resistance to hydrochloric acid at all concentrations and temperatures
· Thermal stability superior to alloy B-2

Chemical Composition, %

In what applications is Hastelloy B-3 used?

· Chemical processes
· Vacuum furnaces
· Mechanical components in reducing environments

Fabrication with Hastelloy B-3

Problems associated with fabrication of alloy B-2 components should be minimized with alloy B-3 due to its improved thermal stability. A low carbon content permits alloy B-3 to be used in the as-welded condition. Hastelloy B-3 has good overall forming and welding characteristics. This alloy can be forged or otherwise hot-worked, providing that it is held at 2250° F for a sufficient amount of time to bring the entire piece to temperature. Since it is a low carbon alloy, the use of lower hot finishing temperatures may be necessary to achieve grain size control. It may also be formed by cold working. Although it does work-harden somewhat rapidly, B-3 alloy components can be made using all common cold forming techniques. All common welding techniques may be used with alloy B-3, however, oxyacetylene and submerged arc welding processes are not recommended when the fabricated item is to be used in corrosive service.
For more information on fabrication and machining click here.

ASTM Specifications

Mechanical Properties

Annealed Material


Nickel Alloy 90° Elbow Outlet:

ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Momel 400), UNS 8020 (Alloy 20 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

Copper Alloy Steel 90° Elbow Outlet:


• ASTM / ASME SB 111 UNS NO.C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500
• ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)


Product Details:


• Types: Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
• 90° Elbow Outlet Size: 1/2” NB TO 24” NB.

• N6 pure nickel strip (UNS NO2200)

  Nickel 200 (UNS N02200/ w.r.2.4060 and 2.4066)

  Nickel 200 this alloy has the following characteristics:

  It is commercial pure nickel (99.6%).It has good mechanical properties and excellent resistance in many corrosive environments.Other useful features of the alloy include its magnetic properties, magnetostrictive properties, high thermal and electrical conductivity, low gas content and low evaporation pressure.Corrosion resistance makes it particularly useful in applications where purity is required for products such as food, synthetic fibres and caustic soda.It is also widely used in structural applications where corrosion resistance is the main consideration.Other USES include chemical transfer barrels, electrical and electronic components, aerospace and missile components.
