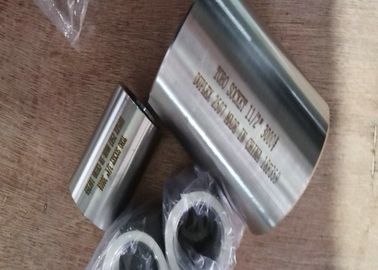

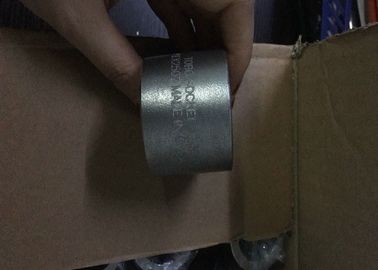

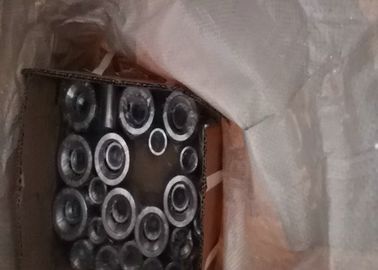

Round Shape Alloy Steel Pipe Fittings 1/4" Socket 1200PSI UNS N010665 Corrosion Resistance

Alloy Steel Pipe Fittings 1/4'' SOCKET 1200PSI UNS N010665 Alloy B-2

Hastelloy B2 is a solid solution strengthened, nickel-molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments. This nickel steel alloy can be used in the as-welded condition because it resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone.

This nickel alloy provides excellent resistance to hydrochloric acid at all concentrations and temperatures. In additions, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking and to knife-line and heat-affected zone attack. Alloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids.

Limiting Factors of Hastelloy B2

Alloy B-2 has poor corrosion resistance to oxidizingenvironments, therefore, it is not recommended for use in oxidizing media or in the presence of ferric or cupric salts because they may cause rapid premature corrosion failure. These salts may develop when hydrochloric acid comes in contact with iron and copper. Therefore, if this alloy is used in conjunction with iron or copper piping in a system containing hydrochloric acid, the presence of these salts could cause the alloy to fail prematurely. In addition, this nickel steel alloy should not be used at temperatures between 1000° F and 1600° F because of a reduction in the ductility in the alloy

What are the characteristics of Hastelloy B2?

· Great resistance to stress corrosion cracking and pitting

· Significant resistance to reducing conditions like hydrogen chloride, sulfuric, acetic and phosphoric acids

· Resistance to hydrochloric acid at all concentrations and temperatures

Chemical Composition, %

In what applications is Hastelloy B-2 used?

· Chemical processes

· Vacuum furnaces

· Mechanical components in reducing environments

ASTM Specifications

Mechanical Properties

Annealed Material

Nickel Alloy 90° Elbow Outlet:

ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Momel 400), UNS 8020 (Alloy 20 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

Copper Alloy Steel 90° Elbow Outlet:

• ASTM / ASME SB 111 UNS NO.C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500
• ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Product Details:

• Types: Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
• 90° Elbow Outlet Size: 1/2” NB TO 24” NB.

• N6 pure nickel strip (UNS NO2200)



•
