Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting

Certification
Good quality Super Duplex Stainless Steel Pipe for sales
Good quality Super Duplex Stainless Steel Pipe for sales
In the latest vendor rating, TOBO won the excellent rating, it is good, will continue to cooperate.

—— Brazil---Aimee

ASTM A213 T9 Alloy steel pipe ,Stable quality , good price, excellent serive, TOBO GROUP is our trustworthy partner

—— Thailand ---Dave Mulroy

I'm Online Chat Now

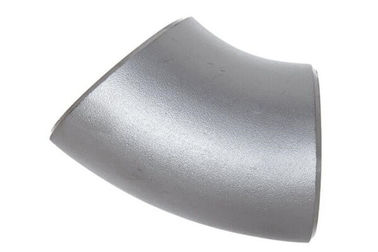

Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting

China Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting supplier
Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting supplier Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting supplier Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting supplier

Large Image :  Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting

Product Details:

Place of Origin: Shanghai(CHINA)
Brand Name: TOBO
Certification: ISO,SGS
Model Number: 01

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: USD18-55/piece
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000piece/month
Contact Now
Detailed Product Description
Model Number: 01, 1/2"-48" Technics: Casting
Connection: Welding Shape: Equal
Head Code: Round Material: Alloy
Application: Connect Pipes Standard: AISI ASTM JIS SUS GB DIN EN
Color: Natural Surface Treatment: Sand Blasting
Certificate: ISO9001:2008

Alloy B-2 45 Degree Nickel Alloy Steel Bend Pipe Tube Elbow UNS N10665 With Casting

Product Description

Hastelloy B-2 Chemical compostion:

Alloy % Ni Mo Fe Cr Co C Mn V Si P S
Hastelloy B Min. Balance 26 4         0.2
Max. 30 6 1 2.5 0.05 1 0.4 1 0.04 0.03
Hastelloy B-2 Min. Balance 26 2
Max. 30 7 1 1 0.02 1   0.1 0.04 0.03

Hastelloy B-2 Physical properties:
Density 9.24g/cm3
Melting point 1330-1380°C





Hastelloy B-2 Alloy minimum mechanical properties in the room temperature:

Alloy state Tensile strength
Rm N/mm2
Yield strength
RP0.2N/mm2
Elongation
A5 %
Hastelloy B 690 310 40





Characteristic:

1. Control of iron and chromium content to a minimum to prevent the generation of β-phase Ni4Mo.
2. Excellent corrosion resistance of restore environment.
3. An excellent resist to concentration sulfuric acid medium and large number of non-oxidizing acid corrosion.
4. A very good resistance of chloride reduction of stress corrosion cracking (SCC).
5. Good corrosion resistance of various organic acids.



Metallurgical structure:

Hastelloy B-2 is the face-centered cubic lattice structure. By controlling the content of iron and chromium at the minimum to reduce the processing brittle, prevent Ni4Mo precipitation during 700-870 °





Product Category

PRODUCT CATEGORIES

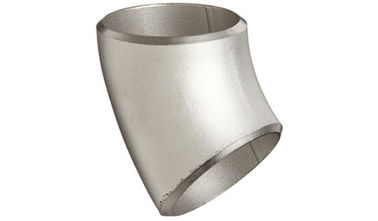

nickel plated copper sheet threaded 45deg. elbow

Nickel plated copper sheet threaded 45deg. elbow



Brand Name

TOBO

Product Name

45D Elbow

Certification

SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin

Shanghai China (Mainland)























Material







ASTM

Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2,  ect.)

 Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3



DIN

Carbon steel:St37.0,St35.8,St45.8

Stainless steel:1.4301,1.4306,1.4401,1.4571

Alloy steel:1.7335,1.7380,1.0488(1.0566)



JIS

Carbon steel:PG370,PT410

Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321

Alloy steel:PA22,PA23,PA24,PA25,PL380



GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo

Standard Specification

ASTM,JIS,BS,DIN,UNI etc.

Connection

Welding

Shape

Equal

Technics

Forged

Qualification

ISO9001, API,CE

Equipment

Pushing Machine,Beveling Machine,Sand Blasting Machine

Thickness

Sch10-Sch160 XXS

Size

Seamless 1/2" To 24" Welded 24" To 72"

Surface of Finish

Antirust Oil,Hot Galvanized

Pressure

Sch5--Sch160,XXS

Standard

ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

The third party inspection

BV, SGS, LOIYD, TUV, and other party alloyed by clients.

Remark

Also can supply IBR fittings and Specialized NACE & HIC Fittings

Marking

Registered logo,Heat Number,Steel Grade,Standard,Size

Minimum Order Quantity

1pcs

Supply Ability

3,0000pcs per month

Price

Depending on quantity

Payment Terms

T/T or Western Union or LC

Supply Ability

3,0000pcs per month

Delivery Time

10-50 days depending on quantity

Packing

PLY-wooden case or pallet or as for clients' requirements

Application

Petroleum, chemical, machinery, electric power, shipbuilding, papermaking,







Advantages

1. 20 + years of production experience at your service.

2. The fastest delivery

3. The lowest price

4. Most comprehensive standards and materials for your choice.

5. 100% export.

6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Special design available as the requirement of customer







ABOUT US

 We are one of the Professional manufacturers Exporter  Pipeline products  in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians. We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories.

VIEW MORE>>
Product testing
nickel plated copper sheet threaded 45deg. elbow
Process flow

nickel plated copper sheet threaded 45deg. elbow



Our Advantages

WHY CHOOSE US

TEAM

More than 120 top-class mills

EQUIPMENT

A number of advanced equipments

QUALITY

Company with a variety of detection devices

FACTORY

We have five branch factories

If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.

If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.

FAQ

FAQ

1.  Are you trading company or manufacturer ?

We are manufacturer ,You can see the Alibaba certification.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

 Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.


Packaging&Shipping

Package:Standard export carton packing.

Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.



nickel plated copper sheet threaded 45deg. elbow
