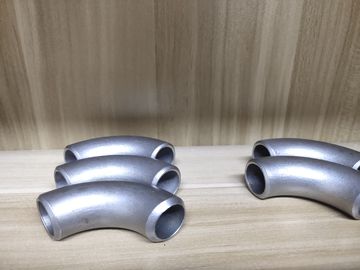

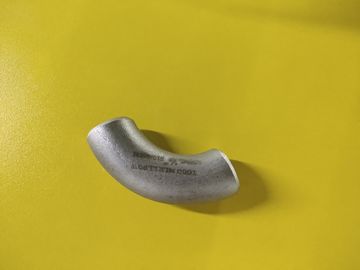

Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow

China Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow supplier
Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow supplier Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow supplier Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow supplier

Large Image :  Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow

Product Details:

Place of Origin: Shanghai(CHINA)
Brand Name: TOBO
Certification: ISO,Metal
Model Number: 01

Payment & Shipping Terms:

Minimum Order Quantity: 100piece
Price: USD17-33/piece
Delivery Time: 7dasys
Payment Terms: D/P, L/C, D/A, Western Union, T/T
Supply Ability: 10000piece/month
Contact Now
Detailed Product Description
Standard: AISI ASTM JIS SUS GB DIN EN Size: 1/2''~ 20''
Head Code: Round Material: Alloy
Type: Elbow Technics: Casting
Application: Connect Pipes Surface Treatment: Sand Blasting
Payment Terms: L/C T/T (30%DEPOSIT) Certificate: ISO9001:2008
Packing: Wooden Case Color: Can Be Customed
Name: 90D Elbow

Custom Made Hastelloy B-3 Alloy Steel Pipe Fittings 90 Degree 6" Elbow



Product Description

Hastelloy B-3 Chemical compostion:

Alloy % Ni Mo Fe Cr Co C Mn V Si P S

Hastelloy

B3

Min.



≥65

27   1 - - - - - - -
Max. 32   3 3 0.01 3 0.2 0.1 0.03 0.01


Hastelloy B-3 Physical properties:
Density 9.24g/cm3
Melting point 1370-1418°C



Hastelloy B-3 Alloy minimum mechanical properties in the room temperature:


Alloy state Tensile strength
Rm N/mm2
Yield strength
RP0.2N/mm2
Elongation
A5 %
Hastelloy B-3 760 350 40





Characteristic:





1.B-3 alloy is a new member of Nickel-Molybdenum Alloy family. It has excellent corrosion resistance to hydrochloric acid at any temperature and concentration. It also has good corrosion resistance to hydrochloric acid, acetic acid, formic acid, phosphoric acid and other non-oxidizing media.

2.Due to the adjustment of its chemical composition, its thermal stability has been greatly improved compared with the original B-2 alloy. B-3 alloy has a high resistance to pitting corrosion, stress corrosion, knife edge corrosion and welding heat-affected zone corrosion.





structure:



ALLOY B-3 is a face-centered cubic lattice structure. The content of iron and chromium in the alloy is controlled to a minimum, which prevents the precipitation of NI4MO phase at 700-800 C, thus reducing the risk of processing embrittlement.



Corrosion resistance:





The characteristics of ALLOY B-3 are that it can maintain excellent plastic properties, excellent resistance to pitting corrosion and stress corrosion cracking, excellent resistance to knife-edge corrosion and heat-affected zone corrosion, excellent resistance to acetic acid, acetic acid, phosphoric acid and other non-oxidizing acids, and excellent resistance to salt at various concentrations and temperatures. Performance of acid corrosion



Applied field:

B-3 alloys can be used for all previous uses of B-2 alloys. Like B-2 alloys, B-3 is not recommended for use in the presence of trivalent salts of iron and copper salts, because these salts can quickly cause corrosion damage. When hydrochloric acid is exposed to iron and copper, it reacts with them to form trivalent salts of iron and divalent copper salts.









Product Category

PRODUCT CATEGORIE


nickel plated copper sheet threaded 45deg. elbow

Nickel plated copper sheet threaded 45deg. elbow



Brand Name

TOBO

Product Name

90D Elbow

Certification

SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin

Shanghai China (Mainland)























Material







ASTM

Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2,  ect.)

 Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3



DIN

Carbon steel:St37.0,St35.8,St45.8

Stainless steel:1.4301,1.4306,1.4401,1.4571

Alloy steel:1.7335,1.7380,1.0488(1.0566)



JIS

Carbon steel:PG370,PT410

Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321

Alloy steel:PA22,PA23,PA24,PA25,PL380



GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo

Standard Specification

ASTM,JIS,BS,DIN,UNI etc.

Connection

Welding

Shape

Equal

Technics

Forged

Qualification

ISO9001, API,CE

Equipment

Pushing Machine,Beveling Machine,Sand Blasting Machine

Thickness

Sch10-Sch160 XXS

Size

Seamless 1/2" To 24" Welded 24" To 72"

Surface of Finish

Antirust Oil,Hot Galvanized

Pressure

Sch5--Sch160,XXS

Standard

ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

The third party inspection

BV, SGS, LOIYD, TUV, and other party alloyed by clients.

Remark

Also can supply IBR fittings and Specialized NACE & HIC Fittings

Marking

Registered logo,Heat Number,Steel Grade,Standard,Size

Minimum Order Quantity

1pcs

Supply Ability

3,0000pcs per month

Price

Depending on quantity

Payment Terms

T/T or Western Union or LC

Supply Ability

3,0000pcs per month

Delivery Time

10-50 days depending on quantity

Packing

PLY-wooden case or pallet or as for clients' requirements

Application

Petroleum, chemical, machinery, electric power, shipbuilding, papermaking,







Advantages

1. 20 + years of production experience at your service.

2. The fastest delivery

3. The lowest price

4. Most comprehensive standards and materials for your choice.

5. 100% export.

6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Special design available as the requirement of custo
