Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe

China Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe supplier
Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe supplier Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe supplier

Large Image :  Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe

Product Details:

Place of Origin: CHINA
Brand Name: TOBO
Certification: SGS /TUV/BV
Model Number: C70600

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Standard seaworthy export package or as required
Delivery Time: 10-20 WORKDAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 PER MONTH
Contact Now
Detailed Product Description
Grade: C70600 Alloy Or Not: Is Alloy
Price Term: CIF CFR FOB Ex-Work, CIF, CFR, FOB, CNF Material: Low Temperature Steel Pipe
Shape: Round, Round. Square. Rectangular, Square, Round/Square, Etc Standard: ASTM, GB, BS, DIN

Welders and piping experts prefer low carbon steel for things like boiler plates, wire products and seamless tubing and piping uses.



low temperature steel pipe



A/SA-333 Grades allow for cold temperature service to minus 150°F. Material is always provided in the normalized condition at a minimum and Charpy Impact tested to a specific temperature range to assure compliance with the required service temperature.



Sizes



1/4” Nominal to 24”O.D.
Wall Thickness – Schedule 10 through XXH



Low Carbon Steel Contents and Use



Low carbon steel is composed of 0.04 – 0.30 percent carbon. Welders and piping experts prefer low carbon steel for things like boiler plates, wire products and seamless tubing and piping uses. Auto manufacturers typically prefer low carbon steel for vehicle body panels. If the low temperature carbon steel piping is seamless, it can be installed when processing or manufacture piping requires low temperatures to avoid negative impact on this type of piping. One example of use of low temperature carbon steel pipe would be in processes where refrigerants are required to be 50° F. If this is the case, choose ASTM A333 Grade 6 Low Temp Seamless Carbon Steel for pipes transporting refrigerated process materials through a system. This is a simple guide to new installations of low carbon steel pipes with chemical components that include:



. Carbon (max) 0.30
. Manganese at 0.29-1.06
. Phosphorus (max) 0.025
. Sulfur (max) 0.025





Chemical Properties % Unspecified Chemistry Max %



  C Mn P S Si Cr Cu Mo Ni Cb V
Grade 1: 0.30 0.40-1.06 0.025 0.025
(Note: This is similar chemistry to A53/SA53)
Grade 6: 0.30 0.29-1.06 0.025 0.025 0.10 min 0.30 0.40 0.12 0.40 0.12, max 0.08 max

(Note: This is similar chemistry to A106/SA106)



Mechanical Properties: Grade 1 Grade 6



Tensile Strength, min, psi (MPa) 55,000 (380) 60,000 (415)



Yield Strength, min, psi (MPa) 30,000 (205) 35,000 (240)



CVN Impact (Charpy) Test:



Minimum Impact Test Temperature

Grade 1 -50 (F) -45 (C)

Grade 6 -50 (F) -45 (C)



Heat Treatment:



Grades 1 and 6 shall be heat treated to control their microstructure.



Brand Name: TOBO
Model Number: 90/10 Copper nickel alloy
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin: China



PICTURES:

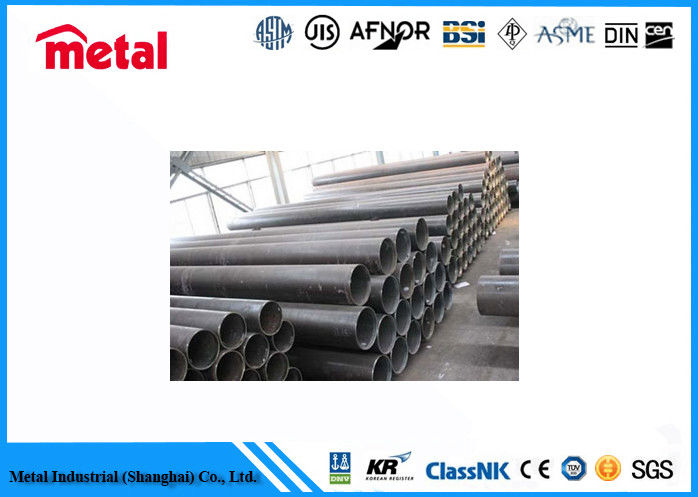

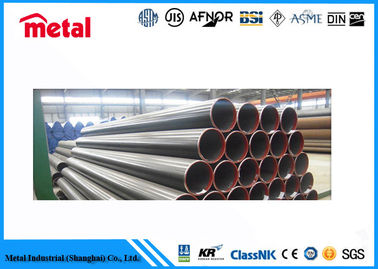

Cold Temperature Thick Wall Steel Pipe Seamless , Customized Pressure Steel Pipe

FAQ.

Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
