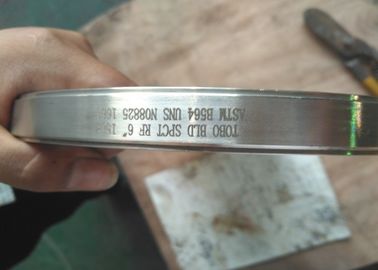

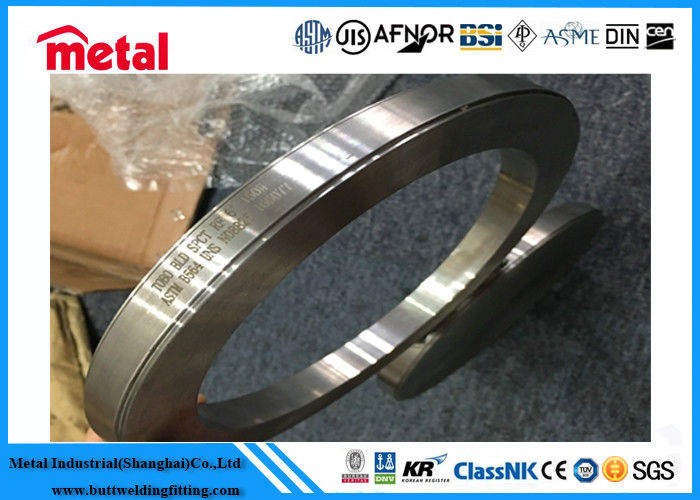

20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection

China 20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection supplier
20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection supplier 20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection supplier

Large Image :  20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection

Product Details:

Place of Origin: China
Brand Name: Metal
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Alloy 20

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: In wooden case, pallets or as per customers' requirement
Delivery Time: 15 Work days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 1000 PCS PER MONTH
Contact Now
Detailed Product Description
Product Name: Spectacle Blinds Flanges Material Grade: NO8020
Material: Alloy 20 Usage: Connection
Technic: Forged Facing Flange: RAISED FACE
OD: 3'' Pressure: 150LB

Forged Flange Alloy 20 Nickel Alloy Pipe Spectacle Blinds Flanges For Connection



Specifications



1. Spectacle blinds Flanges

2. Size: 1/2’’—60’’

3. ISO9001,ISO9000
4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore,

Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform



Product Description



Product Name Spectacle line blinds Flanges
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;

Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)

Some common applications for nickel alloys:

  • Desalination plants
  • Pressure vessels
  • Oil platforms
  • Heat exchangers
  • Seawater handling
  • Pulp bleaching

Chemical Composition



Alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickel 200 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1   -- -- -- -- --
Monel K500 66.5 0.1 0.8 1 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76 0.08 0.5 8 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19 0.5 0.9 5.1 3
Inconel X-715 73 0.04 0.5 7 0.005 0.2 0.2 15.5 0.7 2.5 1 --
Incoloy 800 32.5 0.05 0.8 46 0.008 0.5 0.4 21 0.4 0.4 -- --
Incoloy 803 32.0-
37.0
0.06-
0.10
≤1.5   ≤0.015 ≤1.0 ≤0.75 25.0-
29.0
0.15-
0.60
0.15-
0.6
-- --
Incoloy 825 42 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3



This alloy has the following characteristics:



1. Good resistance to stress corrosion cracking

2. Good resistance to point corrosion and gap corrosion

3. Good antioxidant and non-oxidizing thermal acid properties

4. Good mechanical properties at room temperature and at temperatures up to 550 ℃

5. Certification of pressure vessels with manufacturing temperatures up to 450 ℃



Drawing:

20 Nickel Alloy Pipe Fittings 150LB Spectacle Blinds Flanges For Connection



NICKEL ALLOY



Nickel and nickel-based alloys possess effective resistance to a wide range of corrosive environments , in many cases, some materials such as stainless steel or super stainless steel are unable to resist these corrosive conditions. Nickel itself is a very versatile corrosion-resistant material, while as an alloying element, in a large composition range, nickel possesses Metallurgical compatibility with the other metals ,can be composed of a number of binary and ternary alloys and other complex alloys system,nickel-based alloys have a unique corrosion resistance and high temperature corrosion resistance.to deal with the corrosion problems that include chemical,petrochemical, marine, paper, agricultural chemicals, oil and gas, energy conversion and many other industrial environments. In this artical, the corrosion resistance in aqueous solution of nickel and Part of the nickel-base alloys was discussed.
