Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance

China Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance supplier
Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance supplier Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance supplier

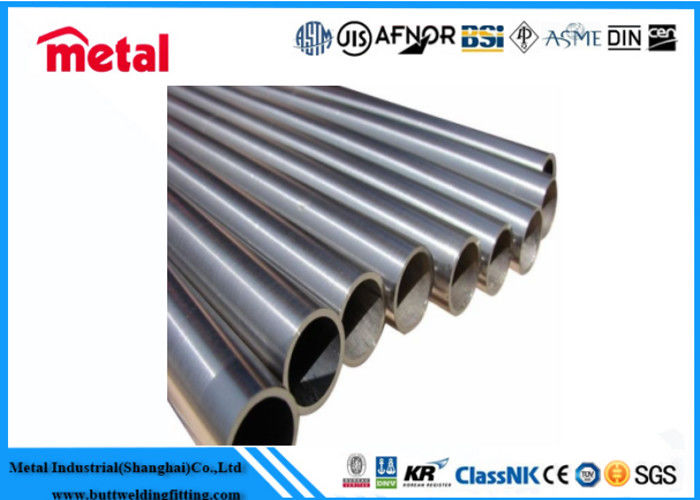

Large Image :  Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance

Product Details:

Place of Origin: Shanghai
Brand Name: TOBO
Certification: SGS,API,ISO
Model Number: TA-P008

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Wooden case or carton case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Type: Titanium Pipes Application: Industrial, Medical,Aerospace
Technique: Seamless Shape: Round
Stock: Yes Surface: Polished

Titanium and Titanium Alloy Pipe Cold Rolled Seamless Pipes ASTM B861



Product Description



Applications
Chemical industry
Blades,discs,rings,airframes,fasteners,components.
Vessels,cases,hubs,forgings.Biomedical implants





Tensile Requirements
Grade Elongation(%) Tensile Strength (Min) Yield Strength (Min)
ksi Mpa ksi Mpa
Gr1 24 35 240 20 138
Gr2 20 50 345 40 275
Gr3 18 65 450 55 380
Gr4 15 80 550 70 483
Gr5 10 130 895 120 828
Gr7 20 50 345 40 275
Gr9 15 90 620 70 438
Gr12 18 70 438 50 345





Features of Titanium

1). High tensile strength;
2). High corrosion resistance;
3). Low density, good thermal stability;
4). Non-ferromagnetic;
5). Good biocompatibility;
6). High temperature and low temperature resistance;
7). High resistance to strong acid and srong alkali and so on.





Titanium Alloy GR.5 Chemiacl Composition(%)

Alloy Designation Element O V Fe Al Ti
Titanium Alloy GR.7 Max.% 0.2 4 0.25 6 90
Mechanical Propeties Titanium Alloy GR.5
Density 4.43g/cm3
Melting Point 1604~1660ºC
Tensile Strength Min (Mpa) 950Mpa
Yield Strength Min (Mpa):0.2% offset 880Mpa
Elongation A 5%(Min.) 65/40
HB Max 334



Extensive applications

1.electrodes in electrolytic industrial
2.condensor for power station
3.heater in petroleum refining and sea water desalination
4.for air pollution control device
5.aviation and aerospace
6.hydrogen storage materials
7.anticorrosive construction materials
8.shape memort alloy





Process methods: cold rolling

Surface delivery conditon:solution annealed and pickled or polished

Length:Max15 meters

Packing: in seaworthy wooden cases or in wooden box

MOQ:100KGS each size

Delivery date: Min. 10 days

Certificates: ISO9001:2000 quality system and Mill test Certificate supplied

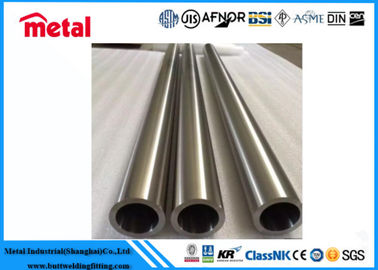

Product preview

Cold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid ResistanceCold Rolled Titanium Alloy Pipe Low Density ASTM B861 Acid Resistance
