Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing

Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing
Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing

Large Image :  Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing

Product Details:
Place of Origin: Shanghai
Brand Name: TOBO
Certification: SGS,API,ISO
Model Number: TA-P004
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Wooden case or carton case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month

Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing

Description
Type: Titanium Pipes Application: Industrial, Medical
Technique: Seamless Grade: Gr.5,Gr.7,Gr.9 Etc
Shape: Round Surface: Pickled
High Light:

titanium exhaust tubing

,

bending titanium tubing

Gr5 Grade5 Ti-6al-4V Titanium Alloy Pipe Seamless Titanium Pipes





Description

Specifications of Titanium Seamless and Welded Tubing



Category Process Outer Diameter Wall Thickness Length Grades
Titanium Seamless Tube /Pipe Hot Extruded 25-210mm 4-30mm Customized



Gr1 Gr2 Gr3 Gr5 Gr7 Gr9 Gr11 Gr12



Cold-rolled 1.5-80mm 0.2-5.5mm Customized
Titanium Welded Tube/Pipe



Welded



10-38mm



0.5-2.1mm



Customized



Titanium Alloy Stainless Steel Pipe and Tube JIS H4600 GR.7 GR.9
Specification:
Outside Diameter:1-1220mm
Wallthickness:3-60mm
Length:As your requirements



Applications
Chemical industry
Blades,discs,rings,airframes,fasteners,components.
Vessels,cases,hubs,forgings.Biomedical implants





Tensile Requirements
Grade Elongation(%) Tensile Strength (Min) Yield Strength (Min)
ksi Mpa ksi Mpa
Gr1 24 35 240 20 138
Gr2 20 50 345 40 275
Gr3 18 65 450 55 380
Gr4 15 80 550 70 483
Gr5 10 130 895 120 828
Gr7 20 50 345 40 275
Gr9 15 90 620 70 438
Gr12 18 70 438 50 345



Titanium Alloy GR.5 Chemiacl Composition(%)

Alloy Designation Element O V Fe Al Ti
Titanium Alloy GR.7 Max.% 0.2 4 0.25 6 90
Mechanical Propeties Titanium Alloy GR.5
Density 4.43g/cm3
Melting Point 1604~1660ºC
Tensile Strength Min (Mpa) 950Mpa
Yield Strength Min (Mpa):0.2% offset 880Mpa
Elongation A 5%(Min.) 65/40
HB Max 334



Applications of Titanium Pipe / Titanium Tube:

  • Marine Industry
  • Chemical and petrochemical industry
  • Pulp and paper industry
  • Sporting goods - golf shafts, bicycle frames, etc.
  • Medical industry
  • Nuclear industry

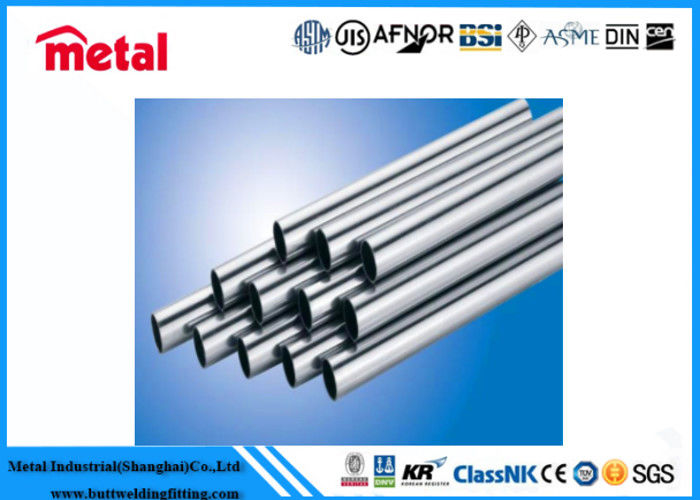

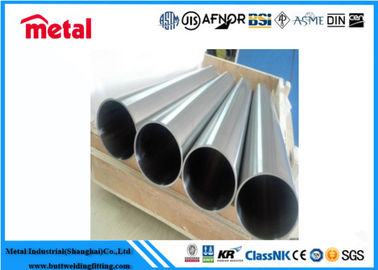

Product preview

Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing 0Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing 1



Company introduction


Shanghai TOBO GROUP has been engaged in flanges, piep fittings more than 7 years. Our experiecnced and professional team of bending, and full tools and equipments make us provide customers almost all kind of metal U-bent tubes with high quality. With our unique manufacturing capabilities, Shang Hai TOBO GROUP also supply customer with value-added service.



Certificates
Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing 2

Packing


Standard export packing, seaworthy packing, bundles, plastic bag, woven bag, wooden cases, plywood case, iron case, or as per customer require
We will reply you in 24 hours. Please remember check your inbox.

Welcome to inquiry. Looking forward to cooperating with you in the near future.



Transportation
Ti - 6al - 4V Grade 5 Titanium Tube , Pickled Surface Seamless Titanium Tubing 3



Why Choose Us?

  • 53 years of titanium R&D and production experience
  • Our products have been exported to more than 30 countries all round the world
  • State-owned company with great credit and strong financial strength
  • Competitive price,best service, strict quality control system and on-time delivery
  • Related Supply Chain Service

FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.





  •
