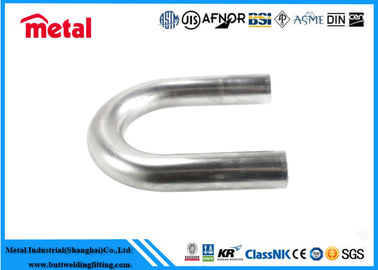

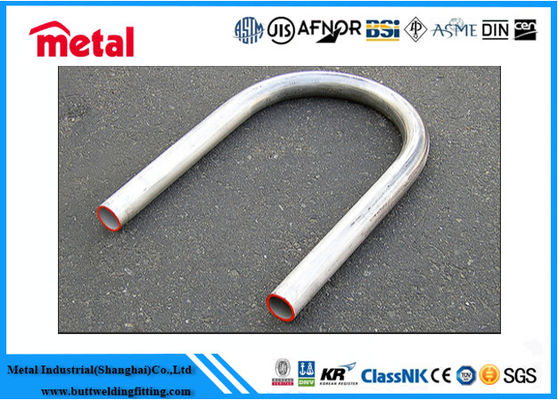

ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes

China ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes supplier
ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes supplier ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes supplier

Large Image :  ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes

Product Details:

Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: UNS 32205

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: In wooden case or according to client's requirement
Delivery Time: 15- 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 PCS per month
Contact Now
Detailed Product Description
Product Name: U-bent Tubes Inspection: AS Per Client Spec
Material: UNS 32205 Standard: ASTM/ASME
Usage: Thermal Power Plant,heating Plant Thickness: 0.5-5.16mm
Surface Treatment:: Galvanized Application:: For Heat Exchanger

ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes



   U Bend Tube are manufactured in our plant as per the customer requirements. Solution annealing after bend will

be process to lower the risidual stress, and followed by hydrostatic testing and dye penetrant testing if required.





Priducts Dimensions Standards Materials Remarks
O.D W.T Length
U-bent Tubes for Heat Exchanger 12.7-76.2mm
(1/2"-3")
0.5-5.16mm
(0.02"-0.203")
Leg Length: 15.24m(50')

Total Length: 32.00m(105)'
ASTM/ASME A/SA213 T5, T11,T12, T22, T9, TP304/304L, TP304H, TP316/316L, TP347/347H, TP316Ti, TP321/321H, TP310S Seamless Ferritic and Austenitic Stainless Steel U-bent Tubes
ASTM/ASME A/SA249 TP304, TP304L, TP316, TP316L…… Welded Stainless Steel U-bent Tubes
ASTM/ASME A/SA789 UNS S31803/32205, UNS S32750…… Duplex Stainless Steel U-bent Tubes
ASTM/ASME A/SA163 Monel400, UNS N06600, 625, Incoloy800/800H, 825…… Seamless Nickel Alloy U-bent Tubes
ASTM/ASME A/SA268 TP405, TP409, TP410, TP430, TP439…… Ferritic and Martensitic Stainless Steel Seamless U-bent Tubes
Seamless and (Welded) Re-drawn Stainless Steel Feed Water Heater U-bent Tubes 12.7-25.4mm
(1/2"-1")
0.7-3.05mm
(0.028"-0.12")
Leg Length: 15.24m(50')

Total Length: 32.00m(105)'
ASTM/ASME A/SA668/213 ASTM/ASME A/SA803 TP304, TP304L, TP304LN TP316, TP316L, TP439 Low Pressure Feed Water Heater of Thermal Power Station



Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L

Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6

Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750

Copper Nickel
C70600(90:10), C71500(70:30), C71640.





Packing and Shipping

Package:Standard export carton packing.

Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to

production season and order quantity.



ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes





1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm

4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis

U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm

U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request





Nickel Alloy
Standard

· ASTM / ASME SB 336

· UNS 10276 (HASTELLOY C 276 )

· UNS 2200 (NICKEL 200 )

· UNS 2201 (NICKEL 201 )

· UNS 4400 (MONEL 400 )

· UNS 8020 (ALLOY 20 / 20) CB 3

· UNS 8825 INCONEL (825 )

· UNS 6600 (INCONEL 600 )

· UNS 6601 (INCONEL 601 )

· UNS 6625 (INCONEL 625 )

· UNS 5500(MONEL K500)

· UNS 8800(INCONEL 800)

· UNS 8810(INCONEL 800H)
