Product Details:
|
Product Name: | U-bent Tubes | Material: | A/SA213 T22 |
---|---|---|---|
Standard: | ASTM/ASME | Surface Treatment:: | Galvanized |
Type: | Short & Long | Stainless Steel Ubend: | 304, 304H, 309 |
Highlight: | u shaped exhaust pipe,u bend exhaust pipe |

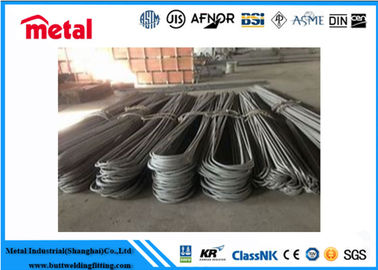

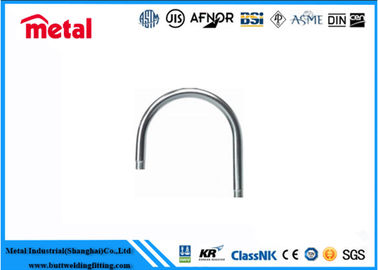

SCH 80 ASTM/ASME U Tube Steel U Fin Tube Seamless Ferritic A/SA213 T22
U Bend Tube are manufactured in our plant as per the customer requirements. Solution annealing after bend will
be process to lower the risidual stress, and followed by hydrostatic testing and dye penetrant testing if required.
Stainless Steel Tubes Size for Heat Exchanger
Inches | Decimal | Millimeters |
1/16″ | .0625 | 1.59 mm |
1/8″ | .1250 | 3.18 mm |
3/16″ | .1875 | 4.76 mm |
1/4″ | .2500 | 6.35 mm |
5/16″ | .3125 | 7.94 mm |
3/8″ | .3750 | 9.53 mm |
7/16″ | .4375 | 11.11 mm |
1/2″ | .5000 | 12.70 mm |
9/16″ | .5625 | 14.29 mm |
5/8″ | .6250 | 15.88 mm |
11/16″ | .6875 | 17.46 mm |
3/4″ | .7500 | 19.05 mm |
13/16″ | .8125 | 20.64 mm |
7/8″ | .8750 | 22.23 mm |
15/16″ | .9375 | 23.81 mm |
1″ | 1.00 | 25.40 mm |
1 1/4″ | 1.25 | 31.75 mm |
1 1/2″ | 1.50 | 38.10 mm |
2″ | 2.00 | 50.80 mm |
Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L
Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6
Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750
Copper Nickel
C70600(90:10), C71500(70:30), C71640.
Packing and Shipping
Package:Standard export carton packing.
Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to
production season and order quantity.
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
Advanced capabilities for U-bent tubes:
Nickel Alloy
Standard
· ASTM / ASME SB 336
· UNS 10276 (HASTELLOY C 276 )
· UNS 2200 (NICKEL 200 )
· UNS 2201 (NICKEL 201 )
· UNS 4400 (MONEL 400 )
· UNS 8020 (ALLOY 20 / 20) CB 3
· UNS 8825 INCONEL (825 )
· UNS 6600 (INCONEL 600 )
· UNS 6601 (INCONEL 601 )
· UNS 6625 (INCONEL 625 )
· UNS 5500(MONEL K500)
· UNS 8800(INCONEL 800)
· UNS 8810(INCONEL 800H)
