Product Details:
|
| Material: | ASTM A182 F321 | Standard: | ASME B16.9 |
|---|---|---|---|
| Type: | 90 Degree Butt Welding Elbow L/R | Application: | Gas Exhaust;power Plant;ship Buliding;water Treament,etc. |
| Size: | 1/2"-36" Seamless, 26"-110" Welded | Certificate: | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, Etc. |
Stainless Steel Pipe Fittings 90° LR BW Elbow OD 3" SCH40S ASTM A182 F321 Fittings
| Porduct Name | Elbow |
| Size | 1/2"-36" seamless, 26"-110" welded |
| Standard | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc. |
| Wall thickness | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Elbow | 30° 45° 60° 90° 180°,etc |
| Radius | LR/long radius/R=1.5D,SR/Shrot radius/R=1D, Various radius: 2.5D, 3D, 5D, 10D, 20D etc. |
| End | Bevel end/BE/buttweld |
| Surface | nature color, varnished, black painting, anti-rust oil etc. |
| Material | Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH, P295GH, P355GH etc. |
| Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
| Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc. | |
| Application | Petrochemical industy;avation and aerospace industry;pharmaceutical industry; |
| gas exhaust;power plant;ship buliding;water treament,etc. | |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |

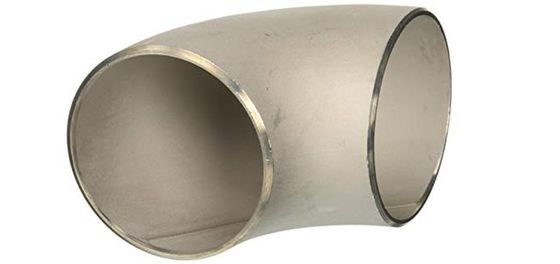

Introduction of Elbows
In a pipe system, an elbow is a pipe fitting that changes the direction of the pipe. According to the angle, there are three most commonly used elbows: 45 ° and 90 ° and 180 °. In addition, 60 ° and other abnormal angle elbows are also included according to the needs of the project. Elbow materials include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.
The connection methods with pipes include direct welding (the most commonly used method), flange connection, hot melt connection, electric fusion connection, threaded connection and socket connection. According to the production process, it can be divided into: welding elbow, stamping elbow, pushing elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.
When the temperature reaches 800-1500 ° f (427-816 ° C) and chromium carbide precipitates, it can still maintain good resistance to intergranular corrosion. Due to the addition of titanium in the composition, the 321 alloy can still maintain stability when chromium carbide is formed.
321 alloy stainless steel has advantages in high temperature environment due to its excellent mechanical properties. Compared with 304 alloy, 321 alloy stainless steel has better ductility and stress fracture resistance.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
