Product Details:
|
| Name: | Butt Welding Pipe Fittings | Material: | A403 WP316 |
|---|---|---|---|
| Type: | TEE | Size: | 4 Inch |
| Standard: | ASME B16.9 | Usage: | Oil Gas Sewage Transport |
| Surface: | Smooth |
Stainless Steel Pipe Fittings Butt Welding Pipe Fttings BW Tee A403 WP316 4" SCH40S ASME B16.9
Introduction

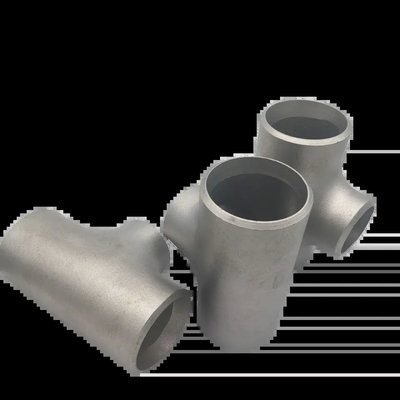

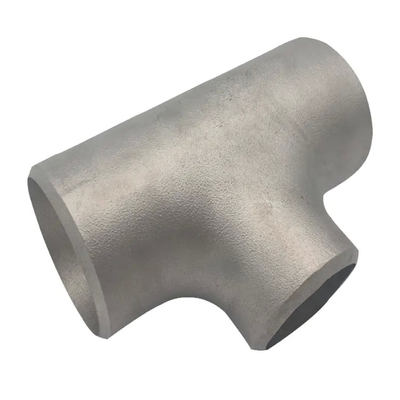

Tee is a pipe fitting and pipe connector, which is used at the branch pipe of the main pipe. Equal diameter tee is a kind of tee. There are two kinds of tee: General equal diameter tee and reducing tee. It is named because the three ends can be connected with the pipe.
It is widely used in the construction of urban roads, chemical plants, liquefied petroleum gas, chemical industry, sanitation, etc. The pressure of this kind of pipe fitting is high in industry, and the maximum pressure can reach 600kg. The pressure of water pipe in life is low, generally 16KG.
Overview and features:316 stainless steel
Due to the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good, and can be used under harsh conditions; Excellent work hardening (non-magnetic); Excellent high temperature strength; No magnetism in solid solution state; Cold rolled products have good gloss and beautiful appearance; Compared with 304 stainless steel, the price is higher.
The corrosion resistance, and high temperature strength of 316 stainless steel have been greatly improved due to the addition of Mo element. The high temperature resistance can reach 1200-1300 degrees and can be used under harsh conditions.
Uses: seawater equipment, chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
| Product Name | Equal / Reducing Tee, |
| Size | 1/2’’~48' |
| Thickness | Sch5S~Sch80 |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
| Stainless Steel |
WPXM-19 ,WP304,WP304L, WP304H,WP304N, WP304LN,WP309,WP310S, WP31254,WP316,WP316L, WP316H,WP316N,WP316LN, WP317,WPS31725,WP31726, WP321,WP321H,WPS33228, WPS34565,WP347,WP347H, WP348,WP348H |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
