Product Details:
|
| Application: | Structure Pipe,Oil Pipe | Technique: | Hot Rolled,Cold Drawn |
|---|---|---|---|
| Usage: | Construction Structure,super Heater | Product Name: | Nickel Alloy Steel Pipe |
| Alloy Or Not: | Is Alloy | Thickness: | Customized |
| High Light: | Nickel 200 Steel Pipe,N02200 Steel Pipe,12mm Thickness Steel Pipe |
||

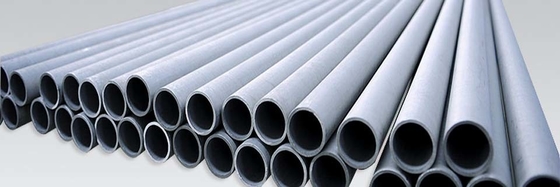

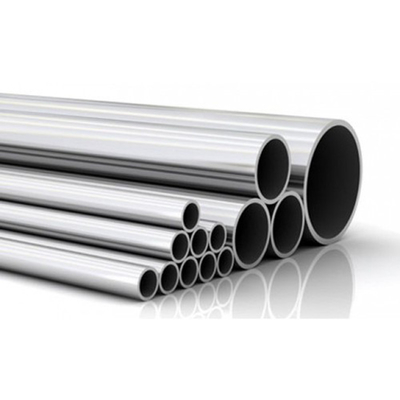

Nickel 200 UNS N02200 Steel Pipe Outer Diameter 12 mm Wall Thickness 12 mm
Introduction
Nickel 200 is a solid solution strengthened, commercially pure wrought materials with excellent mechanical properties and resistance to corrosion. It also has exceptional resistance to caustic alkalis at different concentrations and temperatures. However, the corrosion resistance is better in de-aerated acid. The alloy has low gas content and vapor pressure, and high thermal and electrical conductivities
The following table shows the physical properties of Nickel 200 alloy.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.89 g/cm3 | 0.321 lb/in3 |
| Melting point | 1435-1446°C | 2615-2635°F |
The mechanical properties of Nickel 200 alloy are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength (annealed) | 462 MPa | 67000 psi |
| Yield strength (annealed) | 148 MPa | 21500 psi |
| Elongation at break (annealed prior to test) | 45% | 45% |
The thermal properties of Nickel 200 alloy are given in the following table
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 13.3 µm/m°C | 7.39 µin/in°F |
| Thermal conductivity | 70.2 W/mK | 487 BTU.in/hrft².°F |
