Product Details:
|
| Standard Or Nonstandard: | Standard | Standard: | B564 |
|---|---|---|---|
| Size: | Customized | Material: | Nickel Alloy |
| Product Name: | Hubbed Slip-on Welding Plate Flange | Application: | For Boating Industry |
| Pressure: | Class150/300/600/9001500/2500 | Thickness: | Customized |
| High Light: | Hubbed Slip - On Welding Flange,Nickel Alloy Welding Flange,N04400 Welding Flange |
||

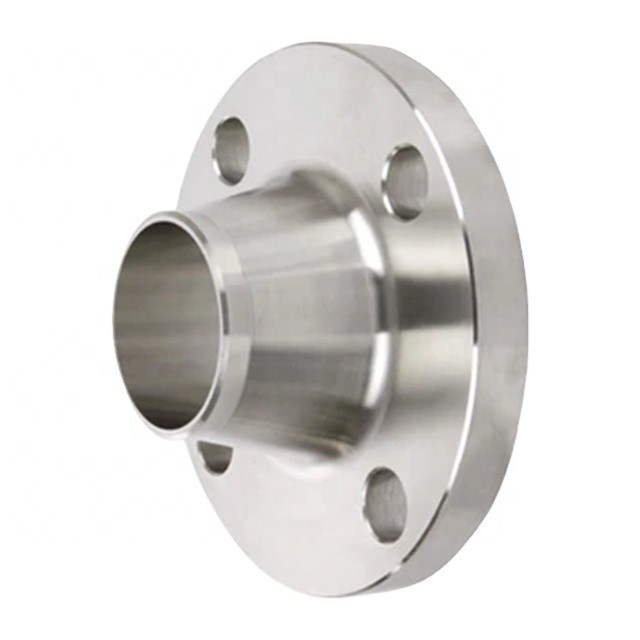

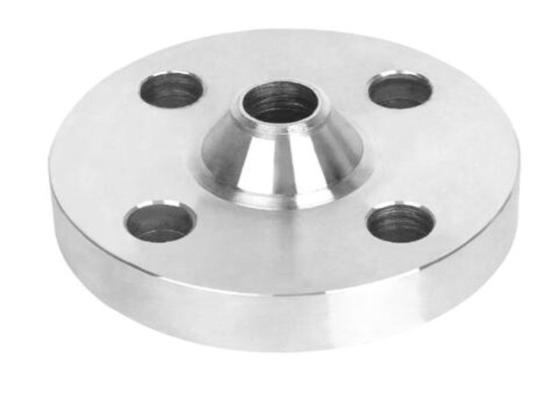

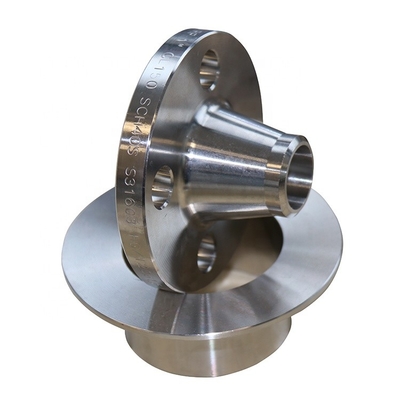

Professional Hubbed Slip-On Welding Flange Nickel Alloy B564 N04400 6"150#
| flangeType | Professional Hubbed Slip-On Welding Flange Nickel Alloy B564 N04400 6"150# |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
The bore size of a slip-on flange is larger than the outside diameter of the connecting pipe, as the pipe has to slide inside the flange to be connected by the execution of a fillet weld. Slip-on flanges are also defined “Hubbed Flanges” and they are easy to recognize due to their slim and compact
