Product Details:
|
| Tolerance: | D4/T3 (±0.5%,±0.1 Min)/(±10%,±0.2 Min | Material: | 201 202 304 316L 310S 309S 321 316Ti 410 420 430 409 Duple,SAF2205,S31803 Etc. |
|---|---|---|---|
| Standard: | ASTM A213, A249, A312, A269, A688, DIN 17455, EN 10217-7 Etc. | Outer Diameter: | DN10-DN1200,3/8"-100",6-2500mm |
| Wall Thickness: | SCH5-SCH160,XS,STD,XXS,0.5-150mm | Packaging Details: | Standard Export Sea-worthy Packing |
| High Light: | 5.8m Duplex Stainless Steel Pipe,SCH160 Duplex Stainless Steel Pipe,ASTM A213 Duplex Stainless Steel Pipe |
||

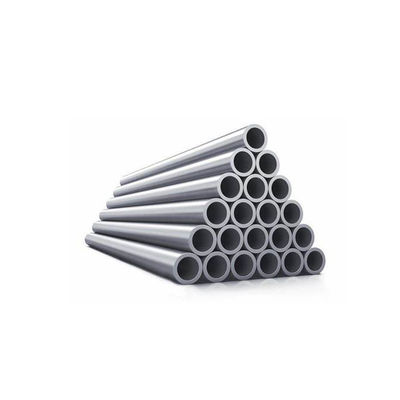

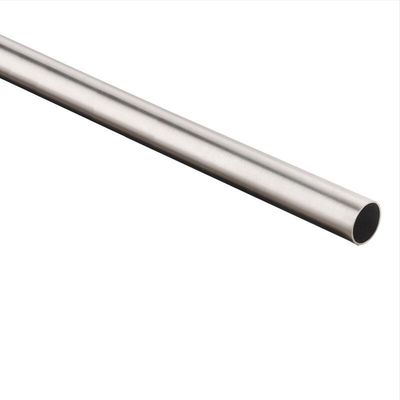

stainless steel welded pipes Super Duplex Stainless 5.8m,6m,11.8m,12m,or as required
Duplex stainless steel has superior strength, corrosion resistance and versatility, and can therefore be used in many different industrial applications.Each duplex stainless steel grade we offer has qualities that help it operate successfully in corrosive environments.
| Brand Name | TOBO |
| Product Name | stainless steel welded pipes |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Place of Origin | Shanghai China (Mainland) |
| Outer Diameter | DN10-DN1200,3/8"-100",6-2500mm |
| Wall Thickness | SCH5-SCH160,XS,STD,XXS,0.5-150mm |
| Length | 5.8m,6m,11.8m,12m,or as required |
| Surface | Annealing,picking,polished,bright,hair line,brush,sand blast,etc |
| Tolerance | D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min |
| Material | 201 202 304 316L 310S 309S 321 316Ti 410 420 430 409 duple,SAF2205,S31803 etc. |
| Standard | ASTM A213, A249, A312, A269, A688, DIN 17455, EN 10217-7 etc. |
| Minimum Order Quantity | 1kg |
| Price | Depending on quantity |
| Payment Terms | T/T or Western Union or LC |
| Supply Ability | 3,0000pcs per month |
| Delivery Time | 10-50 days depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Container Size | 20ft GP: 5898mm( Length )x2352mm( Width )x2393mm( High ) ,20-25 Metric ton 40ft GP: 12032mm( Length )x2352mm( Width )x2393mm( High ) ,20-25 Metric ton 40ft HC: 12032mm( Lengh )x2352mm( Width )x2698mm( High),20-25 Metric ton |
| Process Method | Polished, cold drawn, annealed with nitrogen protection, ultrasonic,automatic shape etc |
| Finishing | A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
| Application | 1. Instrument Tubing 2. Chromatography tubing 3. Hydraulic Tubing 4. High Pressure Tubing 5. Cleaned Tubing 6. Multi Core Tubing |
