Product Details:
|
| Material: | Super Duplex Steel | Standard: | Standard: JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Packing: | Usual In Wooden Cases | Head Shape: | Round |
| Length: | 0.1-12M | Technique: | Hot Rolled |
| Type: | Round Bar | Model Number: | ASTM B691 Alloy Al6XN UNS N08367 |
| Shape: | Round | ||
| High Light: | UNS N08367 Nickel Alloy Bar,Alloy Al6XN Nickel Alloy Bar,ASTM B691 Nickel Alloy Bar |
||

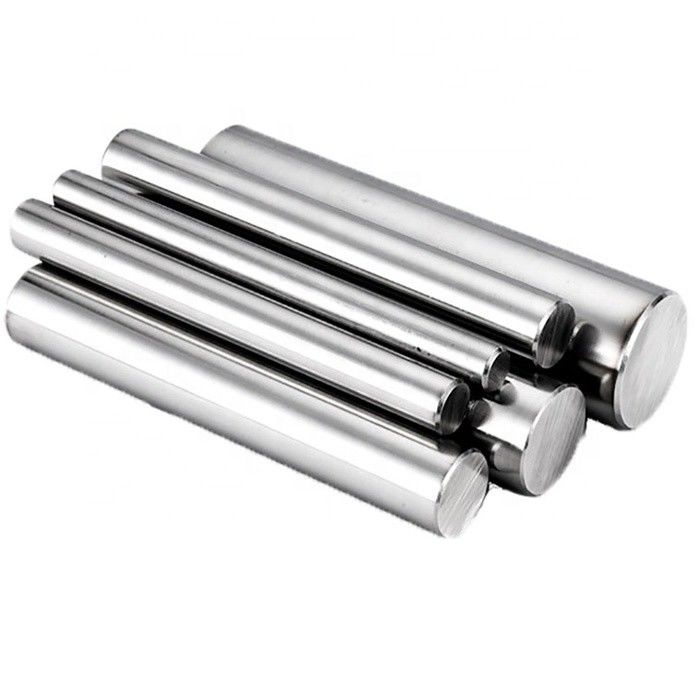

11" Diameter Alloy Al6XN UNS N08367 Nickel Alloy Bar ASTM B691
Product Description
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B691 / ASME SB691
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
ASTM B691 AL6XN Round Bars Equivalent Grades
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
AL6XN |
1.4529 |
N08367 |
Chemical Composition of AL6XN Round Bars
|
Grade |
C |
Mn |
Si |
S |
N |
Cr |
Ni |
|
AL6XN |
0.03 max |
2.00 max |
1.00 max |
0.03 max |
0.18-0.25 |
20.00- 22.00 |
23.50- 25.50 |
Mechanical Properties of AL6XN / N08367 / 1.4529 Round Bars
|
Element |
Density |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
AL6XN |
8.1 g/cm3 |
Psi – 110000, MPa – 760 |
Psi – 55100, MPa – 380 |
45 % |
AL-6XN (AL6XN / UNS N08367) Super-Austenitic Stainless Steel
6.3% molybdenum
Over 25 years of proven seawater service
Practical immunity to chloride stress cracking
50% stronger than stainless
ASME coverage up to 800°F
Easily welded
Available in ALL product forms
AL-6XN alloy (UNS N08367) is a low carbon, high purity, nitrogen-bearing "super-austenitic" stainless alloy. The AL-6XN alloy was designed to be a seawater resistant material and has since been demonstrated to be resistant to a broad range of very corrosive environments. The high strength and corrosion resistance of the AL6XN alloy make it a better choice than the conventional duplex stainless steels and a cost effective alternative to more expensive nickel-base alloys where excellent formability, weldability, strength and corrosion resistance are essential.
Performance Profile
The levels of chromium, molybdenum and nitrogen in AL-6XN all serve to provide resistance to acidic oxidizing chloride solutions previously achieved only by the nickel base alloys. High nickel (24%) and molybdenum (6.3%) contents make AL-6XN a solution to chloride ion stress corrosion cracking. Because of its nitrogen content, AL-6XN has greater tensile strength than common austenitic stainlesses, while retaining high ductility and impact strength. The ASME allowable stresses for AL-6XN are up to 75% higher than for 316L stainless, and more than twice those for the copper-nickel alloys.
Inventory
Features
Excellent resistance to pitting and crevice corrosion in chloride solutions
Practical immunity to stress corrosion cracking in NaCl environments
High strength and toughness
Applications
