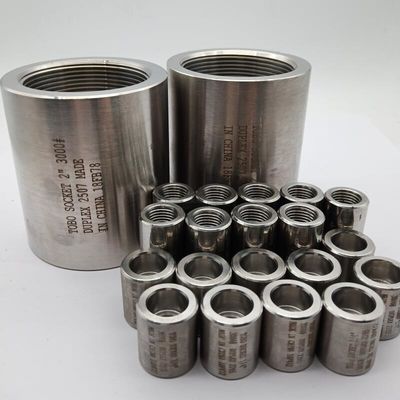

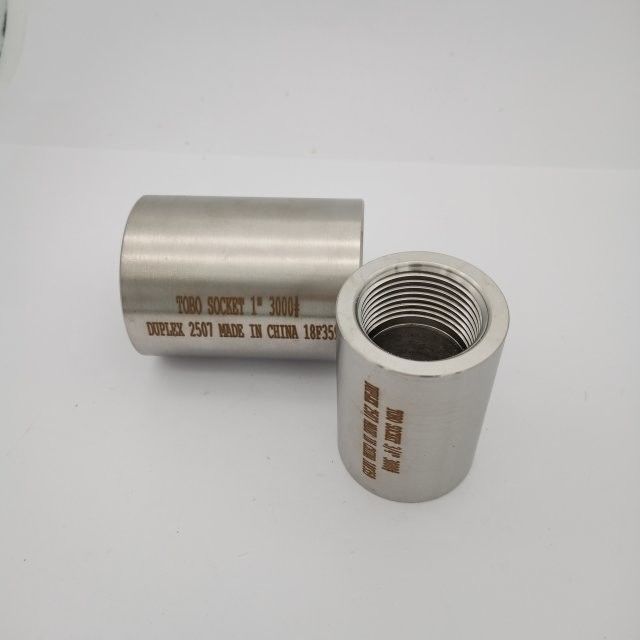

Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting

Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting
Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting

Large Image :  Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: 2507
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD Negotiated
Packaging Details: Ply wooden case
Delivery Time: According to qtys
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Ton/month

Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting

Description
Material: 2507 Size: Customized
Grade: P9/ P5 Surface Finish: Pickled And Annealed, Bright Annealed, Polished
High Light:

NPT Normal Thread Pipe Fitting

,

Duplex 2507 Thread Pipe Fitting

,

P9 Thread Pipe Fitting

3000# Duplex Stainless Steel 2507 NPT Normal Thread Pipe Fitting



FEATURES

2507 is a duplex stainless steel with nearly equal proportions of austenite and ferrite when properly heat treated. This microstructure makes it much more resistant to stress corrosion cracking than stainless steel 304 and 316L. 2205’s higher chromium, molybdenum and nitrogen contents give it sihnificantly improved pitting and crevice corrosion resistance in the presence of chlorides. Its yield strength is about twice that of austenitic stainless steels. It is highly suitable for applications in environments containing chlorides and hydrogen sulfide such as marine applications and oil and gas production.



APPLICATIONS

Oil and gas industry piping, tubing and heat exchangers; pilp and paper industry bleaching equipment, liquor tanks and digesters; cargo tanks for ships and trucks; chemical processing industry pressure vessels, tanks, piping and heat exchangers; and food processing equipment.



Size 1/2"-2 4" ,DN15-DN600 24"-72",DN600-DN1800
Material ASTM Carbon steel: (ASTM A234WPB,,A234WPC,A420WPL6.
Stainless steel: (ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10 00Cr17Ni14Mo2, ect.)
Alloy Steel: A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6,A420WPL3
DIN Carbon steel: St37.0,St35.8,St45.8
Stainless steel: 1.4301,1.4306,1.4401,1.4571
Alloy steel: 1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel: PG370,PT410
Stainless stee: SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel: PA22,PA23,PA24,PA25,PL380
GB 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,12CrMo, 12CrMoG, 12Cr1Mo
Standard ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
Application Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power
Pressure Sch5--Sch160,XXS
Shape Equal, round
Technics Forged



Industries & Applications:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries





We usually pack the pipes in woven bags, wooden case is availbe if customer request, but need add more packing fee, if for fittings do not need, as fittings we packing with wooden case for standard.





Our nickel alloys are adopted for use in tough environments as oil platforms and desalination plants. By us you find nickel alloys with corrosion resistance, good weldability and formability.



With a nickel alloy from us you get a material adopted for use in tough environment. Within our product range you can find corrosion resistance alloys, welding alloys and nickel alloys for electrical resistance and electronic instruments. We also have high temperature alloys. By varying the combination of different chemical elements a wide range of useful properties can be achieved as high corrosion resistance, high rupture strength, toughness, metallurgical stability, good fabricability, creep strength and good fatigue life.

Class 3000 Duplex 2507 NPT Normal Thread Pipe Fitting 0





 FAQ:





Q1. What is your terms of packing?


A: Generally, we pack pipe in woven bags, and fittings in wooden case.

Q2. How about your delivery time?


A: Generally, CS have stock only need time to cutting or surface dealing, can be shipped within one week after the payment received, delivery time for special material depending on the qtys.

Q3. Can you produce according to the samples?


A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is your sample policy?


A: Sample availbe, but have to pay, the money can be reduce in the official order.

Q5. Do you test all your goods before delivery?


A: Yes, MTC can be shipped together with the cargo if customer need it.

Q6: How do you make our business long-term and good relationship?


A:1. We keep good quality and competitive price to ensure our customers benefit ;
A 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
