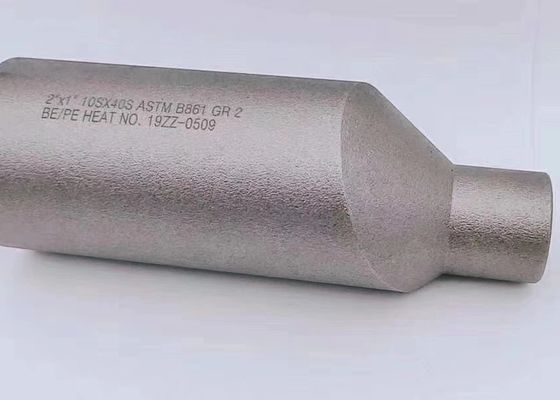

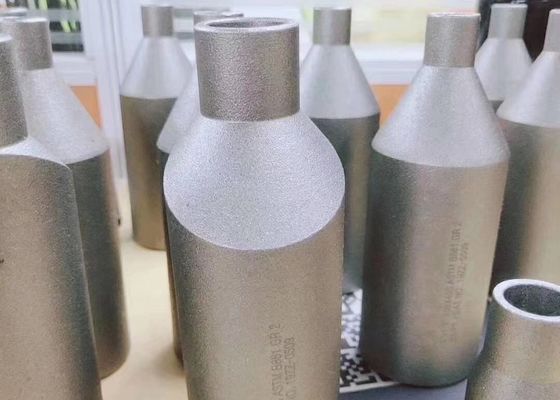

2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11

2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11
2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11 2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11

Large Image :  2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/TUV
Model Number: Swage Nipple
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotation
Packaging Details: ply-wooden case
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 PC/Month

2'' x 1' BE/PE ASTM B861 GR2 Titanium Ti2 Eccentric Swage Nipple B16.11

Description
Product Name: Swage Nipple Shape: Round
Material: ASTM B861 GR2 Type: BE/PE
Application: Connect Pipes, Gas, Oil, Water, Industry Surface Treatment: Hot Galvanized, Oil, Polish180.320.420, Sand Blasting, Sand Blast
Color: Silver MOQ: 10 PCS
High Light:

Ti2 Swage Nipple

,

GR2 Swage Nipple

,

ASTM B861 Swage Nipple

2'' x 1'' SCH10S x SCH40S BE/PE Swage Nipple ASTM B861 GR2 Titanium Ti2

Specifications:



  • Outlet’s: 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

  • Stainless Steel Sockolet

  • Standard: ASTM / ASME A/SA 182

  • Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.



Swage Nipples Definition:



A pipe nipple is a length of straight pipe with male threads on both ends. It is one of the most popular category of pipe fittings. It is a connector or a coupling threaded on both ends. PBE Pipe nipples are used to allow plumbing to be connected to a water heater or other plumbing. They are used to fit straight end hose or pipe. A combination of pipe nipples are recommended for low-pressure discharge and suction service for various compatible liquids and not for compressible products like air, nitrogen or steam.

Swage nipples are often used in small diameter pipe systems, and are similar to butt weld reducers. They are concentric and eccentric available, with various ends. The most common types are:

  • PBE nipple = Plain Both Ends

  • BBE nipple= Beveled Both Ends

  • TBE nipple= Treaded Both Ends



Titanium usage in different:



CP grade1 can be used in the deep drawing parts for it's good elogation and excellent corrossion-resistance.

CP grade2 is widely used in the commercially pure Titanium.

CP grade3 is almost only used in the pressure vessel.

CP grade4 can be used in some fittings and fastening pieces,but for complete shape need 300 degree celsius to form



Alloy Gr5 ,Ti6AL4V,is one of the most popular Ti alloys because of itscomprehensive

mechanical,physical and chemical properties.

Alloy Gr7,add little palladium in cp Titanium and it has the most excellent corrosion-resistence

Alloy Gr9,Ti3AL2.5v,is used mostly in the golf clubs and bicycle girders.



Alloy Gr12,it has the similar properties with the grade7.

TItanium tube process:

Titanium sponge→Compacting electrodes→Melting→Foring→Bar billets→ Extruding→Rolling→Strightening→Seamless Tubes


Duplex Steel:



  • Standard: ASTM / ASME A/SA 182

  • Grade: F44, F45, F51, F53, F55, F60, F61


Carbon Steel:



  • Standard: ASTM A105/A694/ A350 LF3/A350 LF2.

  • Grade: F42, 46, 52, 56, 60, 65, 70


Alloy Steel:



  • Standard: ASTM A182

  • Grade: F1, F5, F9, F11, F22, F91



Copper Alloy:



  • Standard: ASTM / ASME SB 61, 62, 151, 152.

  • Grade: UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640



Product Details:



Product Name

Titanium Alloy Steel Pipe Fittings

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

ASTM:R50250-R56400Pipe

Materials

Stainless steel:ASTM/ASMES/A182F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347|316Ti | 309S |310S |409|410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA

Nickel Alloy: ASTM/ASME S/B366 UNS N08020| N04400|N06600| N06625| N08800| N08810|N08825| N10276|N10665|N10675|Incoloy 800 | Incoloy 800H | Incoloy 800HT | Incoloy 825 | Incoloy 901 | Incoloy 925 | Incoloy 926, Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317LS32750 | S32760
Nimonic: Nimonic 75 | Nimonic 80A | Nimonic 90
Duplex Steel: ASTM A182 F51 | F53 | F55, S32101 | S32205|S31803 | S32304
Alloy Steel: ASTM/ASME S/ A182 F11 | F12 | F22 | F5 | F9 | F91

Ti alloy:ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5

Carbon steel: API 5L...

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Applications

Ø EN 1.4835 has a good weldability and can be welded using the following methods:

  • Shielded metal arc welding (SMAW)

  • Gas tungsten arc welding, GTAW (TIG)

  • Plasma arc welding (PAW)

  • Gas metal arc GMAW (MIG)

  • Submerged-arc welding (SAW)

  • Typical application areas for 1.4835:

  • Ovens

  • Construction

  • Building

  • As details at high temperature

Advantages

  • Corrosion Resistance

  • Heat Resistance

  • Heat Treatment

  • Welding

  • Machining





Material Description


Common titanium material

Alloy composition

GB

ATME

JIS

DIN

Ti

TA0

R50250/GR.1

1type

3.7025



TA1

R50400/GR.2

2type

3.7035



TA2

R50550/GR.3

3type

3.7055



TA3

R50700/GR.4

4type

3.7065



TA7

GR.6



3.7115

Ti-0.23Pb

TA9

R52400/GR.7

12type

3.7235

Ti-0.3Mo-0.8Ni

TA10

R53400/GR.12



3.7105

Ti-3Al-2.5V

TC2

R56320/GR.9





Ti-6Al-4V

TC4

R56400/GR.5

60type

3.7175
