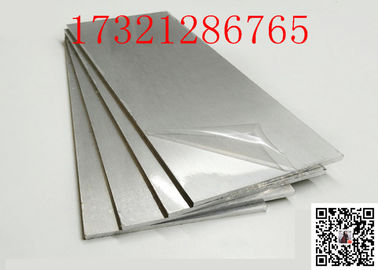

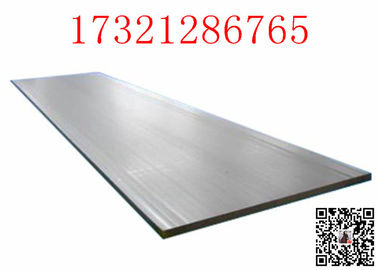

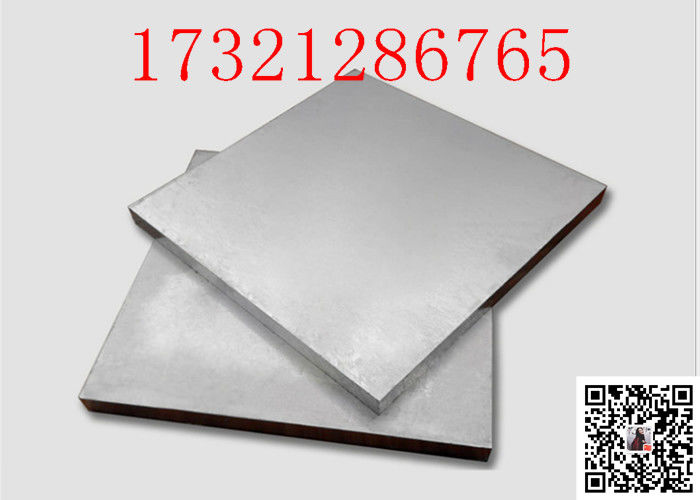

Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate

Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate
Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate

Large Image :  Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate

Product Details:
Place of Origin: China
Brand Name: baosteel&TISCO
Certification: 3.1
Model Number: P1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: As customer's request
Delivery Time: 7
Payment Terms: T/T
Supply Ability: 10000

Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate

Description
Material: Duplex Stainless Steel Type: Coil&Plate
Grade: S31803 Method: Hot Rolled
Surface Treatment: 2B Finish Application: Construction
High Light:

UNS31803 Super Duplex Steel Plate

,

F51 Super Duplex Steel Plate

,

ASTM A240 Duplex Steel Plate

Ready To Ship UNS31803 F51 Hot Rolled Steel Plate Stainless Steel Pipe Fittings ASTM A240



We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.

Brands: METAL / TOBO / TPCO / TISCO / BAO STEEL / WISCO / POSCO / JFE / VALIN
No. of Employees: 200~300 People
In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on .



Products Name Plate/Coil/Sheet
Material Stainless Steel Special Alloy
Brand Tisco,Baosteel,Lisco, etc.
Standard GB DIN ISO JIS ASTM
Thickness 0.3-6mm (Cold Rolled), 3-100mm(Hot Rolled)
Length As Request
Width 1000mm/1219mm/1220mm/1500mm/1800mm/2000mm
Finish 2B embossed, vibration,mirror, Hairline
Certificate ISO,SGS,IBR,etc.
Grade N08810 N08825 N06600 N06625 4J36 S31254 S31050 00Cr18Ni4Mo3 630 201 202 301 302 305 304H 304 304L 316 316L 309S 310S 317 321 410 430 904L Duplex etc
Standard Duplex Stainless Steel (S32205)
UNS S31803
WERKSTOFF NR. 1.4462



Chemical Properties



Grade C Mn Si P S Cr Mo Ni N
S31803

0.03
max

2.0
max

1.0
max

0.03
max

0.02
max

min: 21.0 max: 23.0 min: 2.5 max: 3.5 min: 4.5 max: 6.5 min: 0.08 max: 0.20



Mechanical Properties


Grade Tensile Strength ksi(min) Yield Strength 0.2% ksi (min) Hardness (HB) MAX Elongation %
S31803 90 65 217 25


Duplex

Duplex stainless steels have a mixed microstructure of austenite and ferrite, the aim being to produce a 50/50 mix, although, in commercial alloys, the mix may be 40/60 respectively.
Duplex steels have improved strength over austenitic stainless steels and improved resistance to localised corrosion, particularly pitting, crevice corrosion and stress corrosion cracking. They are characterised by high chromium (19–28%) and molybdenum (up to 5%) and lower nickel contents than austenitic stainless steels. The most used duplex stainless steels are the 2205 (22% Chromium, 5% Nickel) and the 2507 (25% Chromium, 7% Nickel); 2507 is known as “super duplex” due to its higher resistance to corrosion.
The mechanical properties of Duplex steels are approximately double those of singular austenitic steels, and resistance to stress corrosion cracking is far superior to type 316 stainless steel in chloride solutions. Duplex steel has a ductile or brittle transition at approximately -50 degrees.

Super Duplex

Super Duplex Stainless Steel is known to have better stress corrosion, cracking resistance and mechanical properties than any other type of steel. Super Duplex is an austenitic-ferritic iron chromium – nickel alloy with molybdenum addition. It has good resistance to pitting and a very good tensile strength and high resistance to stress corrosion cracking at moderate temperatures, compared to that of conventional austenitic stainless steels.


GRADE UNS NO DIN/WERKSTOFF
DUPLEX S31803/S32205 1.4462
SUPER DUPLEX S32760/S32750 1.4501/1.4410


Super duplex is a stainless steel with a dual phase microstructure, it is made up of roughly 50% of austenitic and 50% of ferrite.

Super Duplex. Super Duplex Stainless Steel is known to have better stress corrosion, cracking resistance and mechanical properties than any other type of steel. Super Duplex is an austenitic-ferritic iron chromium – nickel alloy with molybdenum addition.

A duplex communication system is a point-to-point system composed of two or more connected parties or devices that can communicate with one another in both directions.

The main difference between simplex, half duplex, and full duplex is that in a simplex mode of transmission the communication is unidirectional whereas, in the half-duplex mode of transmission the communication is two directional but the channel is alternately used by the both the connected device.



We are professional pipe & pipe fittings supplier, and we have our own factory, our main products including plate, coil& strip, flanges, pipes&tubes, valves and more pipe fittings.

The materials including: copper nickel, super duplex stainless steel, duplex, super duplex stainless steel, stainless steel, alloy steel and carbon steel.

Below are some of our related products:



 Hot Rolled UNS31803 F51 ASTM A240 Super Duplex Steel Plate 0
If you are searching for these, please kindly let us know your specific request, such as the specific material, size, even how many qtys you need.

Looking forward to hearing from you!!!
