Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance

Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance
Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance

Large Image :  Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance

Product Details:
Place of Origin: China
Brand Name: Metal
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: ASTM B564 N10675
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: In wooden case, pallets or as per customers' requirement
Delivery Time: 15 Work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 PCS PER MONTH

Forged Asme Flange 150# Pressure SCH40 Thickness ISO9001 High Performance

Description
Product Name: WeldoFlanges Type: Forged Flange
Material: ASTM B564 N10675 Standard: ASME B16.48
Usage: Connection Pressure: 150#
OD: 2''x1'' Thickness: SCH40
High Light:

forged steel flanges

,

spectacle blind flange

Nickel Alloy Steel Flanges WeldoFlanges 2''x1'' Sch40 150# ASTM B564 N10675



Specifications

  1. Nipo Flange
  2. Size: 1/2’’—60’’
  3. ISO9001,ISO9000
  4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
  5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform



Product Description



Product Name Nipo Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials

Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L, UNS S32750, UNS S32760
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55, UNS S31803, UNS S31254
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

ASTM A516 GRADE 70

Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)

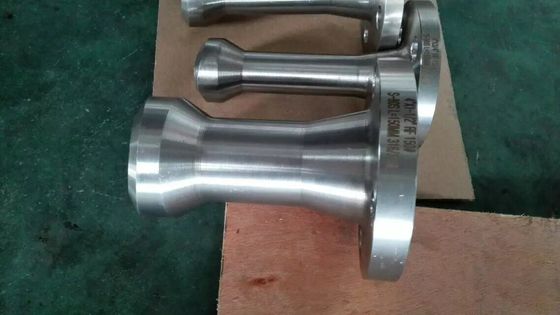

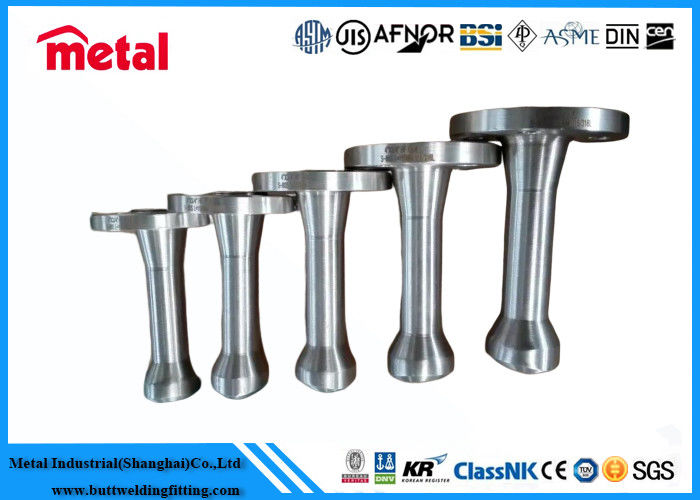

ASME/ANSI B16.5 stainless steel RF nipo-flange



Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.

A Nipoflange is a combination of weldolet, nipolet and flange.

Two different pipe branch connectionsOn the run pipe side a nipoflange is designed like a weldolet.

That means the branch connection on the run pipe side is a welding connection. On the other side there

it has a flange connection. The flange connection can be designed according to customers requirements (acc. To DIN or ANSI).


Alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickel 200 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1   -- -- -- -- --
Monel K500 66.5 0.1 0.8 1 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76 0.08 0.5 8 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19 0.5 0.9 5.1 3
Inconel X-715 73 0.04 0.5 7 0.005 0.2 0.2 15.5 0.7 2.5 1 --
Incoloy 800 32.5 0.05 0.8 46 0.008 0.5 0.4 21 0.4 0.4 -- --
Incoloy 803 32.0-
37.0
0.06-
0.10
≤1.5   ≤0.015 ≤1.0 ≤0.75 25.0-
29.0
0.15-
0.60
0.15-
0.6
-- --
Incoloy 825 42 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3



Other Products



Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

Incoloy Alloy Steel Flange : ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT

Hastelloy Steel Flange: ASTM AB564 , C276/ NO10276 , Monel Alloy 400 /NO4400, K500/NO5500,



Packaging & Shipping



Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China
