Product Details:
|
| Product Name: | 45 Degree Elbow | Material: | Incoloy800H |
|---|---|---|---|
| Standard: | ASME B 16.9 | Type: | 45 Degree |
| Technique: | Seamless | Section Shape: | Round |
| Usage: | Gas, Oil | MOQ: | 1PC |
| High Light: | carbon steel pipe fittings,alloy pipe fittings,butt weld pipe fittings |
||

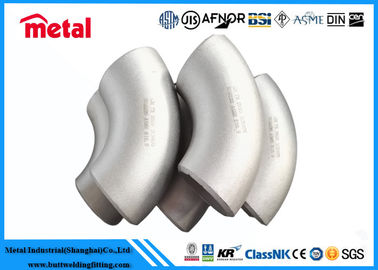

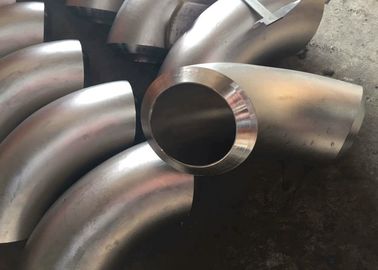

Nickel Alloy 45 Deg LR Seamless Elbow Incoloy 800H, UNS N08810
Product name: Incoloy800H/UNS N08810
General international names: Incoloy alloy 800/800H/800HT,UNS N08800/ N08810/ N08811,W. Nr./EN1.4876,1.4958/1.14959, Nicrofer 3220 alloy 800/800H/800HP,NAS 800/800H/800HT,ATI 800/800H/800AT
National standards: ASTM B409/ASME SB-409,ASTM A240/ ASME SA240
Main components: (C)≤0.10,(Mn)≤1.5,(Ni)30.0～35.0,(Si)≤1.0,(P)≤0.02,(S)≤0.015,(Cr)19.0～23.0,(Fe) ≥ 22.0,(Al) 0.15～0.6,(Ti) 0.15～0.6,(Cu) ≤0.7
Physical Properties: Density: 8.1g/cm3, melting point: 1357-1385 ℃
|
Product Name |
45° Seamless Elbow |
|
Size |
1/2’’~10’’(Seamless);12’’~72’’(Welded) |
|
Thickness |
Sch5S~Sch160XXS |
|
Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
|
Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
|
Nickel alloy steel |
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; |
|
Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
|
MOQ |
1pcs |
|
Delivery time |
10-100 days depending on quantity |
|
Payment terms |
T/T or Western Union or LC |
|
Shipment |
FCA Tianjin/Shanghai, CFR, CIF, etc |
|
Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
|
Remarks |
Other materials and drawings are available. |
Corrosion resistance and main operating environment:
The chemical composition of incoloy800/800h /800HT is very similar, so they all have good corrosion resistance to reduction, oxidation, nitriding medium and the corrosion resistance to REDOX alternating medium, and have high metallurgical stability in high temperature long-term application. However, due to the different contents of (Al+Ti) of the three materials, the three materials are used in different environments. Specifically, the INCOLOY 800 can display various properties at sub-zero temperature, room temperature and high temperature of 600℃. Since the content of INCOLOY 800H (Al+Ti) is not higher than 0.7%, it has good tensile strength above 600℃ and good toughness when working for a long time below 700℃. INCOLOY 800HT has excellent yield strength above 700℃.
Applications: Retort furnace and muffle furnace and heat treatment fixture and baskets, vacuum furnace equipment, the highest working temperature is 1000 degrees chloride equipment, titanium dioxide factory, retort furnace, in the process of fatty acid of heater, distiller, bubble-cap tower and condenser, sodium sulfide in the process of manufacture of the evaporator tube and tube plate and pressure plate, rosin acid in the pulp manufacturing processing equipment, etc.
