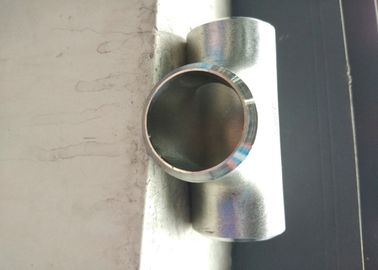

ANSI B 16.9 SCH10 Monel Alloy Steel Pipe Fittings Tee Type Customized Color

Alloy Steel Pipe Fittings 3/4'' TEE ANSI B 16.9 SCH10 Monel Alloy 400 UNS N04400

Chemical Composition, %

Corrosion Resistant Monel 400

Alloy 400 is virtually immune to chloride ion stress corrosion cracking in typical environments. Generally, its corrosion resistance is very good in reducing environments, but poor in oxidizing conditions. It is not useful in oxidizing acids, such as nitric acid and nitrous. Nevertheless, it is resistant to most alkalis, salts, waters, food products, organic substances and atmospheric conditions at normal and elevated temperatures.

This nickel alloy is attacked in sulfur-bearing gases above approximately 700° F and molten sulfur attacks the alloy at temperatures over approximately 500° F.

Monel 400 offers about the same corrosion resistance as nickel but with higher maximum working pressures and temperatures and at a lower cost due to its superior ability to be machined.

What are the characteristics of Monel 400?

· Resistant to seawater and steam at high temperatures

· Excellent resistance to rapidly flowing brackish water or seawater

· Excellent resistance to stress corrosion cracking in most freshwaters

· Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated

· Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids

· Excellent resistance to neutral and alkaline salt

· Resistance to chloride induced stress corrosion cracking

· Good mechanical properties from sub-zero temperatures up to 1020° F

· High resistance to alkalis

Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems.

Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.

Nickel Alloy 90° Elbow Outlet:

ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Momel 400), UNS 8020 (Alloy 20 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

Copper Alloy Steel 90° Elbow Outlet:

• ASTM / ASME SB 111 UNS NO.C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500
• ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Product Details:

• Types: Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
• 90° Elbow Outlet Size: 1/2” NB TO 24” NB.

• N6 pure nickel strip (UNS NO2200)

  Nickel 200 (UNS N02200/ w.r.2.4060 and 2.4066)

  Nickel 200 this alloy has the following characteristics:

  It is commercial pure nickel (99.6%).It has good mechanical properties and excellent resistance in many corrosive environments.Other useful features of the alloy include its magnetic properties, magnetostrictive properties, high thermal and electrical conductivity, low gas content and low evaporation pressure.Corrosion resistance makes it particularly useful in applications where purity is required for products such as food, synthetic fibres and caustic soda.It is also widely used in structural applications where corrosion resistance is the main consideration.Other USES include chemical transfer barrels, electrical and electronic components, aerospace and missile components.

  Metallographic structure of nickel 200:

  Nickel 200 is a solid alloy with a face-centered cubic structure.

  High temperature performance:

  Nickel 200 is generally restricted to use at less than 600°F (315°C).The graphitization of nickel 200 products will occur at high temperature, which will seriously degrade the performance of the products.

  Available products and standards:

  Landong can supply N6 nickel strip, N6 nickel sheet, N6 nickel foil, N6 nickel wire, N6 nickel tube, N6 nickel plate, N6 nickel rod, etc.Welcome to inquir

  The corrosion resistance of N4/N6 pure nickel, especially alkali corrosion resistance, is relatively stable in both high temperature and molten alkali, so it is mainly used in alkali making industry.At room temperature, nickel is extremely stable in seawater and salt solutions and in organic media such as fatty acids, phenols, alcohols, etc.It is not resistant to inorganic acids and is unstable in acetic acid and formic acid.

  Pure nickel product specification (MM) :

  Nickel strip: 0.01mm-2.0mm 1.5mm-500mm

  Nickel rod: Φ 3 - Φ 300;Length: 10mm-6 m

  Nickel plate: 2.0-50mm;Width of 1200 mm;Length is 6000 mm

  Nickel wire: 0.01 Φ Φ 3 mm

  N6 nickel strip/nickel foil

  With high quality electrolytic nickel as raw material, the purity of ** up to 99.98%, after vacuum smelting and subsequent processing into different shapes of pure metal.Pure nickel has excellent corrosion resistance, good mechanical properties, mechanical additive and welding properties. Pure nickel with different purity is mainly used in chemical, electroplating and electronic fields.The corrosion resistance is good in other reductive media except alkaline media.Compared with ni-based alloys, pure nickel has higher conductivity, thermal conductivity and plasticity.Pure nickel can be processed into products of different shapes with a density of 8.9g/cm3.

  Physical properties of N6 pure nickel:

  Density: 8.9 g/cm3

  Melting point: 1500-1600 ° C

  Tensile strength: 380rmN/MM2

  Yield strength: 100RP02N/MM2

  Elongation: 40A5%

  Standard: GB/ t2072-2007 us standard: ASTM B 162

  Supply status: soft (M state) semi-hard (1/4H, 1/2h, 3/4h) hard (H state)

  Pure nickel product specification (MM) :

  Nickel strip: 0.01mm-2.0mm 1.5mm-500mm

  Nickel rod: Φ 3 - Φ 300;Length: 10mm-6 m

  Nickel plate: 2.0-50mm;Width of 1200 mm;Length is 6000 mm

  Nickel wire: 0.01 Φ Φ 3 mm

•
