Product Details:
|
| Material: | Duplex Stainless | Grade: | S32760 |
|---|---|---|---|
| Class: | 300 | Size: | 3" |
| Type: | SO | Useage: | Oil/Water |
| High Light: | stainless steel threaded pipe,duplex ss pipe |
||
|
Standard |
Duplex Stainless Steel (S32760) |
|
UNS |
S32760 |
|
WERKSTOFF NR. |
1.4501 |

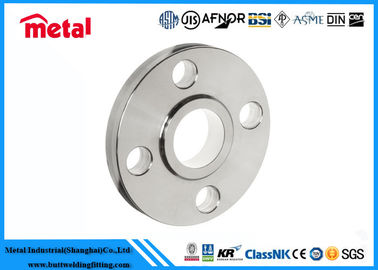

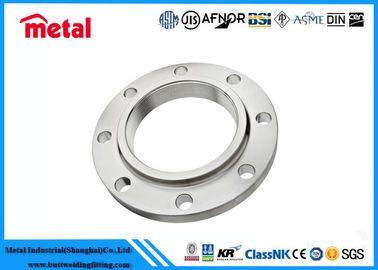

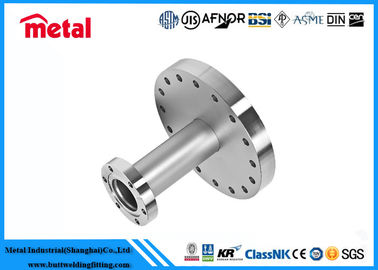

Slip-on Flange / Blind Flange/ Reducing Flange / Welding Neck Flange / Orifice Flange / Lap Joint Flange /
Threaded Flange / Socket Flange
| Grade | Cr | Ni | Cu | W | Si | Mn | Mo | N | P Max | S Max | C Max | Fe |
| S32760 | 25.5 | 6.4 | 3.5 | 0.75 | 1.00 | 1.00 | 3.5 | 0.25 | 0.030 | 0.010 | 0.030 | Bal |
| Grade | UTS N/mm2(min) | 0.20% Proolf(min) | Elong%(min) | Hardness HB (max) | PREN |
| S32760 | 750 | 550 | 25 | 270 | 40 |
| Item name | DN10-DN600 ASTM16.5 Gr2Titanium BL Flange made in china |
| Standard | ASTM 381 ,ASME/ANSI B16.5,DIN2630~2633,BS etc |
| Material | Gr1, Gr2 ,Gr5 |
| Size | 1/2''~80''(DN10~600) |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100, SCH120, SCH160, XXS |
| Pressure rating | 0.6~32Mp |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| (ASNI) CL150,CL300,CL600,CL900,CL1500 | |
| Working temperature | -60°C~250°C |
| Application |
1.Chemical industry 2. Petrochemical industry 3. Machining field,Automobile field,etc 4. Desalination of sea water 5. Textile printing and dyeing 6. Mobile phone component field |
| Material |
Carbon steel(ASTM A105,A350LF2,A350LF3,) Stainless steel(ASTM A182 F304, F304L,F316,F316L,F321, F347,F310F44F51,A276 S31803, A182, F43, A276 S32750,A705 631,632,A961, A484, Alloy steel(ASTM A694 F42,F46,F52,F56,F60,F65,F70, A182 T91 (P91) F12,F11,F22,F5,F9,F91,F1ECT) |
| Standard | DIN,EN,ASTM,BS,JIS,GB,ASME(ASME16.9/16.20) |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
