Product Details:
|
| Model Number: | Reducing Threaded Flange | Brand Name: | TOBO |
|---|---|---|---|
| Standard: | ASME | Product Type: | ASME B16.5 LJ RF Flange |
| Manufacturing Tecique: | Forging | Connection Type: | Bolt Fastening |
| High Light: | nickel alloy tube,seamless alloy pipe |
||
Related introduction of ASME B16.5 thread reducing threaded flange NPT
1) Application: Used for the connection between the tube end in chemical, construction, water supply, drainage, oil and gas, light and heavy industrial, refrigeration, sanitation, plumbing, fire protection, electrical, aerospace, shipbuilding and other infrastructure projects
2) Type: Welding Neck(WN), Plate(PL), Slip On(SO), Blind(BL), Socket Welding(SW), Threaded(TH), Lap Joint(LJ), Long Welding Neck(LWN)
3) Widely Used Material For ASME B16.5 LJ RF Flange
Stainless Steel: A182 F304/310/316/317/321/347
Carbon Steel: A105
Alloy Steel: A182 F5/F9/F11/F22/F51/F53 INCONEL600 625 825
4) Common Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 | LONG WELDING NECK FLANGES B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASME B16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 | PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 | SO.WN,SW,TH,LJ,BL |
1). Flange protective sleeve for each flange
2). Cardboard between each layer
3). Plywood case

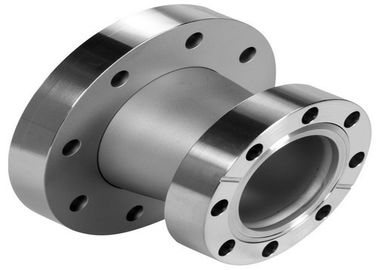

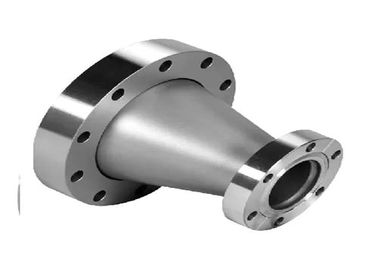

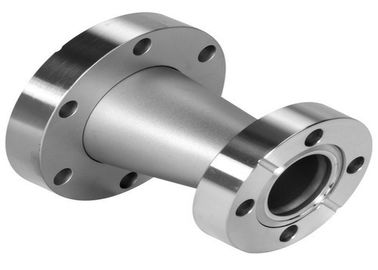

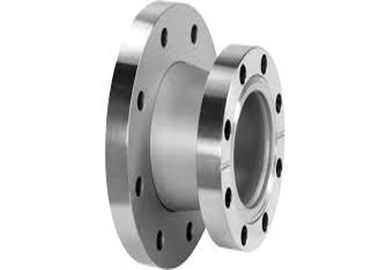

PRODUCT SHOW
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
