1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B

1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B
1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B 1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B 1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B 1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B

Large Image :  1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B

Product Details:
Place of Origin: china
Brand Name: tobo
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Payment Terms: T/T

1 - 48 Inch Cap Alloy Steel Pipe Fittings / Butt Weld Pipe Fittings ASME B16.9 16 BAR CuNI 90 10 B

Description

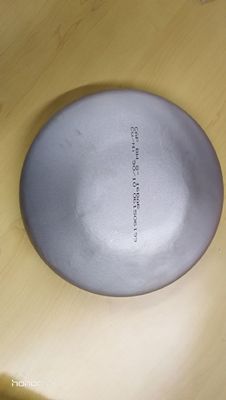

Product Name: Cap Material: CuNI 90 10
Type:: Weld Standard: ASME B16.9
Pressure:: 16 Bar Diameter: 8"
High Light:

butt weld pipe fittings

,

alloy pipe fittings



Product Name:Cap 1-48 Inch ASME B16.9 16 BAR CuNI 90 10 BW Butt Weld Pipe Fittings

Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements

Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,

Inspection & Test

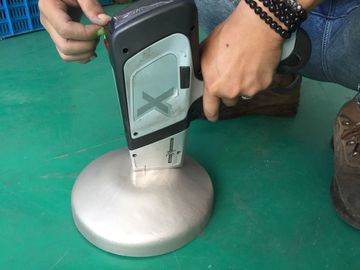

1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material

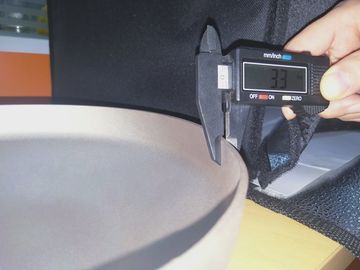

2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8 .Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION
