Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube

Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube
Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube

Large Image :  Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube

Product Details:
Place of Origin: Shanghai
Brand Name: TOBO
Certification: SGS,API,ISO
Model Number: TA-P009
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Wooden case or carton case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month

Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube

Description
Type: Titanium Pipes Technique: Seamless
Shape: Round Stock: Yes
Surface: Polished Service: OEM, ODM
High Light:

titanium exhaust tubing

,

bending titanium tubing

ASTM B861 Grade 1 Seamless Titanium Alloy Pipe for Dimensional Stable Anodes



Product Description



Basic information

Titanium is the fourth most abundant structural metal in the earth's crust and is the ninth industrial metal. Due to its unprecedented strength, lightness, stable market and non-corrosive characteristics, titanium has emerged as the metal of choice for aerospace, industry and medical, leisure and consumer products, notably golf clubs and bicycle frames

NAME Medical Titanium Tube ASTM B136 titanium alloy pipe
STANDARD ASTM B338,ASTM B861
CERTIFICATION ISO9001:2015
Outer Diameter 6mm - 89mm
Wall thickness 0.3-2.0mm
Grade Titanium Gr1, Titanium Gr2
Application MVR(Mechanical Vapor Recompression), Heat Exchanger, Condenser, Heating
Elements, WESP(Wet Electro Static Precipitator)
MOQ 10KGS
Delivery time Winthin 25 days after receiving deposit
Payment term T/T,L/C, Paypal
Supply ability 300tons per month
Packing Export standard package with polywood case or ISPM 15 stamped wooden case



Applications
Chemical industry
Blades,discs,rings,airframes,fasteners,components.
Vessels,cases,hubs,forgings.Biomedical implants





Tensile Requirements
Grade Elongation(%) Tensile Strength (Min) Yield Strength (Min)
ksi Mpa ksi Mpa
Gr1 24 35 240 20 138
Gr2 20 50 345 40 275
Gr3 18 65 450 55 380
Gr4 15 80 550 70 483
Gr5 10 130 895 120 828
Gr7 20 50 345 40 275
Gr9 15 90 620 70 438
Gr12 18 70 438 50 345





Features of Titanium

1). High tensile strength;
2). High corrosion resistance;
3). Low density, good thermal stability;
4). Non-ferromagnetic;
5). Good biocompatibility;
6). High temperature and low temperature resistance;
7). High resistance to strong acid and srong alkali and so on.





Titanium Alloy GR.5 Chemiacl Composition(%)

Alloy Designation Element O V Fe Al Ti
Titanium Alloy GR.7 Max.% 0.2 4 0.25 6 90
Mechanical Propeties Titanium Alloy GR.5
Density 4.43g/cm3
Melting Point 1604~1660ºC
Tensile Strength Min (Mpa) 950Mpa
Yield Strength Min (Mpa):0.2% offset 880Mpa
Elongation A 5%(Min.) 65/40
HB Max 334



Extensive applications

1.electrodes in electrolytic industrial
2.condensor for power station
3.heater in petroleum refining and sea water desalination
4.for air pollution control device
5.aviation and aerospace
6.hydrogen storage materials
7.anticorrosive construction materials
8.shape memort alloy





Process methods: cold rolling

Surface delivery conditon:solution annealed and pickled or polished

Length:Max15 meters

Packing: in seaworthy wooden cases or in wooden box

MOQ:100KGS each size

Delivery date: Min. 10 days

Certificates: ISO9001:2000 quality system and Mill test Certificate supplied

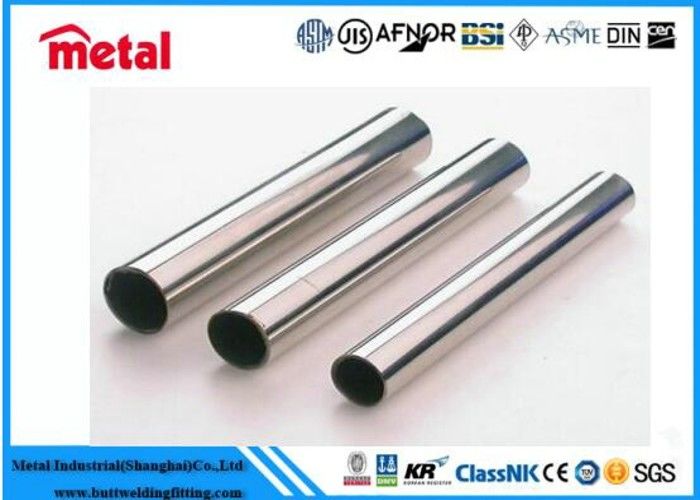

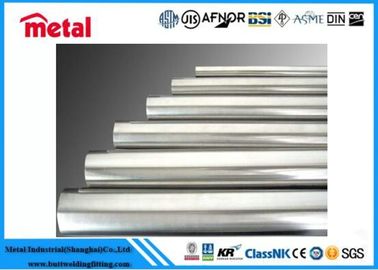

Product preview

Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube 0Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube 1







Company introduction


Shanghai TOBO GROUP has been engaged in flanges, piep fittings more than 7 years. Our experiecnced and professional team of bending, and full tools and equipments make us provide customers almost all kind of metal U-bent tubes with high quality. With our unique manufacturing capabilities, Shang Hai TOBO GROUP also supply customer with value-added service.



Certificates
Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube 2

Packing


Standard export packing, seaworthy packing, bundles, plastic bag, woven bag, wooden cases, plywood case, iron case, or as per customer require
We will reply you in 24 hours. Please remember check your inbox.

Welcome to inquiry. Looking forward to cooperating with you in the near future.



Transportation
Dimensional Stable Anodes Seamless Steel Tube , Grade 1 Titanium Suppressor Tube 3





Our Service For You

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for your choices.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have 8 year experience of design, manufacture and sell lingerie, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale choose

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone



FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
