Product Details:
|
| Product Name: | U-bent Tubes | Material: | UNS N06600 |
|---|---|---|---|
| Standard: | ASTM/ASME | Section Shap: | Round/Square/rectangular |
| Inspection: | AS Per Client Spec | Technique: | Hot Rolled |
| High Light: | u shaped metal pipe,u shaped exhaust pipe |
||

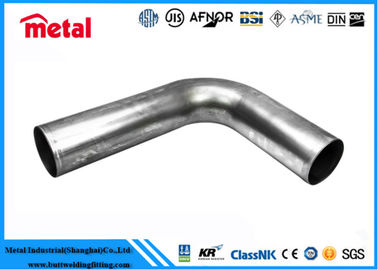

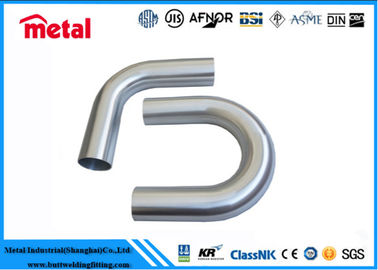

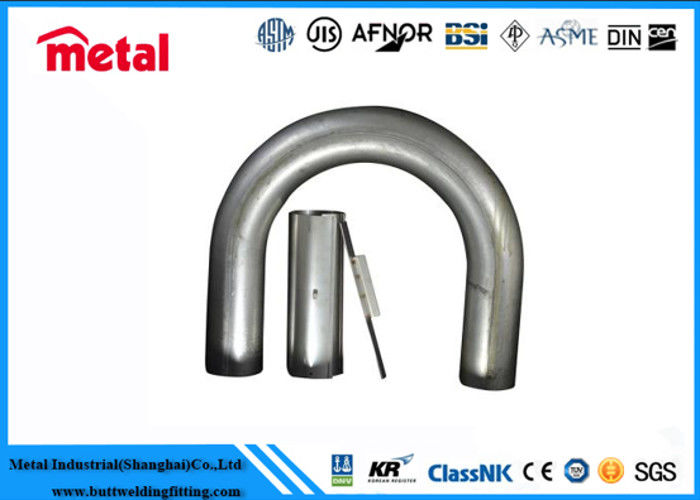

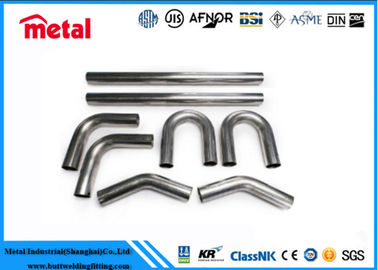

UNS N06600 U-bent Tubes U Fin Tube A/SA163 Seamless U-bent Tubes
U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm
U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request
U bend Pipe Bending radius
Minimum: 1.5×OD
Maximum: 1500 mm
Stainless Steel Tubes Size for Heat Exchanger
| Inches | Decimal | Millimeters |
| 1/16″ | .0625 | 1.59 mm |
| 1/8″ | .1250 | 3.18 mm |
| 3/16″ | .1875 | 4.76 mm |
| 1/4″ | .2500 | 6.35 mm |
| 5/16″ | .3125 | 7.94 mm |
| 3/8″ | .3750 | 9.53 mm |
| 7/16″ | .4375 | 11.11 mm |
| 1/2″ | .5000 | 12.70 mm |
| 9/16″ | .5625 | 14.29 mm |
| 5/8″ | .6250 | 15.88 mm |
| 11/16″ | .6875 | 17.46 mm |
| 3/4″ | .7500 | 19.05 mm |
| 13/16″ | .8125 | 20.64 mm |
| 7/8″ | .8750 | 22.23 mm |
| 15/16″ | .9375 | 23.81 mm |
| 1″ | 1.00 | 25.40 mm |
| 1 1/4″ | 1.25 | 31.75 mm |
| 1 1/2″ | 1.50 | 38.10 mm |
| 2″ | 2.00 | 50.80 mm |
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
Advanced capabilities for U-bent tubes:
Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L
Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6
Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750
Copper Nickel
C70600(90:10), C71500(70:30), C71640.
2) U Bend Tube Minimum tube wall thickness in the bend part (T min)T(min) ≥ (SW × (2×R + D))/( 2× (R+D)
where: SW is smallest wall thickness
D Nominal outside diameter
R radius
3) U Bend Tube Radius tolerance
1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm
4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis
U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm
U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request
Packing and Shipping
Package:Standard export carton packing.
Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to
production season and order quantity.
